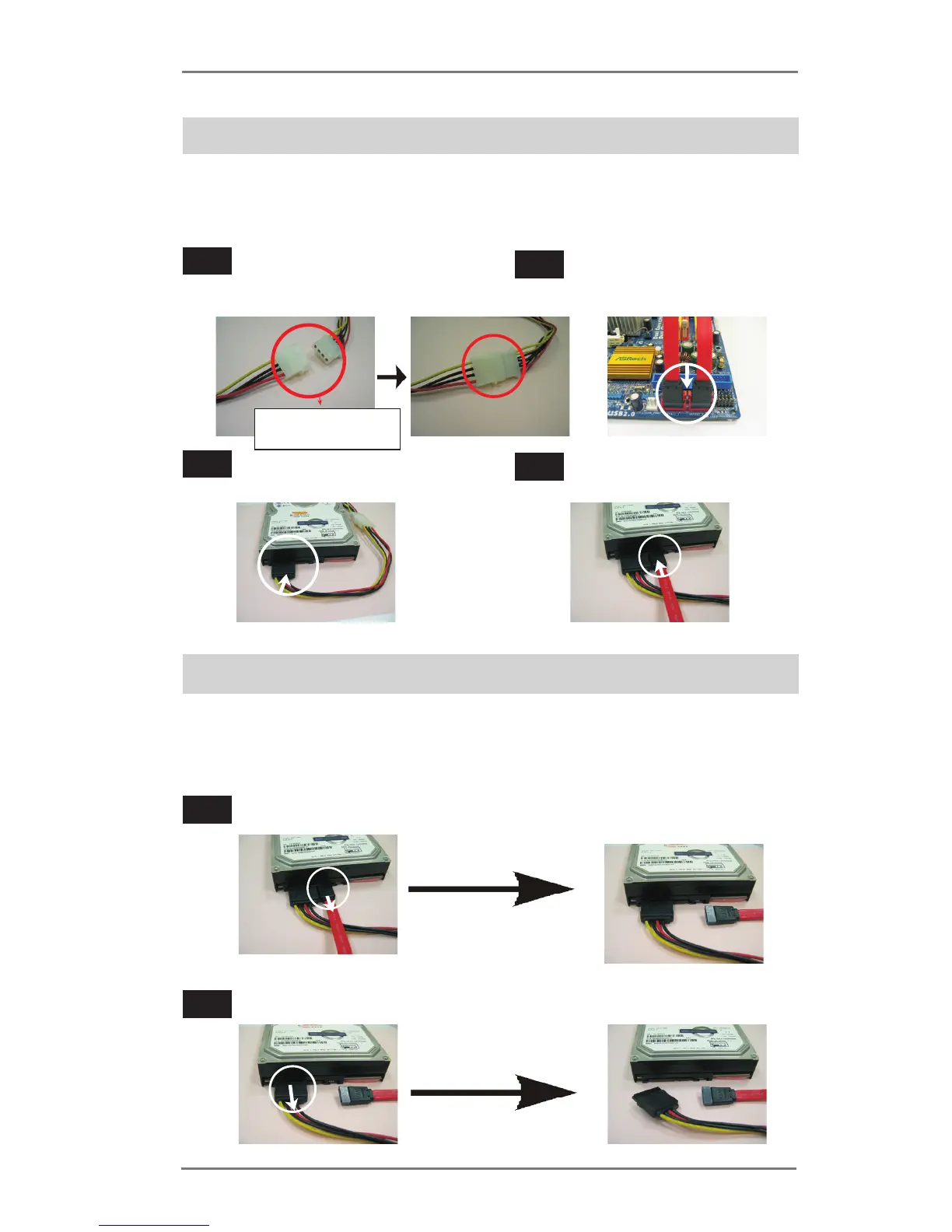

How to Hot Plug a SATA3 HDD:
Points of attention, before you process the Hot Plug:
Please do follow below instruction sequence to process the Hot Plug, improper
procedure will cause the SATA3 HDD damage and data loss.
Connect SATA 15-pin power cable
connector (Black) end to SATA3 HDD.
How to Hot Unplug a SATA3 HDD:
Points of attention, before you process the Hot Unplug:
Please do follow below instruction sequence to process the Hot Unplug, improper
procedure will cause the SATA3 HDD damage and data loss.
Please connect SATA power cable 1x4-pin
end (White) to the power supply 1x4-pin
cable.
Step 1
Step 2
Step 4
Step 2
SATA power cable 1x4-pin
power connector (White)
Unplug SATA data cable from SATA3 HDD side.
Unplug SATA 15-pin power cable connector (Black) from SATA3 HDD side.
Step 1
Connect SATA data cable to the
SATA3 HDD.
Step 3
Connect SATA data cable to
the motherboard’s SATAII / SATA3
connector.
