3
English
E3V5 WS

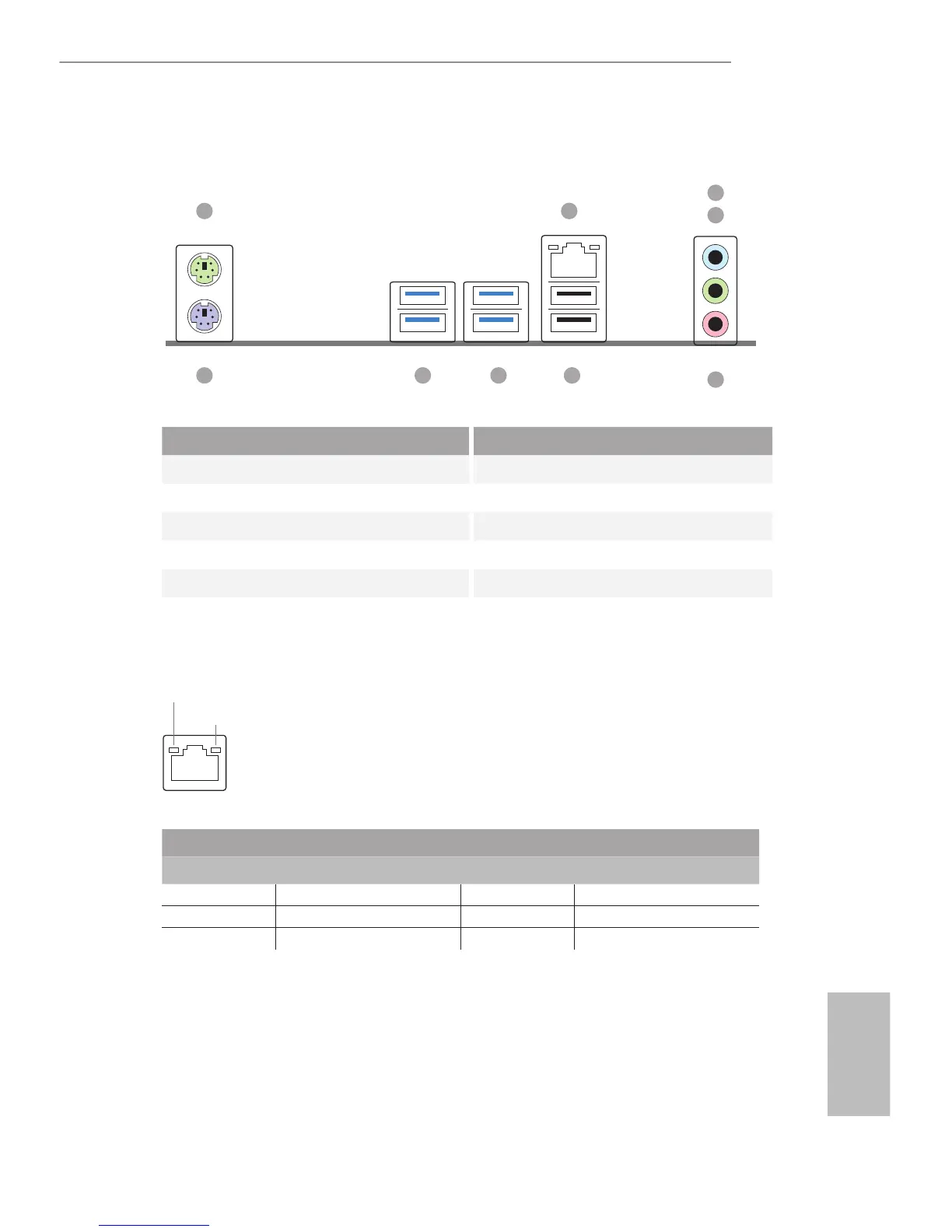

I/O Panel
No. Description No. Description
1 PS/2 Mouse Port 6 USB 2.0 Ports (USB_01)
2 LAN RJ-45 Port* 7 USB 3.0 Ports (USB3_23)
3 Line In (Light Blue) 8 USB 3.0 Ports (USB3_01)
4 Front Speaker (Lime)** 9 PS/2 Keyboard Port
5 Microphone (Pink)
* ere are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
1
9
678
2
5
4
3
