ASROCK Fatal1ty 970 Performance/3.1 Series Manual

21
English
Fatal1ty 970 Performance/3.1 Series

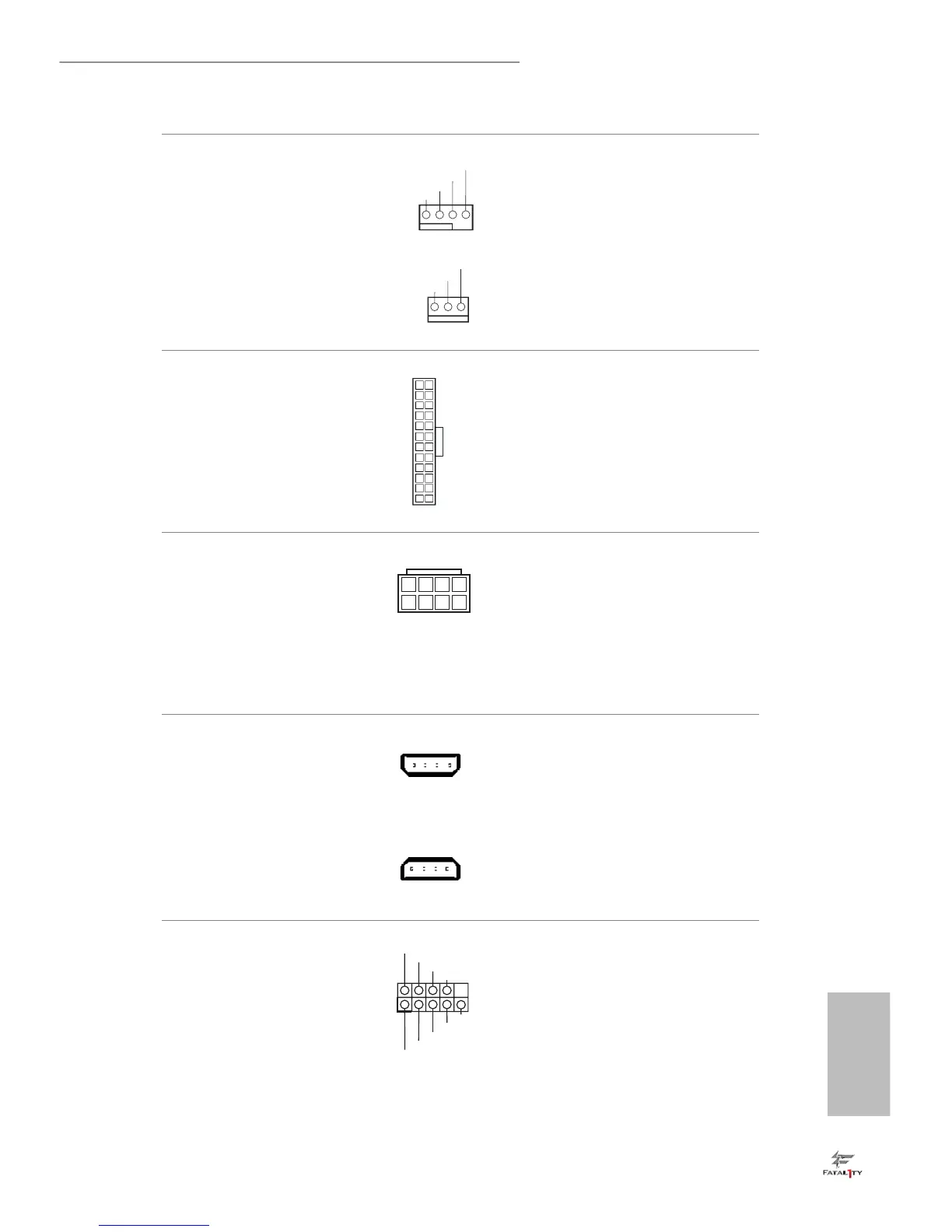

CPU Fan Connectors
(4-pin CPU_FAN1)
(see p.1, No. 4)
(3-pin CPU_FAN2)
(see p.1, No. 3)
is motherboard pro-
vides a 4-Pin CPU fan
(Quiet Fan) connector.
If you plan to connect a
3-Pin CPU fan, please
connect it to Pin 1-3.
ATX Power Connector
(24-pin ATXPWR1)
(see p.1, No. 8)
is motherboard pro-
vides a 24-pin ATX power
connector. To use a 20-pin
ATX power supply, please
plug it along Pin 1 and Pin
13.
ATX 12V Power
Connector
(8-pin ATX12V1)
(see p.1, No. 1)
is motherboard pro-
vides an 8-pin ATX 12V
power connector. To use a
4-pin ATX power supply,
please plug it along Pin 1
and Pin 5.
PCIe Power Connectors
(4-pin SLI/XFIRE_
PWR1)
(see p.1, No. 26)
(4-pin PCIE_PWR1)
(see p.1, No. 29)
Please connect this
connector with a hard
disk power connector
when three graphics
cards are installed on this
motherboard.
Serial Port Header
(9-pin COM1)
(see p.1, No. 27)
is COM1 header
supports a serial port
module.
12
1
24
13
4 1
8 5
GND
FAN_VOLTAGE
FAN_SPE ED
FAN_SPEED
FAN_SPEED_CONTROL
GND
+12V
1 2 3 4
CCTS#1
RRTS#1
DDSR#1
DDTR#1
RRXD1
GND
TTXD1
DDCD#1
1
RRI#1

ASROCK Fatal1ty 970 Performance/3.1 Series Specifications

General

CPU Socket	AM3+
Chipset	AMD 970 + SB950
Memory Slots	4 x DDR3 DIMM
Max Memory	64GB
Storage Interface	6 x SATA3 6.0 Gb/s
Form Factor	ATX
Expansion Slots	2 x PCIe 2.0 x16, 2 x PCIe 2.0 x1
USB Ports	8 x USB 2.0
Audio	Realtek ALC1150
LAN	Gigabit LAN 10/100/1000 Mb/s (Realtek RTL8111GR)
