ASROCK Fatal1ty 970 Performance/3.1 Series Manual

22
English

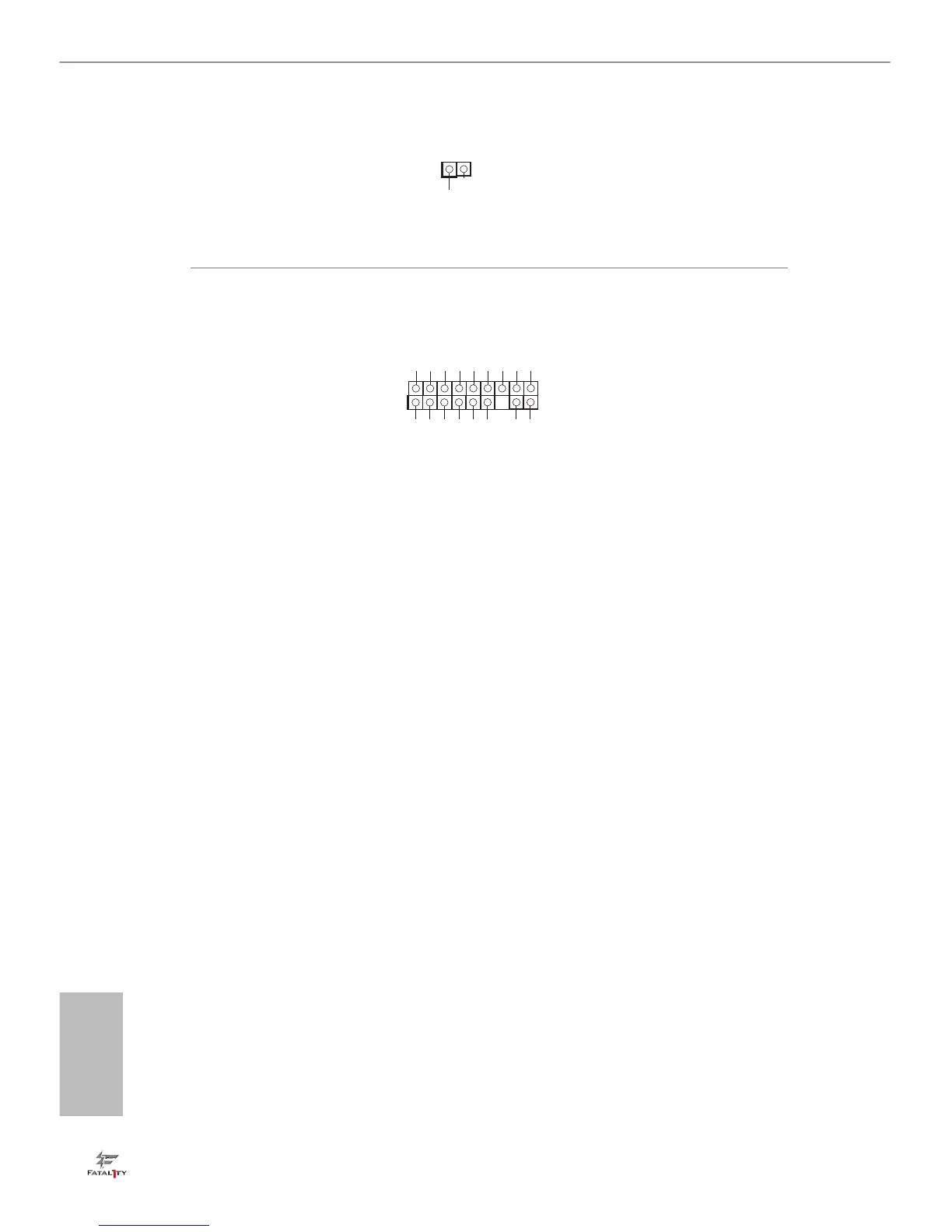

SPDIF Out Connector
(2-pin SPDIF_OUT1)
(see p.1, No. 28)
Please connect the
SPDIF_OUT connector of
a HDMI VGA card to this
header with a cable.
TPM Header
(17-pin TPMS1)
(see p.1, No. 22)
is connector supports
Trusted Platform Module
(TPM) system, which can
securely store keys, digital
certicates, passwords,
and data. A TPM system
also helps enhance
network security, protects
digital identities, and
ensures platform integrity.
SPDI FOUT
GND
1
1
GND SMB_DATA_MA IN
LAD2
LAD1
GND
S_PWRDWN#
SERIRQ#
GND
PCICLK
PCIRST#
LAD3
+3V
LAD0
+3VSB
GND
FRAME
SMB_CLK_MAI N

ASROCK Fatal1ty 970 Performance/3.1 Series Specifications

General

CPU Socket	AM3+
Chipset	AMD 970 + SB950
Memory Slots	4 x DDR3 DIMM
Max Memory	64GB
Storage Interface	6 x SATA3 6.0 Gb/s
Form Factor	ATX
Expansion Slots	2 x PCIe 2.0 x16, 2 x PCIe 2.0 x1
USB Ports	8 x USB 2.0
Audio	Realtek ALC1150
LAN	Gigabit LAN 10/100/1000 Mb/s (Realtek RTL8111GR)
