ASROCK Fatal1ty 970 Performance/3.1 Series Manual

23
English
Fatal1ty 970 Performance/3.1 Series

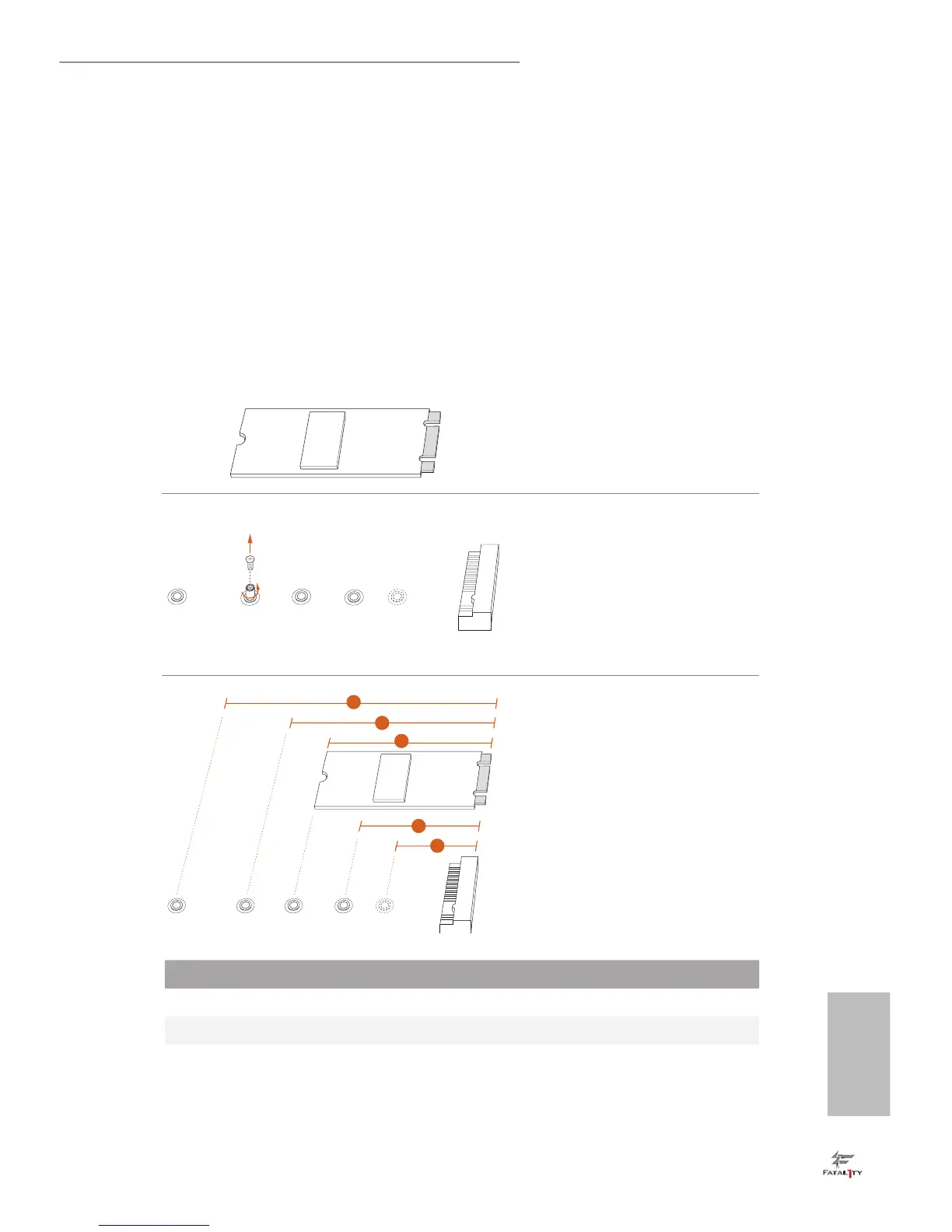

2.7 M.2_SSD (NGFF) Module Installation Guide
The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and
versatile card edge connector that aims to replace mPCIe and mSATA. The M.2_SSD
(NGFF) Socket 3 can accommodate either a M.2 SATA3 6.0 Gb/s module or a M.2 PCI
Express module up to Gen 2 x4 (20 Gb/s). Please be noted that the M.2_SSD (NGFF)
Socket 3 is shared with the SATA3_0 connector; you can only choose either the M.2_SSD
(NGFF) Socket 3 or the SATA3_0 connector to use.
Installing the M.2_SSD (NGFF) Module
Step 1
Prepare a M.2_SSD (NGFF) module.
BCDE
A
Step 2
Uninstall the screw knob and the
standoff counterclockwise for later
use.
3
2
4
5
BCDE
A
1
Step 3
Depending on the PCB length of
your M.2_SSD (NGFF) module, nd
the corresponding NUT location to
be used.
No. 1 2 3 4
Location NUT1 NUT2 NUT3 NUT4
PCB Length 4.2cm 6cm 8cm 11cm
Module Type Type 2242 Type2260 Type 2280 Type 22110

ASROCK Fatal1ty 970 Performance/3.1 Series Specifications

General

CPU Socket	AM3+
Chipset	AMD 970 + SB950
Memory Slots	4 x DDR3 DIMM
Max Memory	64GB
Storage Interface	6 x SATA3 6.0 Gb/s
Form Factor	ATX
Expansion Slots	2 x PCIe 2.0 x16, 2 x PCIe 2.0 x1
USB Ports	8 x USB 2.0
Audio	Realtek ALC1150
LAN	Gigabit LAN 10/100/1000 Mb/s (Realtek RTL8111GR)
