ASROCK Fatal1ty 970 Performance/3.1 Series Manual

3
English
Fatal1ty 970 Performance/3.1 Series

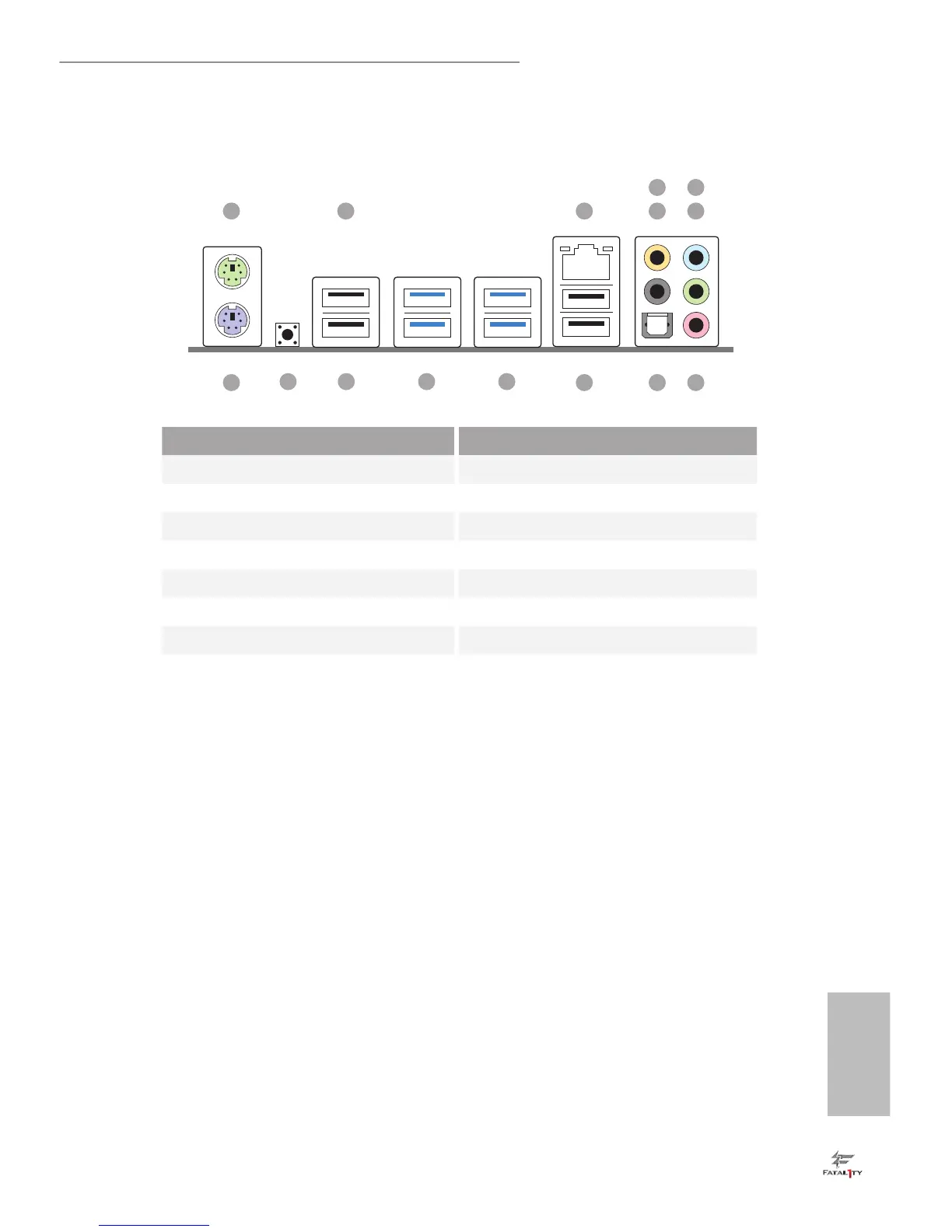

I/O Panel
No. Description No. Description
1 PS/2 Mouse Port 9 Optical SPDIF Out Port
2 Fatal1ty Mouse Port (USB_2) 10 USB 2.0 Ports (USB01)
3 LAN RJ-45 Port* 11 USB 3.0 Ports (USB3_34)
4 Central / Bass (Orange) 12 USB 3.0 Ports (USB3_12)
5 Rear Speaker (Black) 13 USB 2.0 Ports (USB_3)
6 Line In (Light Blue) 14 Clear CMOS Switch
7 Front Speaker (Lime)** 15 PS/2 Keyboard Port
8 Microphone (Pink)
1
13 1112
3 5
8915 10
4
7
6
14
2

ASROCK Fatal1ty 970 Performance/3.1 Series Specifications

General

CPU Socket	AM3+
Chipset	AMD 970 + SB950
Memory Slots	4 x DDR3 DIMM
Max Memory	64GB
Storage Interface	6 x SATA3 6.0 Gb/s
Form Factor	ATX
Expansion Slots	2 x PCIe 2.0 x16, 2 x PCIe 2.0 x1
USB Ports	8 x USB 2.0
Audio	Realtek ALC1150
LAN	Gigabit LAN 10/100/1000 Mb/s (Realtek RTL8111GR)
