ASROCK Fatal1ty 990FX Killer Quick Installation Guide

Fatal1ty 990FX Killer Series
1
English

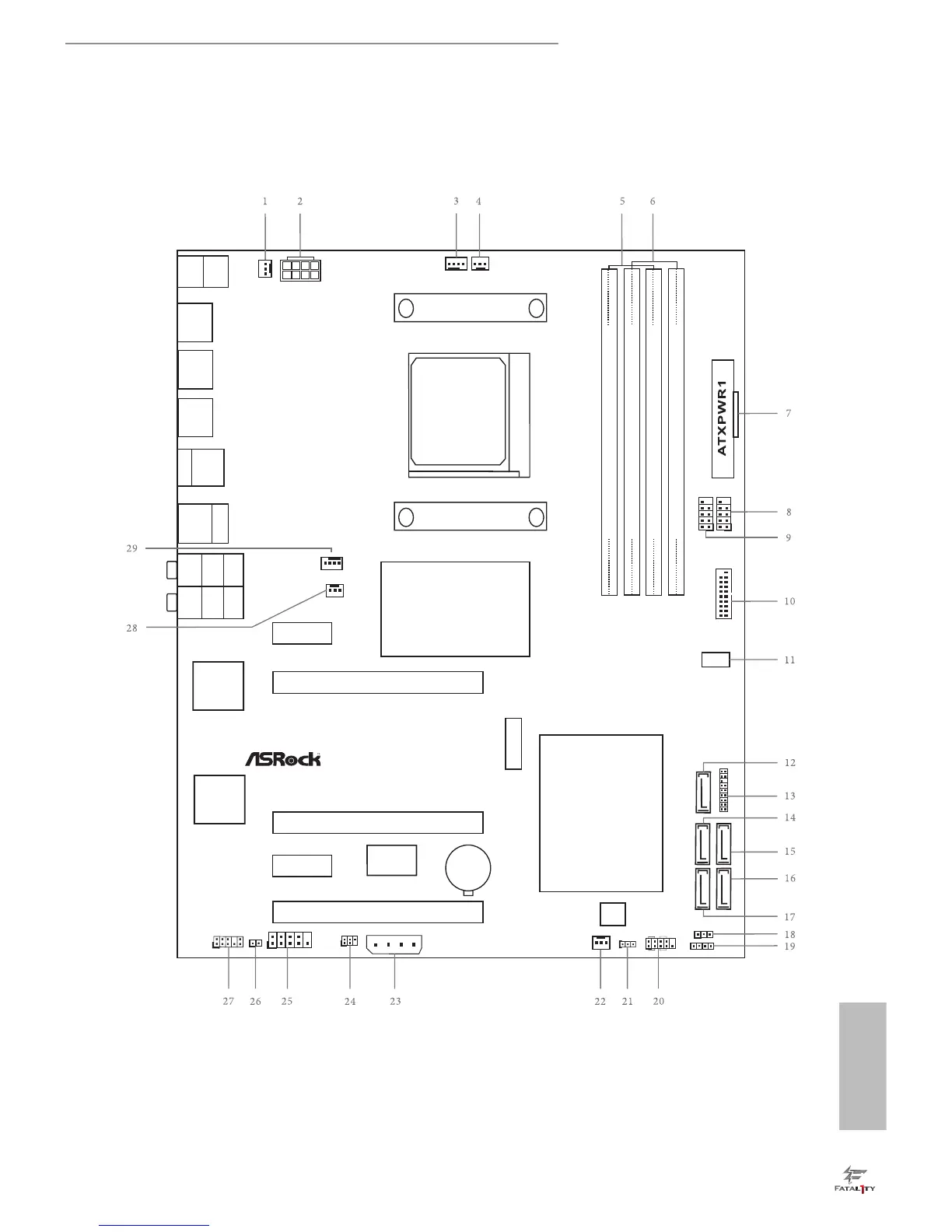

Motherboard Layout
FSB800
DDR3_A1 (64 bit, 240-pin module)
DDR3_A2 (64 bit, 240-pin module)
FSB800
DDR3_B1 (64 bit, 240-pin module)
DDR3_B2 (64 bit, 240-pin module)
AMD
SB950
Chipset
32Mb
BIOS
CMOS
BATTERY
CLR CM O S1
1
COM 1
1
Super
I/O
IR1
1
HD_ AU D IO 1
1
PCIE1
HDL ED R ESE T
PLE D PWR BTN
1
PANE L 1
SPE AK E R1
1
PCIE2
1
PLE D1
USB 8_9
CPU_FA N1
AMD
990FX
Chipset
PS2
Mouse
PS2
Keyboard
Top:
RJ-45
USB 2.0
T: USB4
B: USB5
1
CHA_FA N3
990FX KILLER
RoHS
CPU_FA N2
USB3_5_6
SOCKET AM3b
CHA_FA N2
CHA_FA N1
PWR_FA N1
USB 2.0
T: USB2
B: USB 3
eSATA
ATX12V1
USB 2.0
T: USB0
B: USB1
FATAL TY 1
PCIE3
PCIE5
PCIE4
Purity
Sound
TM
Killer
E2200
SATA3 _1
SATA3 _2
SATA3 _3
SATA3 _4
SATA3 _5
1
SPD IF_ OU T1
SLI/X FI RE _PWR1
M.2_SSD1
USB 6_7
1
Vertical
Type A USB
USB 3_7
TPM S1
1
USB 3.0
T: USB1
B: USB2
USB 3.0
T: USB3
B: USB4
Top:
Central/Bass
Center:
REAR SPK
Top:
LINE IN
Center:
FRONT
Bottom:
Optical
SPDIF
Bottom:
MIC IN

ASROCK Fatal1ty 990FX Killer Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	1066, 1333, 1600, 2100, 2450 MHz
System bus rate	5.2 GT/s
Processor socket	Socket AM3+
Processor manufacturer	AMD
Compatible processor series	AMD Phenom II X2, AMD Phenom II X3, AMD Phenom II X4, AMD Phenom II X6
Processor thermal power (max)	140 W
Processor system buses supported	2600 MHz
USB 2.0 connectors	2
Number of COM connectors	1
Number of SATA connectors	5
Number of Parallel ATA connectors	0
RAID levels	0, 1, 0+1, 5, JBOD
Supported storage drive interfaces	SATA III
USB 2.0 ports quantity	6
Ethernet interface type	Gigabit Ethernet
Audio chip	Realtek ALC1150
Cooling type	Passive
Certification	FCC, CE, WHQL, ErP, EuP
Component for	PC
Motherboard chipset	AMD 990FX
PC health monitoring	FAN, Temperature
Audio output channels	7.1 channels
Motherboard form factor	ATX
Motherboard southbridge	AMD SB950
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
On-board graphics card	No
Parallel processing technology support	3-Way CrossFireX, Quad-GPU CrossFireX, Quad-GPU SLI
PCI Express x16 (Gen 2.x) slots	3
BIOS type	UEFI AMI
ACPI version	1.1
BIOS memory size	64 Mbit
Trial software	Start8
Cables included	SATA
Bundled software	Google Chrome, XSplit, Killer Network Manager
