ASROCK Fatal1ty 990FX Killer Quick Installation Guide

73
Español
Fatal1ty 990FX Killer Series

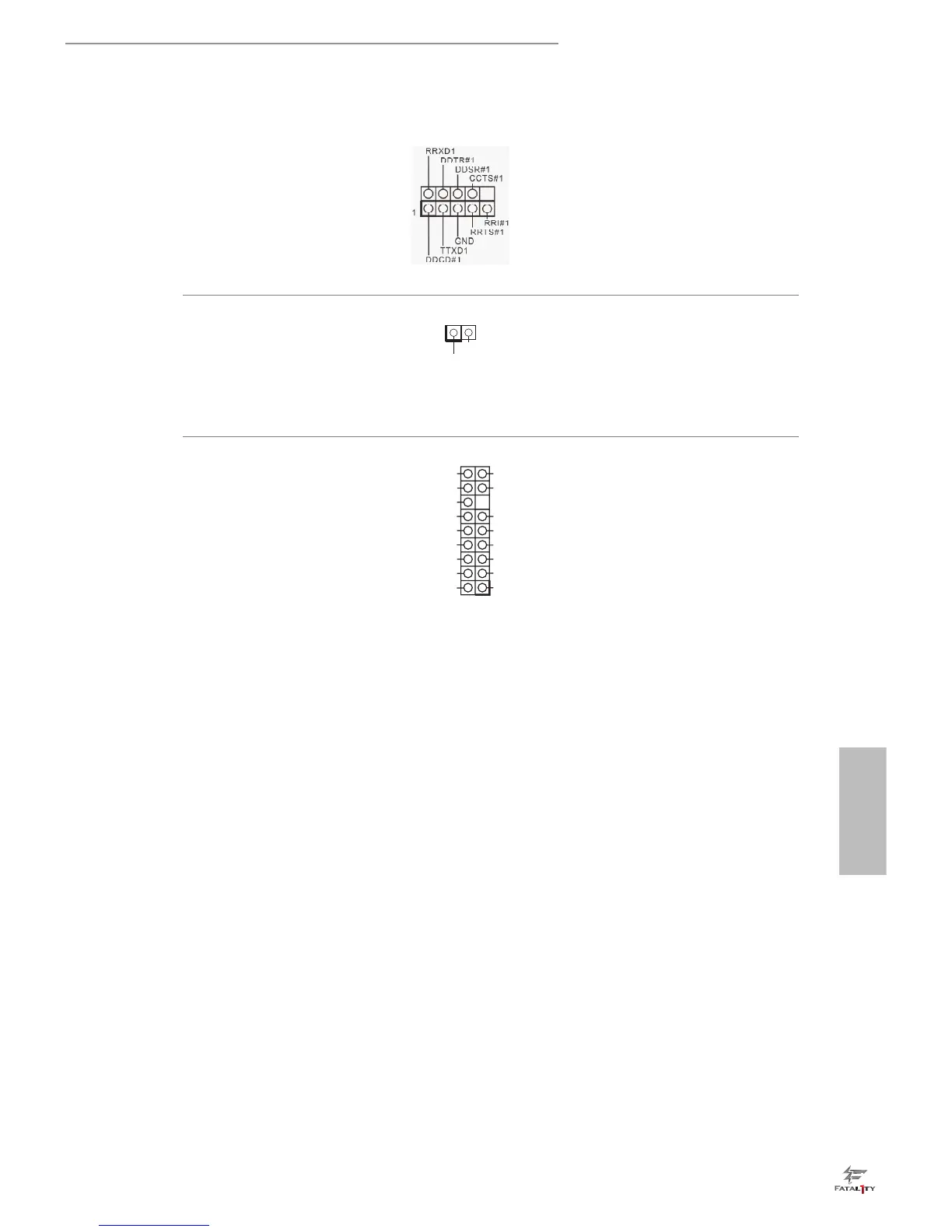

Cabezal de puerto serie
(COM1 de 9 pines)
(consulte la pág.1, N.º 25)
Este cabezal COM1
admite un módulo de
puerto serie.
Conector de salida SPDIF
(SPDIF_OUT1 de 2 pines)
(consulte la pág.1, N.º 26)
Conecte el conector
SPDIF_OUT de una
tarjeta VGA HDMI a este
cabezal con un cable.
Cabezal TPM
(TPMS1 de 17 pines)
(consulte la pág.1, N.º 13)
Este conector es
compatible con el sistema
Módulo de Plataforma
Segura (TPM, en inglés),
que puede almacenar
de forma segura claves,
certicados digitales,
contraseñas y datos. Un
sistema TPM también
ayuda a aumentar la
seguridad en la red,
protege identidades
digitales y garantiza
la integridad de la
plataforma.
SPDIFO U T
GND
1
1
LFR AME#_L
CK_ 33M_TPM
TPM_RST#
LAD 3_L
+3V
LAD 0_L
+3V SB
GNDF_CLKRUN#
SER IRQ#
S_P WRDWN#
GND
LAD 1_L
LAD 2_L
SMB _DATA_M AIN
SMB _CLK_MAIN
GND

ASROCK Fatal1ty 990FX Killer Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	1066, 1333, 1600, 2100, 2450 MHz
System bus rate	5.2 GT/s
Processor socket	Socket AM3+
Processor manufacturer	AMD
Compatible processor series	AMD Phenom II X2, AMD Phenom II X3, AMD Phenom II X4, AMD Phenom II X6
Processor thermal power (max)	140 W
Processor system buses supported	2600 MHz
USB 2.0 connectors	2
Number of COM connectors	1
Number of SATA connectors	5
Number of Parallel ATA connectors	0
RAID levels	0, 1, 0+1, 5, JBOD
Supported storage drive interfaces	SATA III
USB 2.0 ports quantity	6
Ethernet interface type	Gigabit Ethernet
Audio chip	Realtek ALC1150
Cooling type	Passive
Certification	FCC, CE, WHQL, ErP, EuP
Component for	PC
Motherboard chipset	AMD 990FX
PC health monitoring	FAN, Temperature
Audio output channels	7.1 channels
Motherboard form factor	ATX
Motherboard southbridge	AMD SB950
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
On-board graphics card	No
Parallel processing technology support	3-Way CrossFireX, Quad-GPU CrossFireX, Quad-GPU SLI
PCI Express x16 (Gen 2.x) slots	3
BIOS type	UEFI AMI
ACPI version	1.1
BIOS memory size	64 Mbit
Trial software	Start8
Cables included	SATA
Bundled software	Google Chrome, XSplit, Killer Network Manager
