ASROCK Fatal1ty Z97X Killer Series User Manual

Fatal1ty Z97X Killer Series
97
English

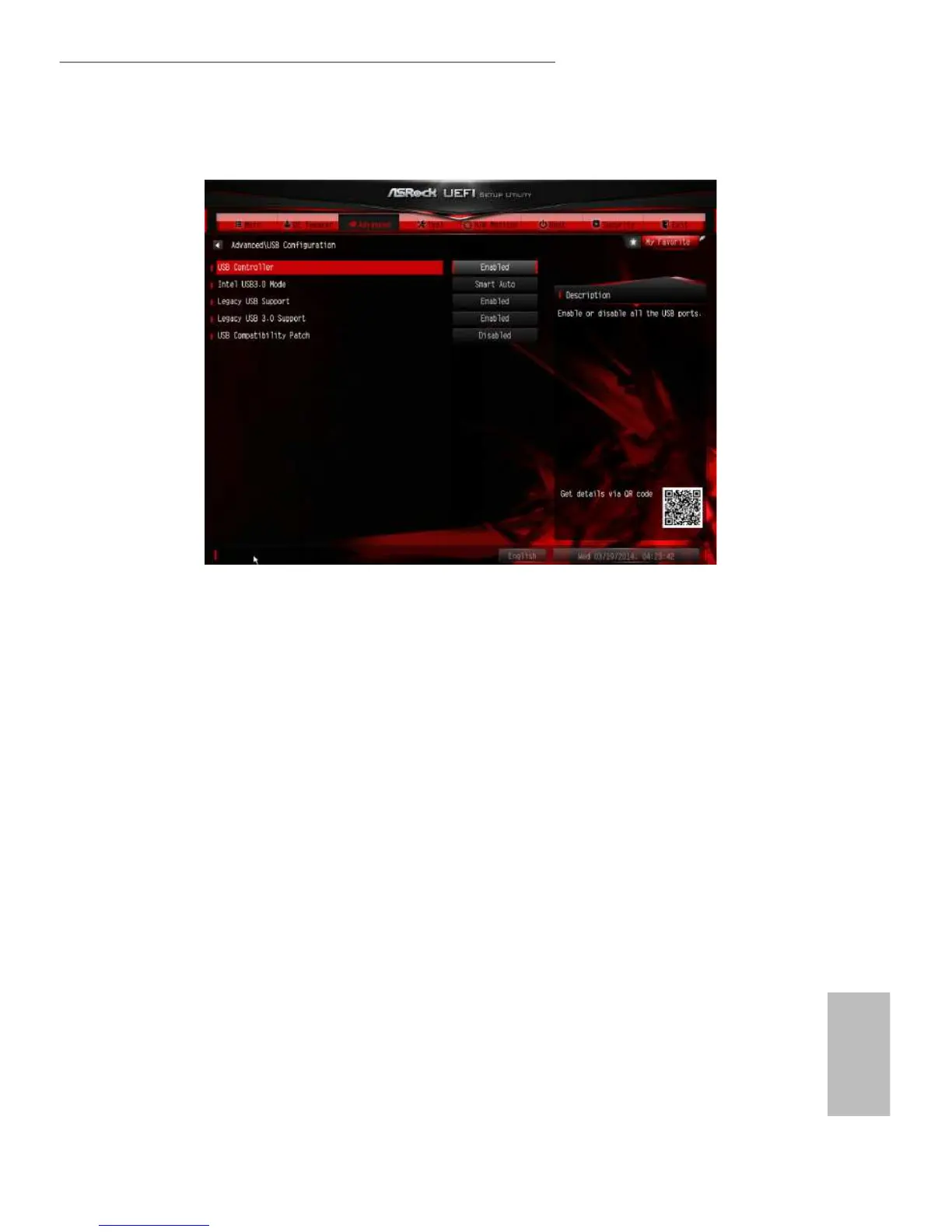

4.4.8 USB Conguration
USB Controller
Enable or disable all the USB ports.
Intel USB 3.0 Mode
Select Intel® USB 3.0 controller mode. Set [Smart Auto] to keep the USB 3.0 driver
enabled aer rebooting (USB 3.0 is enabled in BIOS). Set [Auto] to automatically
enable the USB 3.0 driver aer entering the OS (USB 3.0 is disabled in BIOS). Set
[Enabled] to keep the USB 3.0 driver enabled (Must install driver to use USB devices
under Windows® 7). Set [Disabled] to disable the USB 3.0 ports.
Legacy USB Support
Enable or disable Legacy OS Support for USB 2.0 devices. If you encounter USB
compatibility issues it is recommended to disable legacy USB support. Select UEFI
Setup Only to support USB devices under the UEFI setup and Windows/Linux
operating systems only.
Legacy USB 3.0 Support
Enable or disable Legacy OS Support for USB 3.0 devices. If you encounter USB
compatibility issues it is recommended to disable legacy USB support. Select UEFI
Setup Only to support USB devices under the UEFI setup and Windows/Linux
operating systems only.

ASROCK Fatal1ty Z97X Killer Series Specifications

General

Chipset	Intel Z97
Socket	LGA 1150
Memory Slots	4 x DIMM
Max Memory	32GB
Form Factor	ATX
Audio	Realtek ALC1150
PCI Express 3.0 x16	1
PCI Express 2.0 x16	1
PCI Express 2.0 x1	3
SATA 6Gb/s	6
SATA Express	1
M.2 Slot	1
USB 3.0 Ports	6
RAID Support	RAID 0, 1, 5, 10
LAN	Killer E2200
Multi-GPU Support	AMD Quad CrossFireX, NVIDIA Quad SLI
Memory Speed	DDR3-3200 (OC)
USB 2.0 Ports	8 (4 rear, 4 via headers)
