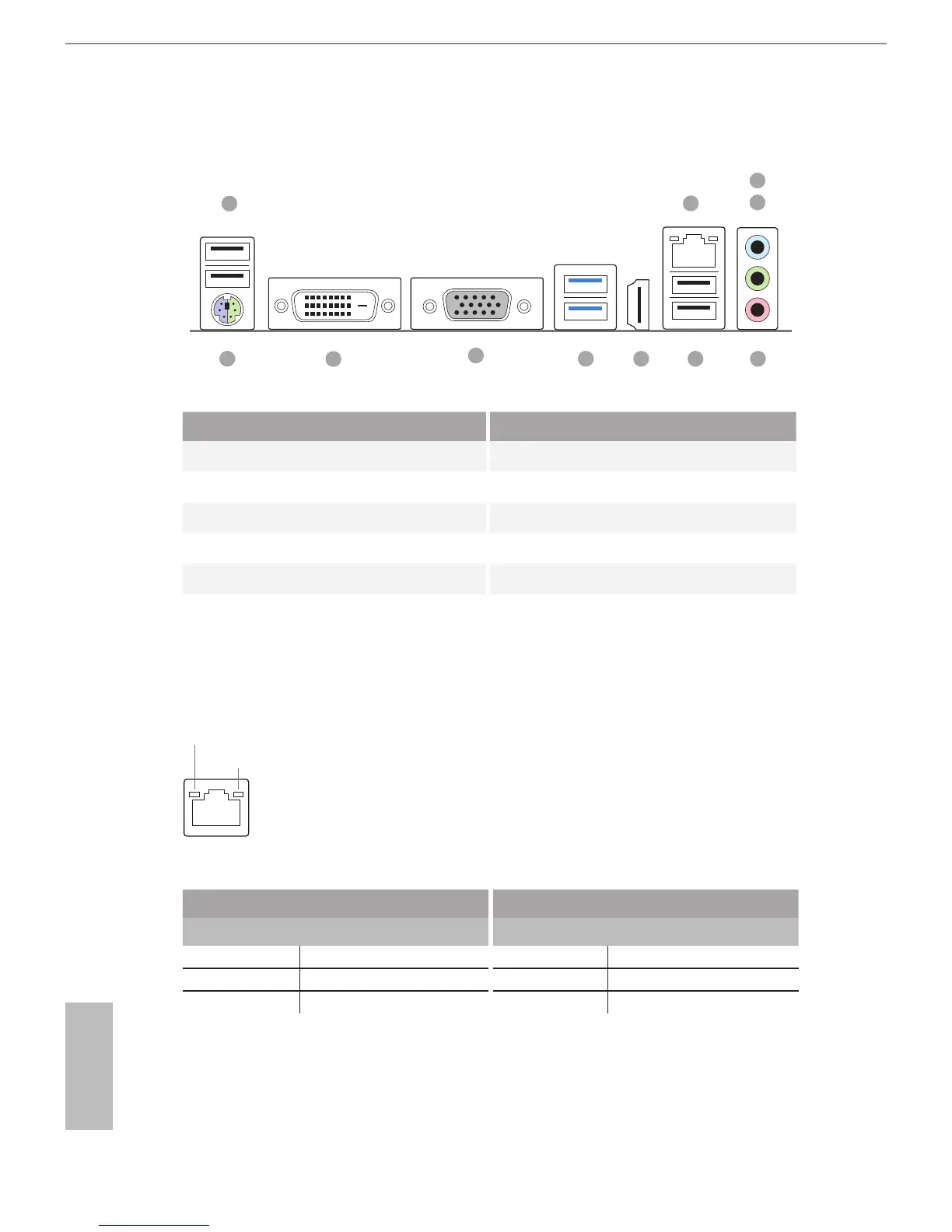

1.4 I/O Panel
No. Description No. Description
1 USB 2.0 Ports (USB_1_2) 7 HDMI Port
2 LAN RJ-45 Port* 8 USB 3.0 Ports (USB_3_4)
3 Line In (Light Blue) 9 D-Sub Port
4 Front Speaker (Lime) 10
5 Microphone (Pink) 11 PS/2 Mouse/Keyboard Port
6 USB 2.0 Ports (USB_5_6)
* There are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indica-
tions.
Activity / Link LED Speed LED
Status Description Status Description
Off No Link Off 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
1
2
4
3
5678
9
10
11
