power supply to this connector.
(see p.6 No. 1)

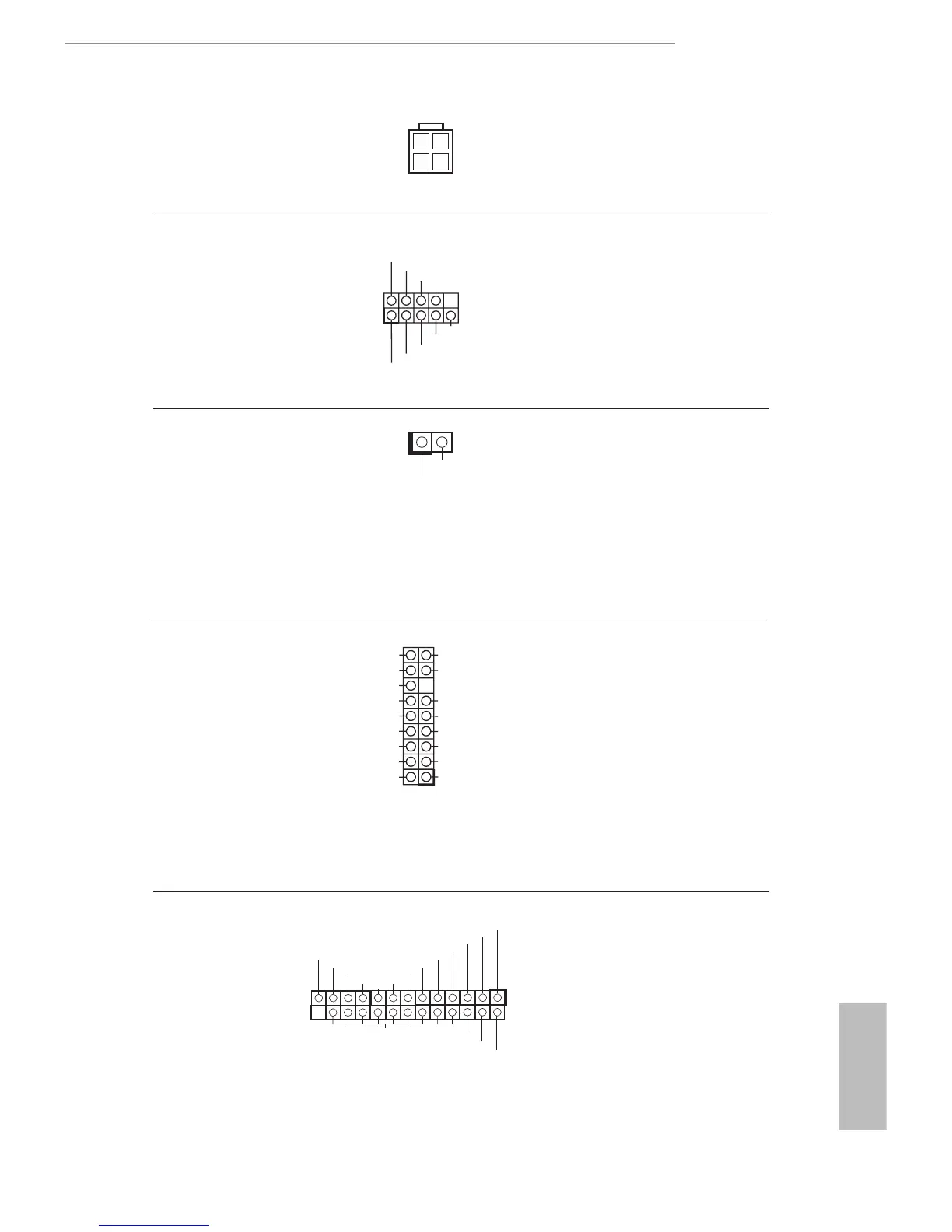

Chassis Intrusion Header
(2-pin CI1)
(see p.6, No. 19)
This motherboard supports
CASE OPEN detection feature
that detects if the chassis
cover has been removed. This
feature requires a chassis with
chassis intrusion detection
design.
1
Signal
GND
TPM Header
(17-pin TPMS1)
(see p.6, No. 4)
This connector supports Trust-
ed Platform Module (TPM)
system, which can securely
passwords, and data. A TPM
system also helps enhance
network security, protects
digital identities, and ensures
platform integrity.
1
LFRAME#_L
CK_33M_TPM
TPM_RST#
LAD3_L
+3V
LAD0_L
+3VSB
GNDF_CLKRUN#
SERIRQ#
S_PWRDWN#
GND
LAD1_L
LAD2_L
SMB_DATA_MAIN
SMB_CLK_MAIN
GND
Print Port Header
(25-pin LPT1)
(see p.6, No. 17)
