ASROCK FM2A75 PRO04+ - Onboard Headers and Connectors

22

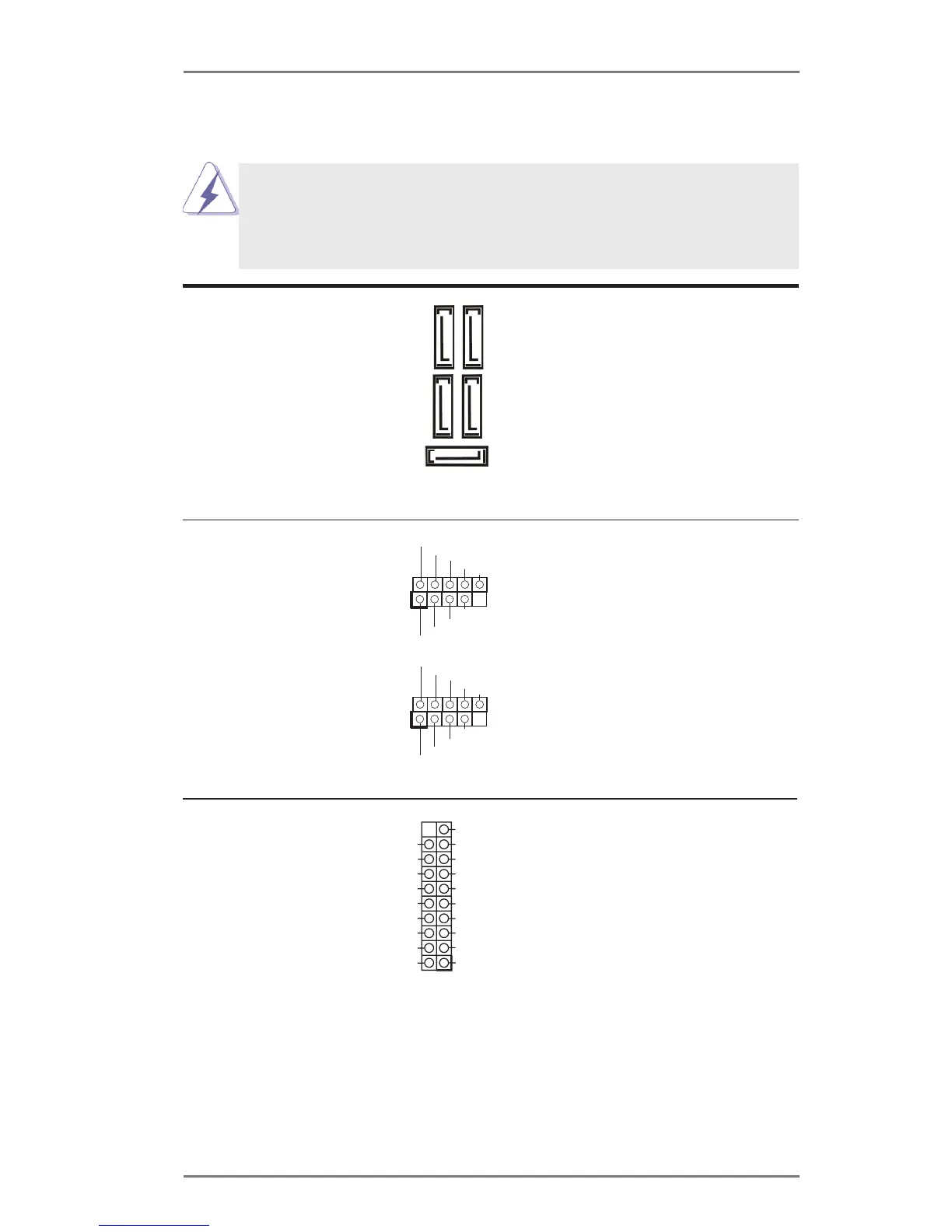

2.6 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
SerialATA3Connectors TheseveSerialATA3 
(SATA3_1: see p.11, No. 11)
(SATA3) connectors support
(SATA3_2: see p.11, No. 10)
SATA data cables for internal
(SATA3_3: see p.11, No. 12)
storage devices. The current
(SATA3_4: see p.11, No. 9)
SATA3 interface allows up to
(SATA3_5: see p.11, No. 13)
6.0 Gb/s data transfer rate.
USB 2.0 Headers Besides six default USB 2.0
(9-pin USB_11_12)
ports on the I/O panel, there
(see p.11 No. 21)
are two USB 2.0 headers on
this motherboard. Each USB 2.0
header can support two USB
(9-pin USB_13_14)
2.0 ports.
(see p.11 No. 20)
USB 3.0 Header Besides two default USB 3.0
(19-pin USB3_9_10)
ports on the I/O panel, there is
(see p.11, No. 8)
one USB 3.0 header on this
motherboard. This USB 3.0
header can support two USB 3.0
ports.
1
IntA_PB _D+
Dummy
IntA_PB _D-
GND
IntA_PB _SSTX+
GND
IntA_PB _SSTX-
IntA_PB _SSRX+
IntA_PB _SSRX-
VbusVbus
Vbus
IntA _PA_SSRX-
IntA _PA_SSRX+
GND
IntA _PA_SSTX-
IntA _PA_SSTX+
GND
IntA _PA_D-
IntA _PA_D+
SATA3_3 SATA3_1
SATA3_4 SATA3_2
SATA3_5
1
USB_PWR
P-12
P+12
USB_PWR
P-11
P+11
GND
GND
DUMMY
1
USB_PWR
P-14
P+14
USB_PWR
P-13
P+13
GND
GND
DUMMY
