FM2A88X Pro+
25
English

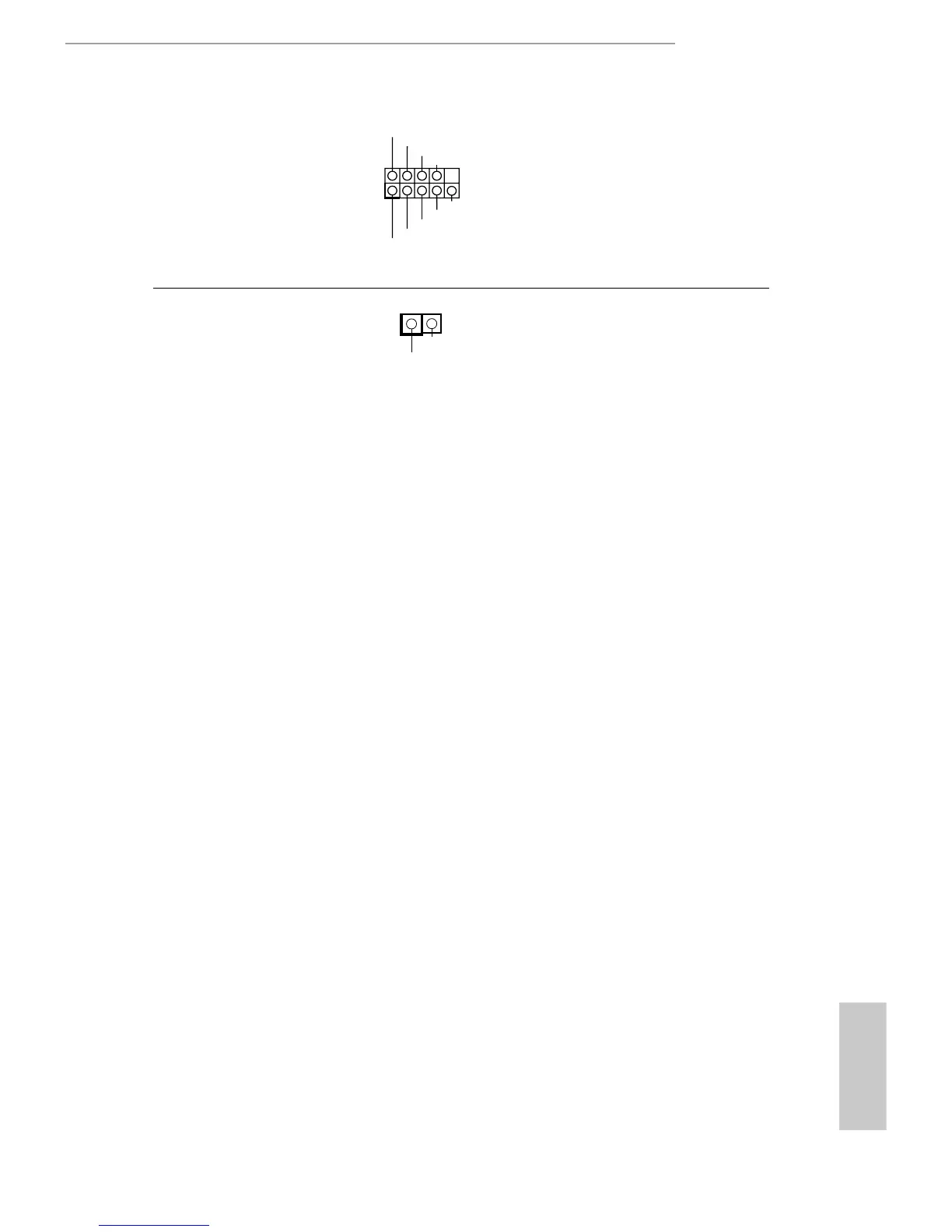

Serial port Header This COM1 header supports a
(9-pin COM1)
serial port module.
(see p.10 No. 23)
CCTS#1
RRTS#1
DDSR#1
DDTR#1
RRXD1
GND
TTXD1
DDCD#1
1
RRI#1
SPDIF Out Connector Please connect the
(2-pin HDMI_SPDIF1)
SPDIF_OUT connector of
(
see p.10 No. 24)
a HDMI VGA card to this
header with a cable.
SPDIFOUT
GND
1
