ASROCK G41M-VS3 Manual

22
22
2
ASRock G41M-VGS3 / G41M-VS3 Motherboard
EnglishEnglish
EnglishEnglish
English

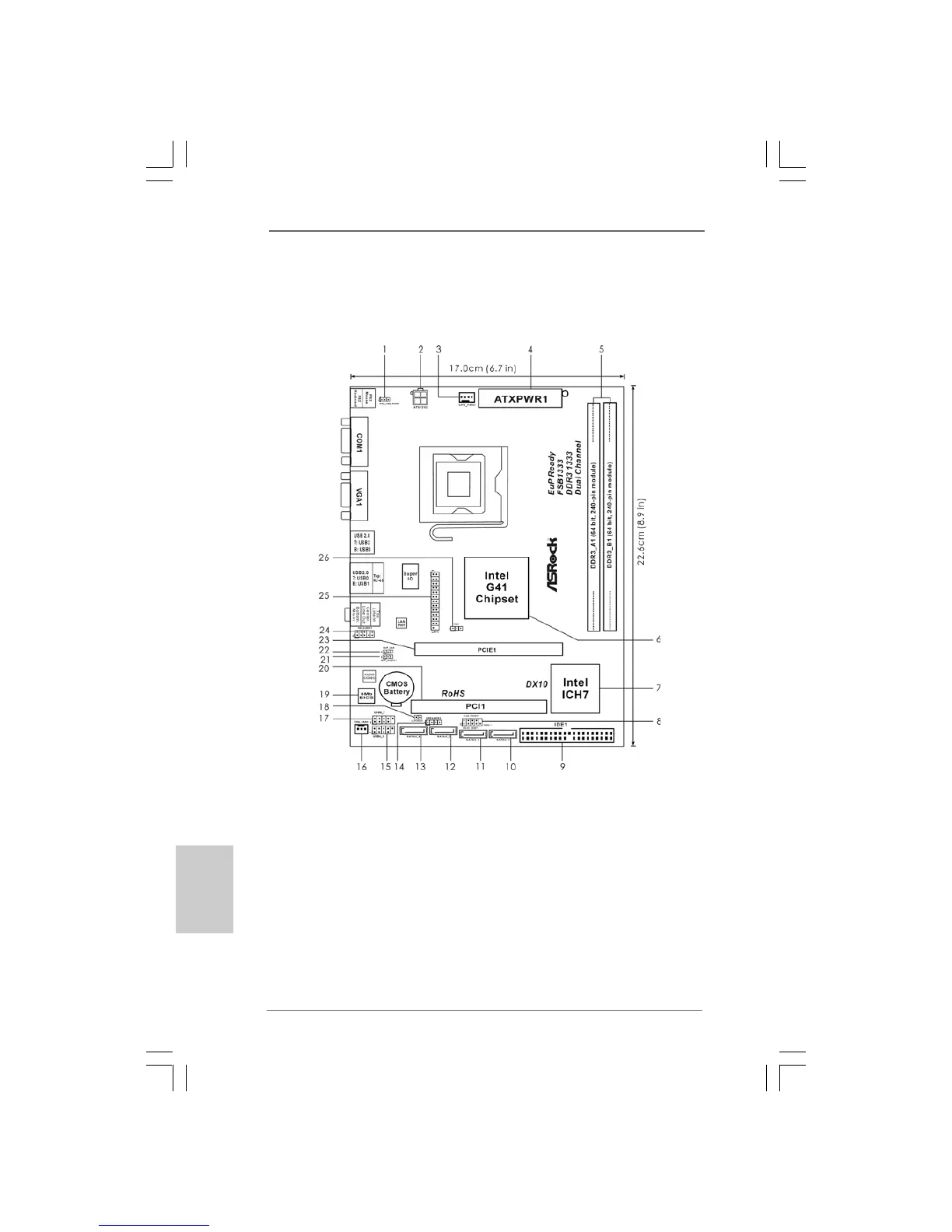

Motherboard LayoutMotherboard Layout
Motherboard LayoutMotherboard Layout
Motherboard Layout
(G41M-(G41M-
(G41M-(G41M-
(G41M-
VGS3 / G41M-VGS3 / G41M-
VGS3 / G41M-VGS3 / G41M-
VGS3 / G41M-
VS3)VS3)
VS3)VS3)
VS3)
1 PS2_USB_PWR1 Jumper 14 Chassis Speaker Header (SPEAKER 1, Purple)
2 ATX 12V Connector (ATX12V2) 15 USB 2.0 Header (USB4_5, Blue)
3 CPU Fan Connector (CPU_FAN1) 16 Chassis Fan Connector (CHA_FAN1)
4 ATX Power Connector (ATXPWR1) 17 USB 2.0 Header (USB6_7, Blue)
5 2 x 240-pin DDR3 DIMM Slots 18 Clear CMOS Jumper (CLRCMOS1)
(Dual Channel: DDR3_A1, DDR3_B1; Blue) 19 BIOS SPI Chip
6 North Bridge Controller 20 PCI Slot (PCI1)
7 South Bridge Controller 21 EUP Audio Jumper (EUP_AUDIO1)
8 System Panel Header (PANEL1, Orange) 22 EUP LAN Jumper (EUP_LAN1)
9 IDE1 Connector (IDE1, Blue) 23 PCI Express x16 Slot (PCIE1)
10 Primary SATAII Connector (SATAII_1; Red) 24 Front Panel Audio Header
11 Secondary SATAII Connector (SATAII_2; Red) (HD_AUDIO1, Lime)
12 Third SATAII Connector (SATAII_3; Red) 25 Print Port Header (LPT1, Purple)
13 Fourth SATAII Connector (SATAII_4; Red) 26 FSB1 Jumper

ASROCK G41M-VS3 Specifications

General

Non-ECC	Yes
Number of memory slots	2
Maximum internal memory	8 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
Number of SATA connectors	4
Number of Parallel ATA connectors	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Audio chip	VIA VT1705
Certification	FCC, CE
Power source type	ATX
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Win XP, Vista, 7
Networking features	10/100 Mbps
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	170 mm
Width	226 mm
