ASROCK H270M-ITX/ac User Guide

PB
1
English
H270M-ITX/ac
PCIE1
DDR4_A1 (64 bit, 288-pin module)
DDR4_B1 (64 bit, 288-pin module)
CPU_FAN1
CHA_FAN1/W_PUMP
6
RoHS
H270M-ITX/ac
3
7
9
14
8
USB 2.0
T: USB1
B: USB2
PS2
Keyboard
/Mouse
18
17
16
15
AUDIO
CODEC
5
1
HD_AUDIO1
1
SPEAKER 1
Intel
H270
ATXPWR1
USB3_6_7
1
HDMI2
4
2
PANEL1
HDLED RESET
PLED PWRBTN
1
TPMS1
1
1
CI1
HDMI1
DVI1
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
SATA3 _3
SATA3 _2
1
CLRMOS1
SATA3 _1
SATA3 _0
1
USB_3_4
SATA3 _5
SATA3 _4
M2_1
C 4
C 3C 2C 1
T
T
T
T
Top:
RJ-45
USB 3.0
T: USB4
B: USB5
Top:
RJ-45
USB 3.0
T: USB2
B: USB3
USB 3.0
T: USB0
B: USB1
1
10
11
12
13
19
BIOS
ROM
M2_WIFI1

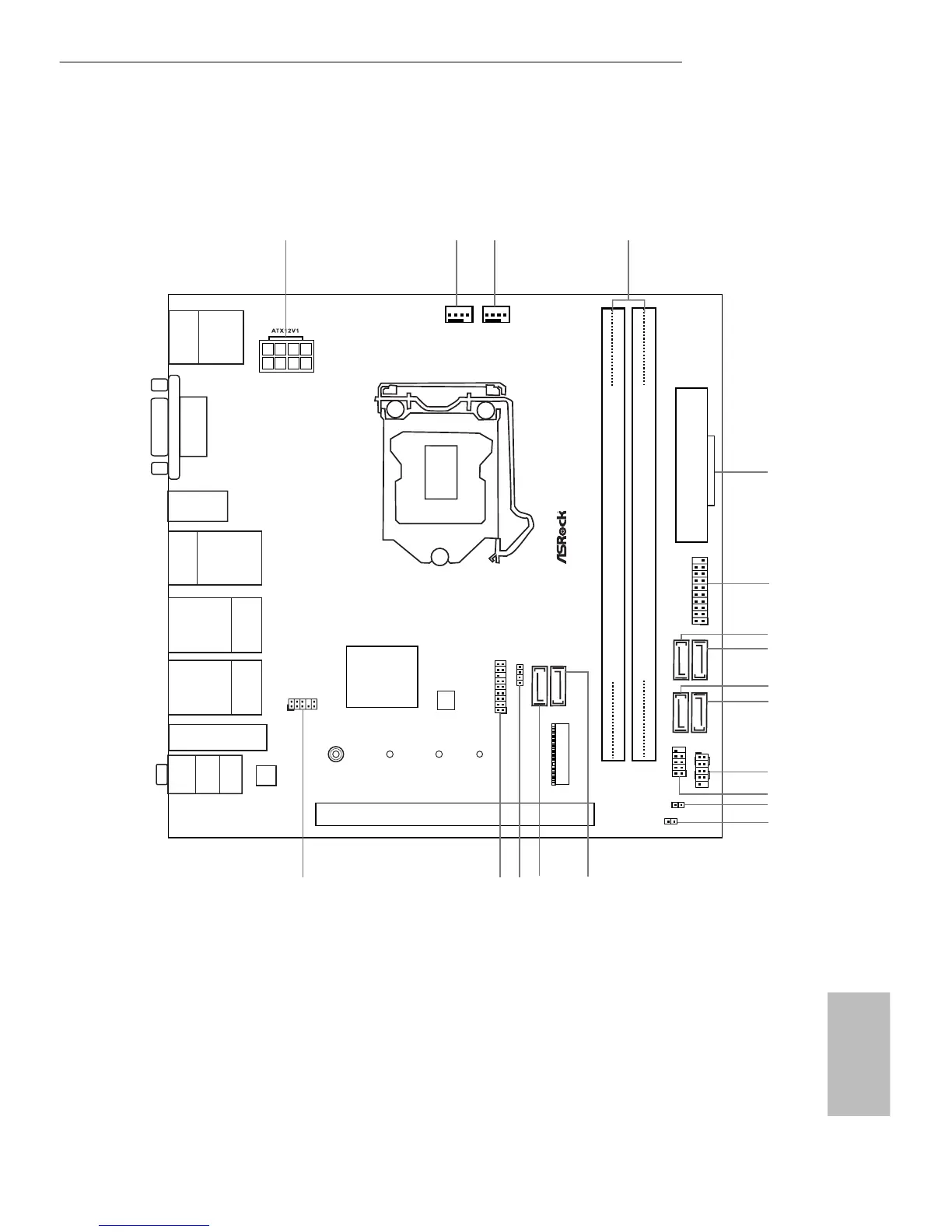

Motherboard Layout

ASROCK H270M-ITX/ac Specifications

General

ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR4-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	2133, 2400 MHz
Supported memory module capacities	4GB, 8GB, 16GB
Processor socket	LGA 1151 (Socket H4)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Intel® Core i3/i5/i7/i9 series	i3-6xxx, i5-6xxx, i7-6xxx
Maximum number of SMP processors	1
Number of SATA III connectors	6
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
USB connector type	USB Type-A
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
LAN controller	Intel I211, Intel I219V
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Bluetooth version	4.0
Ethernet interface type	Gigabit Ethernet
Audio chip	Realtek ALC892
Cooling type	Passive
Certification	FCC, CE, WHQL, ErP/EuP
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H270
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
RAID levels	0, 1, 5, 10
DirectX version	12.0
Maximum resolution	4096 x 2160 pixels
BIOS type	UEFI AMI
ACPI version	6.0
BIOS memory size	128 Mbit
Cables included	SATA
Harmonized System (HS) code	84733020

Weight and Dimensions

Width	170 mm
