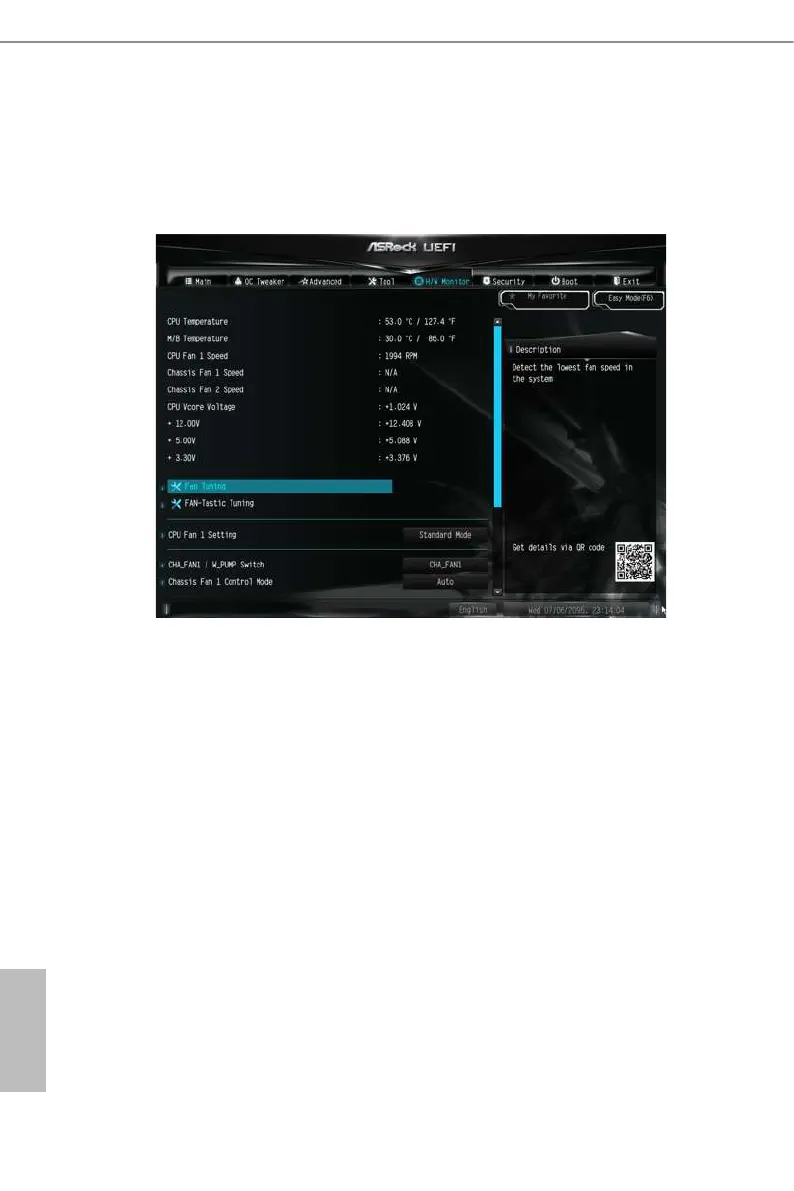

4.8 Hardware Health Event Monitoring Screen
is section allows you to monitor the status of the hardware on your system,
including the parameters of the CPU temperature, motherboard temperature, fan
speed and voltage.
Fan Tuning
Measure Fan Min Duty Cycle.
Fan-Tastic Tuning
Select a fan mode for CPU Fans 1&2, or choose Customize to set 5 CPU
temperatures and assign a respective fan speed for each temperature.
CPU Fan 1 Setting
Select a fan mode for CPU Fans, or choose Customize to set 5 CPU temperatures
and assign a respective fan speed for each temperature.
CHA_FAN1 / W_PUMP Switch
Switch CHA_FAN1 / WP header function
Chassis Fan 1 Control Mode
Select DC/PWM mode for Chassis Fan 1.
Chassis Fan 1 Setting
Select a fan mode for Chassis Fan, or choose Customize to set 5 CPU temperatures
