ASROCK H410M-ITX/ac User Manual

English
19
H410M-IT X/ac

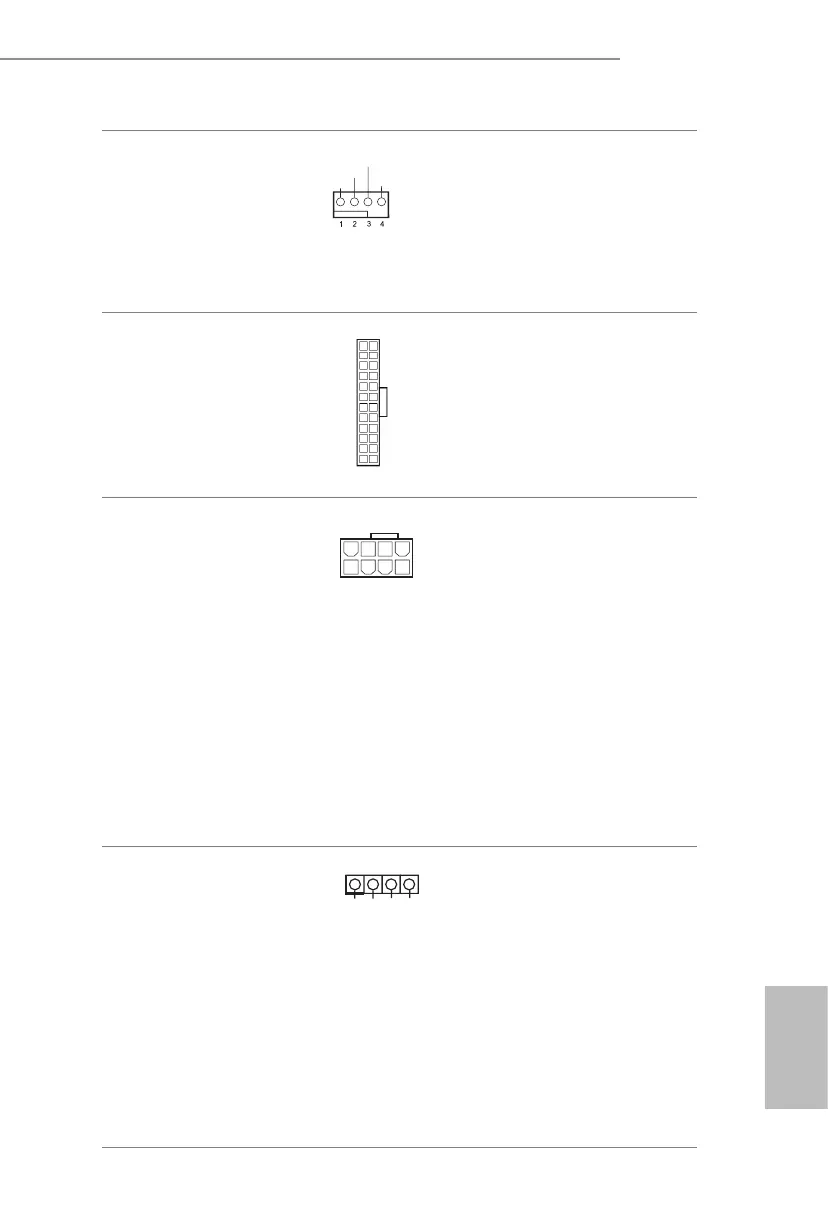

CPU Fan Connector
(4-pin CPU_FAN1)
(see p.1, No. 2)
is motherboard pro-
vides a 4-Pin CPU fan
(Quiet Fan) connector.
If you plan to connect a
3-Pin CPU fan, please
connect it to Pin 1-3.
ATX Power Connector
(24-pin ATXPWR1)
(see p.1, No. 7)
is motherboard pro-
vides a 24-pin ATX power
connector.
ATX 12V Power
Connector
(8-pin ATX12V1)
(see p.1, No. 1)
is motherboard
provides a 8-pin ATX 12V
power connector. To use a
4-pin ATX power supply,
please plug it along Pin 1
and Pin 5.
*Warning: Please make
sure that the power cable
connected is for the CPU
and not the graphics
card. Do not plug the
PCIe power cable to this
connector.
RGB LED Header
(4-pin RGB_LED1)
(see p.1, No. 4)
RGB header is used to connect
RGB LED extension cable which
allows users to choose from vari-
ous LED lighting eects.
Caution: Never install the RGB
LED cable in the wrong orienta-
tion; otherwise, the cable may
be damaged.
* Please refer to page 40 of our
usr manual for further instruc-
tions on this header.
12
1
24
13
4
1
8 5
12V G R B
1
GND
FAN_VOLTAGE_ CONTROL
FAN_SPEE D
FAN_SPEE D_CONTROL

ASROCK H410M-ITX/ac Specifications

General

Audio chip	Realtek ALC887
Component for	-
Motherboard chipset	Intel H410
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
Motherboard chipset family	Intel
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	2133, 2400, 2666, 2800, 2933 MHz
Processor socket	LGA 1200 (Socket H5)
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	SATA III, Ultra M.2
LAN controller	Intel® I219-V
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version	4.2
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
BIOS type	UEFI AMI
ACPI version	6.0
BIOS memory size	128 Mbit
System Management BIOS (SMBIOS) version	2.7
OpenGL version	4.5
DirectX version	12.0
USB connector type	USB Type-A, USB Type-C
DisplayPort version	1.4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
VGA (D-Sub) ports quantity	0
Number of SATA III connectors	4

Weight and Dimensions

Width	170 mm
