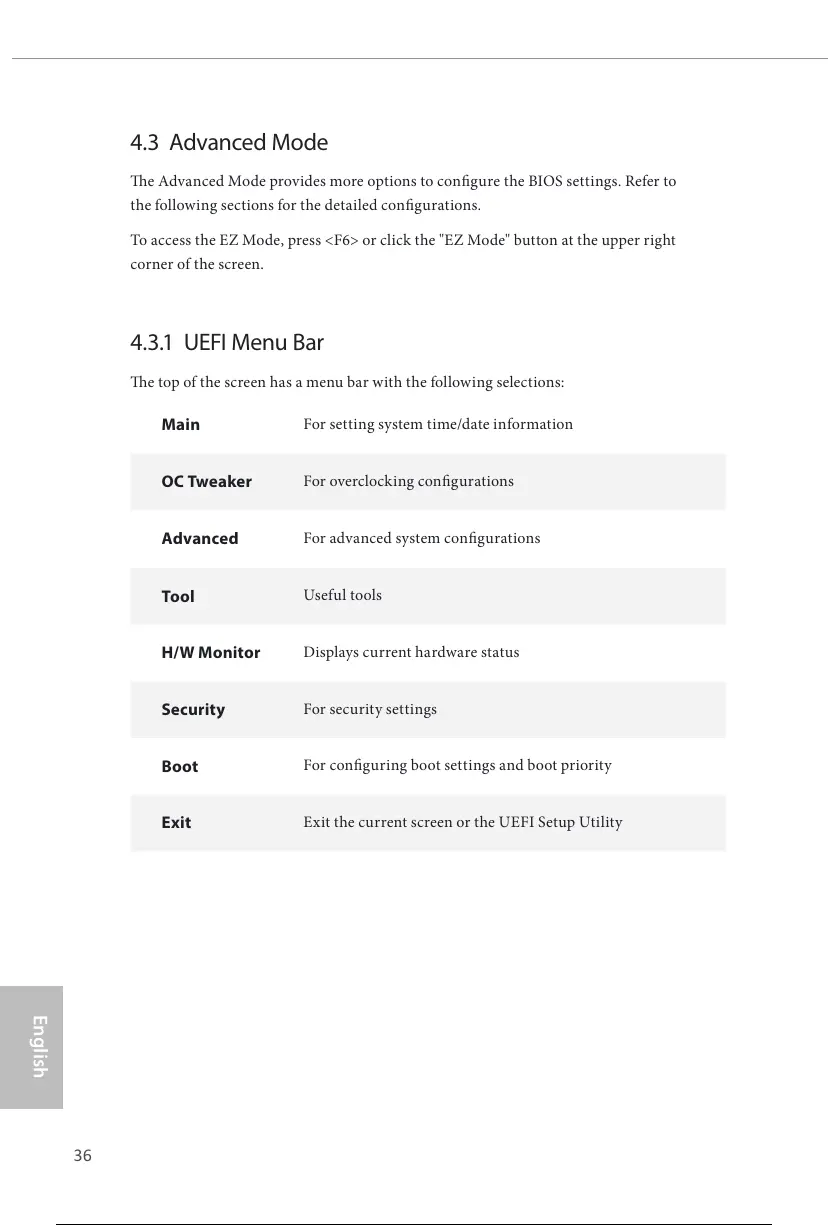

4.3 Advanced Mode
e Advanced Mode provides more options to congure the BIOS settings. Refer to
the following sections for the detailed congurations.
To access the EZ Mode, press <F6> or click the "EZ Mode" button at the upper right
corner of the screen.
4.3.1 UEFI Menu Bar
e top of the screen has a menu bar with the following selections:
Main
For setting system time/date information
OC Tweaker
For overclocking congurations
Advanced
For advanced system congurations
Tool
Useful tools
H/W Monitor
Displays current hardware status
Security
For security settings
Boot
For conguring boot settings and boot priority
Exit
Exit the current screen or the UEFI Setup Utility
43 / 78

ASROCK H510M-HVS R2.0 Specifications

General

Processor socket	LGA 1200 (Socket H5)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium
Maximum number of SMP processors	1
Audio chip	Realtek ALC887 / Realtek ALC897
Certification	FCC, CE ErP/EuP
Component for	PC
Motherboard chipset	Intel H510
PC health monitoring	FAN, Voltage
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 10 x64
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	2133, 2400, 2666, 2800, 2933, 3200 MHz
BIOS type	UEFI AMI
ACPI version	6.0
BIOS memory size	128 Mbit
System Management BIOS (SMBIOS) version	2.7
DVI-D ports quantity	0
USB 2.0 ports quantity	4
Maximum resolution	4096 x 2160 pixels
Parallel processing technology support	-
Wi-Fi	No
LAN controller	Realtek RTL8111H
Ethernet interface type	Gigabit Ethernet
Supported storage drive interfaces	SATA III
Cables included	SATA
Harmonized System (HS) code	84733020

Weight and Dimensions

Depth	188 mm
Width	197 mm
