ASROCK H55M R2.0 User Manual

1111
1111
11

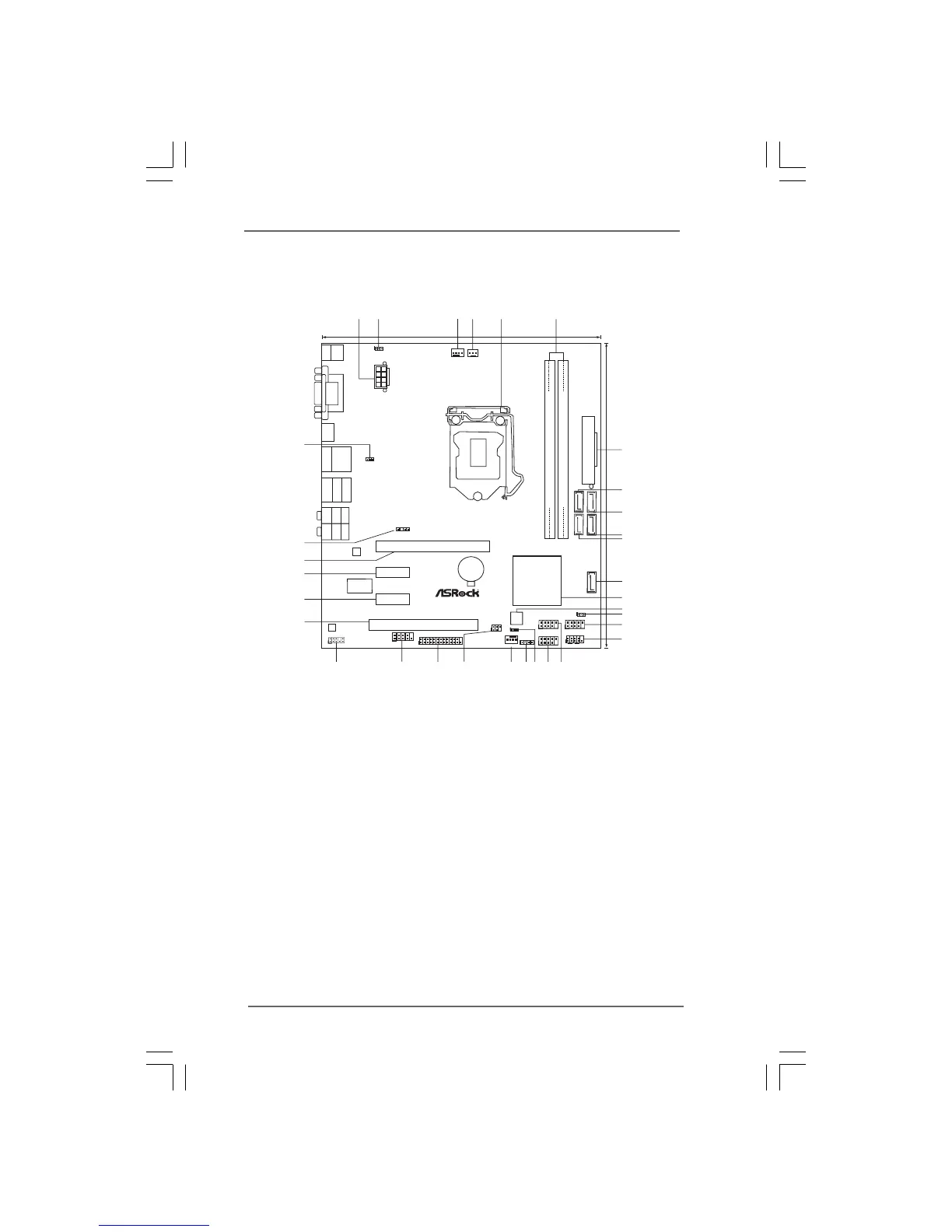

1.3 Motherboard Layout1.3 Motherboard Layout
1.3 Motherboard Layout1.3 Motherboard Layout
1.3 Motherboard Layout
1 ATX 12V Power Connector (ATX12V1) 18 USB 2.0 Header (USB8_9, Blue)
2 PS2_USB_PWR1 Jumper 19 USB 2.0 Header (USB10_11, White)
3 CPU Fan Connector (CPU_FAN1) 20 Clear CMOS Jumper (CLRCMOS1)
4 Power Fan Connector (PWR_FAN1) 21 Chassis Speaker Header
5 1156-Pin CPU Socket (SPEAKER 1, White)
6 2 x 240-pin DDR3 DIMM Slots 22 Chassis Fan Connector (CHA_FAN1)
(Dual Channel: DDR3_A1, DDR3_B1, Blue) 23 Infrared Module Header (IR1)
7 ATX Power Connector (ATXPWR1) 24 Print Port Header (LPT1, White)
8 SATAII Connector (SATAII_2 (Port 1), Blue) 25 COM Port Header (COM1)
9 SATAII Connector (SATAII_1 (Port 0), Blue) 26 Front Panel Audio Header
10 SATAII Connector (SATAII_3 (Port 2), Blue) (HD_AUDIO1, White)
11 SATAII Connector (SATAII_4 (Port 3), Blue) 27 PCI Slot (PCI1)
12 SATAII Connector (SATAII_5 (Port 4), Blue) 28 PCI Express 2.0 x1 Slot (PCIE3, White)
13 Intel H55 Chipset 29 PCI Express 2.0 x1 Slot (PCIE2, White)
14 64Mb SPI Flash 30 PCI Express 2.0 x16 Slot (PCIE1, Blue)
15 USB_PWR3 Jumper 31 HDMI_SPDIF Header
16 USB 2.0 Header (USB6_7, Blue) (HDMI_SPDIF1, White)
17 System Panel Header (PANEL1, White) 32 USB_PWR2 Jumper
Intel
H55
DDR3_A1 (64 bit, 240-pin module)
DDR3_B1 (64 bit, 240-pin module)
22.4cm (8.8 in)
24.4cm (9.6 in)
ATXPWR1
PWR_FAN1
CPU_FAN1
SATAII_4(Port 3)
SATAII_2(Port 1)
SATAII_3(Port 2)
SATAII_1(Port 0)
ATX12V1
PS2_USB_PWR1
1
64Mb
BIOS
LAN
PHY
HD_AUDIO1
1
1
HDMI_SPDIF1
Super
I/O
AUDIO
CODEC
CMOS
Battery
CHA_FAN1
USB10_11
11
USB8_9
11
USB6_7
11
CLRCMOS1
1
HDLED RESET
PLED PWRBTN
PANEL1
1
SPEAKER1
1
IR1
1
COM1
1
1
LPT1
PCIE1
PCIE3
PCIE2
PCI1
USB 2.0
T:USB4
B: USB5
PS2
Keyboard
RJ-45
Top:
CTR BASS
Center:
REAR SPK
Bottom:
Optical
SPDIF
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
DDR3 2600+
H55M/USB3
RoHS
PCI Express 2.0
Gigabit LAN
Dual Channel
ErP/EuP Ready
12
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
2124
25
23
22
26
27
28
29
30
31
VGA1
DVI_CON1
HDMI1
USB 2.0
T: US B2
B: USB3
eSATAII_1
USB2.0:USB1 USB3.0:USB0
SATAII_5(Port 4)
USB_PWR3
1
USB_PWR2
1
Designed in Taipei
DX10
USB 3.0
32

ASROCK H55M R2.0 Specifications

General

Brand	ASROCK
Model	H55M R2.0
Category	Motherboard
Language	English
