ASROCK H570M-ITX/ac User Manual

28
English

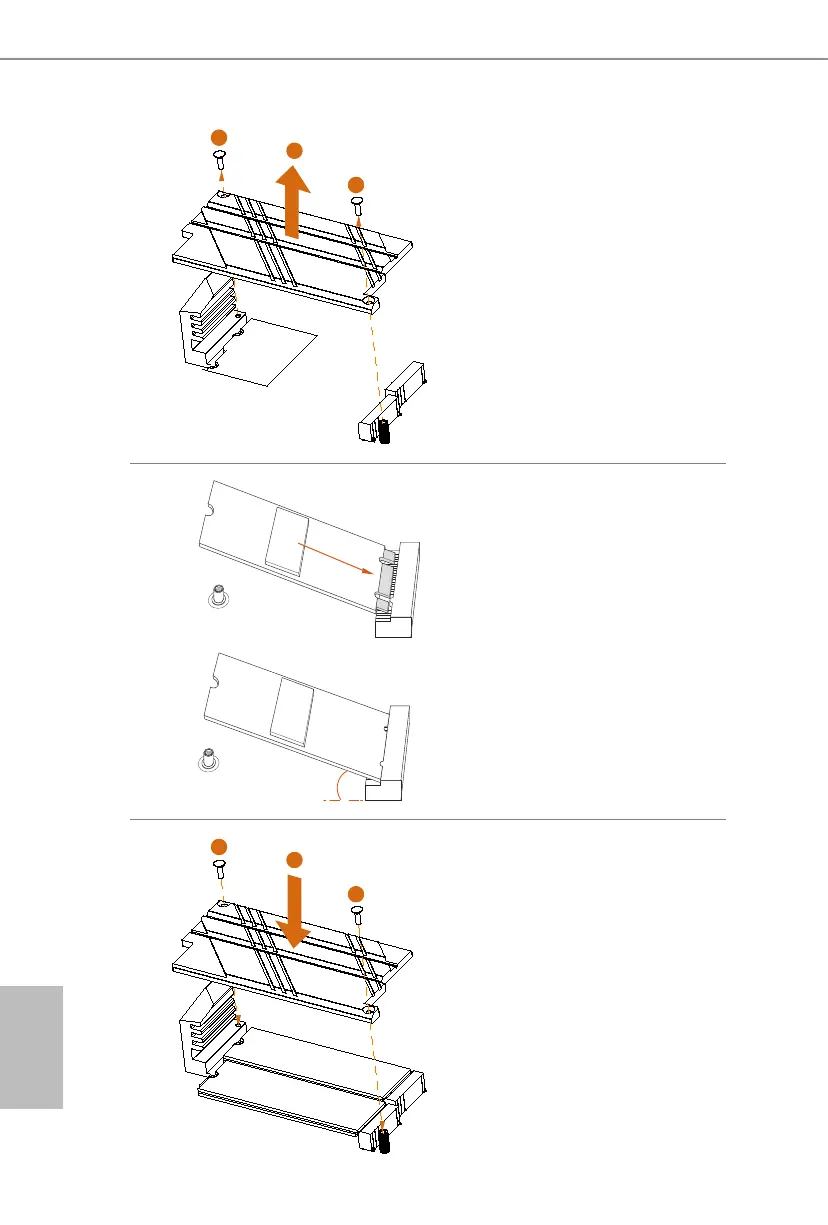

Step 3
Before installing a M.2 (NGFF) SSD
module, please loosen the screws to
remove the M.2 heatsink.
*Please remove the protective lms
on the bottom side of the M.2
heatsink before you install a M.2
SSD module.
Step 4
Align and gently insert the M.2
(NGFF) SSD module into the M.2
slot. Please be aware that the M.2
(NGFF) SSD module only ts in
one orientation. Tighten the screws
that come with the package with a
screwdriver to secure the modules
into place.
Step 5
Tighten the screw with a screwdriver
to secure the M.2 heatsink into
place. Please do not overtighten the
screw as this might damage the M.2
heatsink.
A
A
20
o
2
1
1
1
2
2
