9
English
H570M-IT X/ac

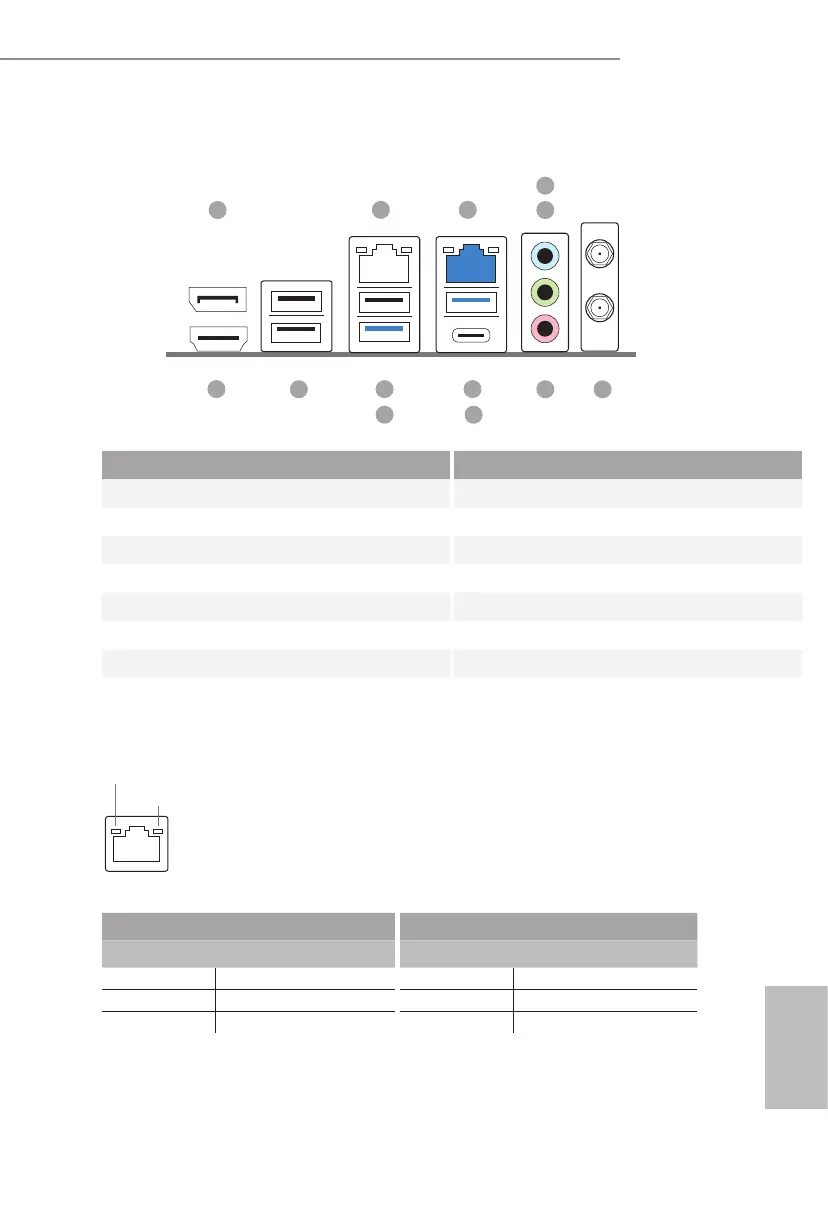

1.4 I/O Panel
No. Description No. Description
1 DisplayPort 1.4 8 USB 3.2 Gen2 Type-A Port (USB31_TA_1)
2 LAN RJ-45 Port (Intel® I219V)* 9 USB 3.2 Gen2x2 Type-C Port (USB31_TC_1)
3 2.5G LAN RJ-45 Port (Dragon RTL8125BG)** 10 USB 2.0 Port (USB_3)
4 Line In (Light Blue)*** 11 USB 3.2 Gen2 Type-A Port (USB_4)
5 Front Speaker (Lime)*** 12 USB 2.0 Ports (USB_12)
6 Antenna Ports 13 HDMI Port
7 Microphone (Pink)***
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
13 810
12
2 3
7
5
4
6
1
11 9
To Next Page
