ASROCK H61M-VS R2.0 Quick Installation Guide

19
ASRock H61M-VGS R2.0 / H61M-VS R2.0 Motherboard
English

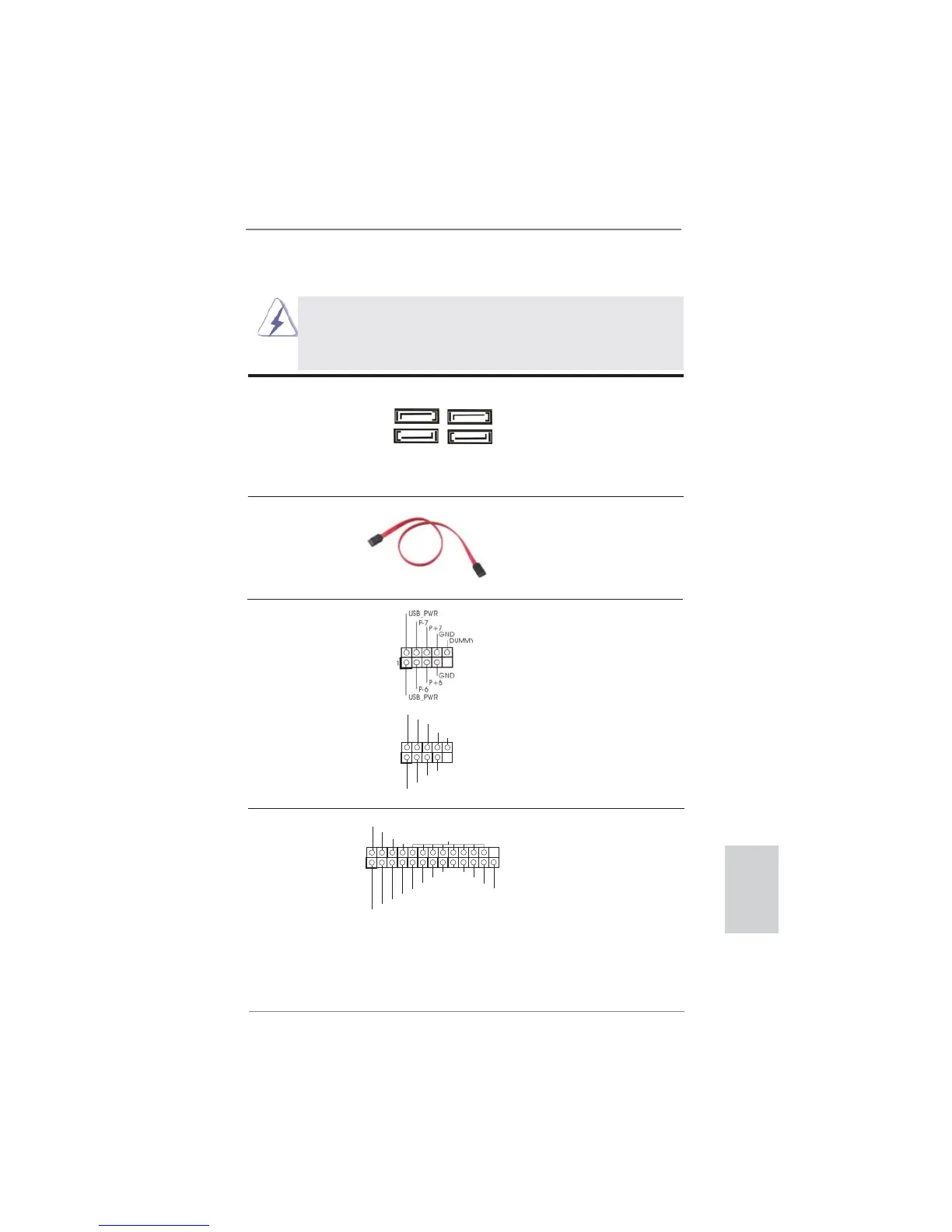

2.7 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
Serial ATAII Connectors These four Serial ATAII
(SATA2_0: see p.2, No. 10)
(SATAII) connectors support
(SATA2_1: see p.2, No. 8)
SATA data cables for internal
(SATA2_2: see p.2, No. 12)
storage devices. The current
(SATA2_3: see p.2, No. 11)
SATAII interface allows up to
3.0 Gb/s data transfer rate.
Serial ATA (SATA) Either end of the SATA data
Data Cable cable can be connected to the
(Optional)
SATA / SATAII hard disk or the
SATAII connector on this
motherboard.
USB 2.0 Headers Besides six default USB 2.0
(9-pin USB6_7)
ports on the I/O panel, there
(see p.2 No. 15)
are two USB 2.0 headers on
this motherboard. Each
USB 2.0 header can support
two USB 2.0 ports.
(9-pin USB8_9)
(see p.2 No. 16)
1
USB_PWR
P-8
GND
DUMMY
USB_PWR
P+8
GND
P-9
P+9
SATA2_1
SATA2_0
SATA2_3
SATA2_2
Print Port Header This is an interface for print
(25-pin LPT1)
port cable that allows
(see p.2 No. 18)
convenient connection of printer
devices.
1
AFD#
ERROR#
PINIT#
GND
SLIN#
STB#
SPD0
SPD1
SPD2
SPD3
SPD4
SPD5
SPD6
SPD7
ACK#
BUSY
PE
SLCT

ASROCK H61M-VS R2.0 Specifications

General

Chipset	Intel H61
CPU Socket	LGA 1155
Maximum Memory	16GB
Storage Interface	4 x SATA 3Gb/s
LAN	Realtek RTL8111E Gigabit LAN
Form Factor	Micro ATX
Video Outputs	1 x D-Sub
Power Connector	24-pin ATX, 4-pin ATX 12V
Memory Slots	2 x DIMM
Memory Standard	DDR3 1600/1333/1066
Expansion Slots	1 x PCIe 2.0 x1
USB Ports	8 x USB 2.0
Audio	Realtek ALC662 5.1-Channel HD Audio
