88
Português

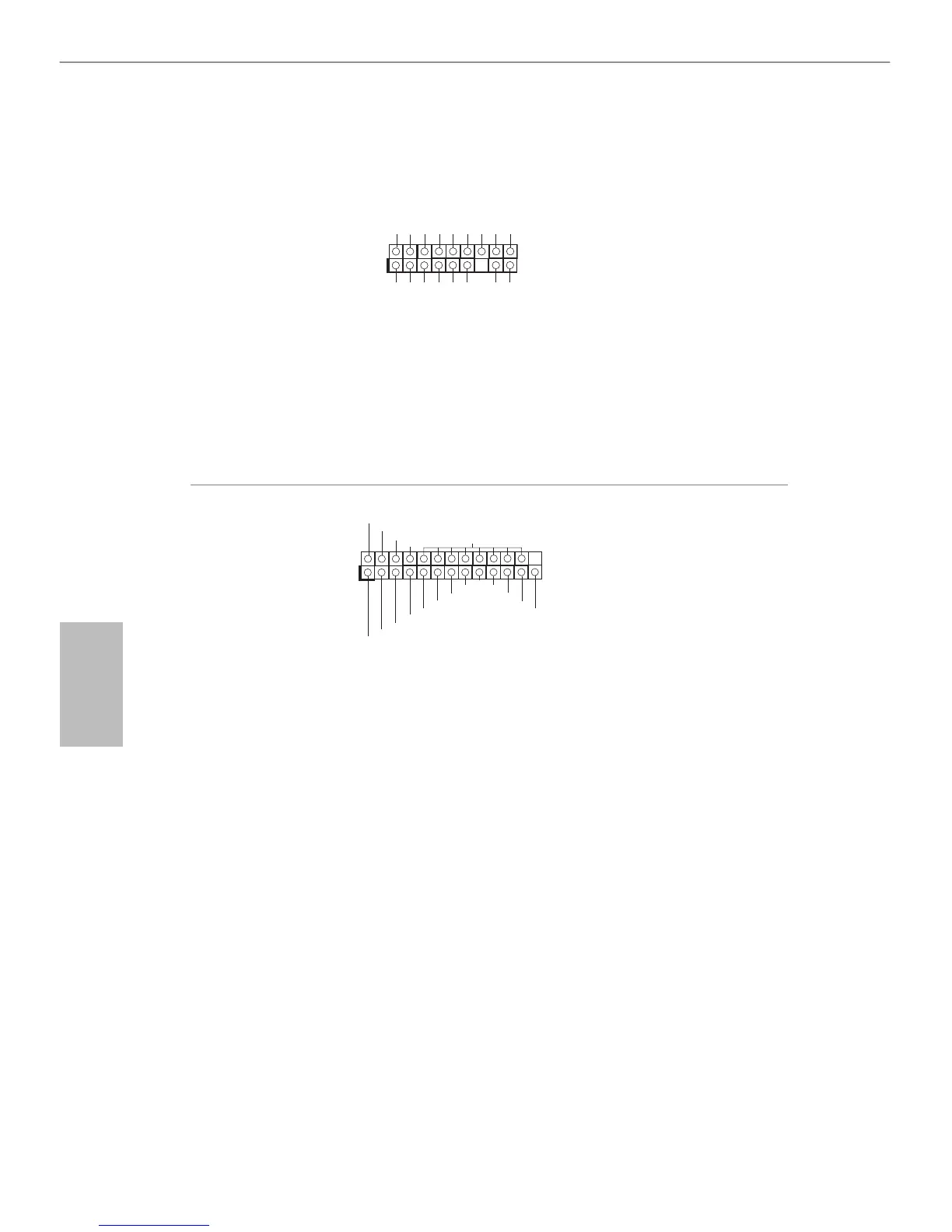

Terminal TPM
(TPMS1 de 17 pinos)
(consultar p.1, N.º 19)
Este conector suporta
um sistema com Módulo
de Plataforma Conável
(TPM), que pode
armazenar com seguraa
chaves, certicados
digitais, palavras-passe e
dados. Um sistema TPM
também ajuda a melhorar
a seguraa de rede, a
proteger identidades
digitais e a garantir a
integridade da plataforma.
Terminal de porta de
impressão
(LPT1 de 25 pinos)
(consultar p.1, N.º 18)
Esta é uma interface
para cabo de porta de
impressão que permite
a ligação conveniente de
dispositivos de impressão.
1
GND
SMB_DATA_MAIN
LAD2
LAD1
GND
S_PWRDWN#
SERIRQ#
GND
PCICLK
PCIRST#
LAD3
+3V
LAD0
+3VSB
GND
FRAME
SMB_CLK_MAIN
1
AFD#
ERROR#
PINIT#
GND
SLIN#
STB#
SPD0
SPD1
SPD2
SPD3
SPD4
SPD5
SPD6
SPD7
ACK#
BUSY
PE
SLCT
