ASROCK H81M-VG4 R3.0 User Manual

1
English
H81M-VG4 R3.0

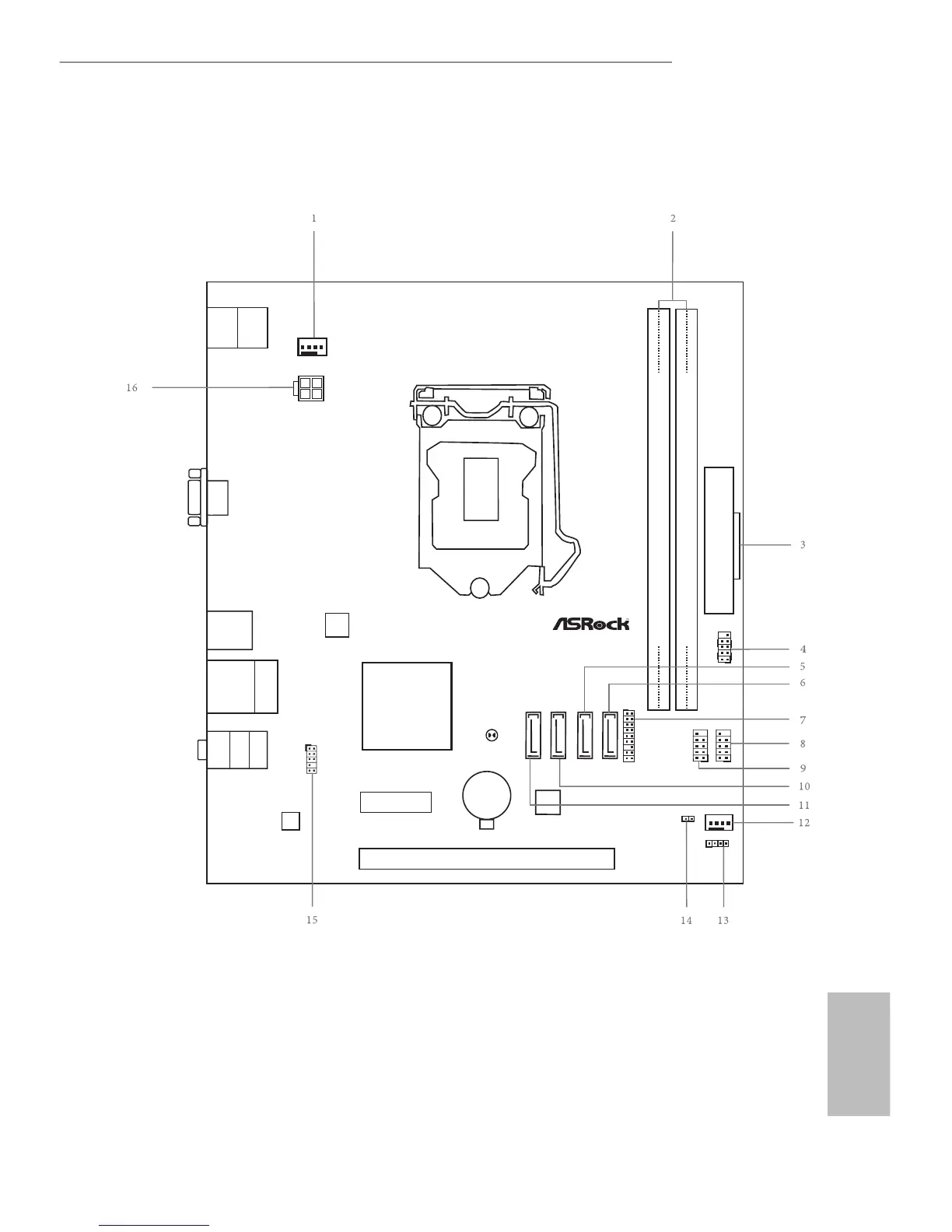

Motherboard Layout
Intel
H81
DDR3_B1 (64 bit, 240-pin module)
DDR3_A1 (64 bit, 240-pin module)
ATXPWR1
LAN
Top:
RJ-45
USB 2.0
T: USB2
B: USB3
1
SPE AKE R1
1
1
USB6_7 US B4 _5
H81M-VG4
CHA_ FAN1
RoHS
CPU_FAN1
BIOS
ROM
Audio
CODEC
PCIE2
PCIE1
USB 3.0
T: USB0
B: USB1
Top:
LINE IN
Cent er:
FRON T
Bott om:
MIC IN
ATX12V1
HDL ED R ESE T
PLE D PWRB TN
PANE L1
1
1
HD_AUDI O1
1
CI1
VGA1
TPMS1
1
SATA_ 0 SATA_ 2
CMOS
Battery
SATA_ 1 SATA_ 3
PS2
Keyboard
PS2
Mouse
CLR MOS1

ASROCK H81M-VG4 R3.0 Specifications

General

Non-ECC	Yes
Internal memory	16 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Supported memory clock speeds	1066, 1333, 1600 MHz
Certification	FCC, CE, WHQL, ErP/EuP ready
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H81
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Motherboard chipset family	Intel
Processor socket	LGA 1150 (Socket H3)
Compatible processor series	Intel Celeron, Intel Pentium
BIOS type	UEFI AMI
ACPI version	1.1
BIOS memory size	32 Mbit
Maximum resolution	1920 x 1080 pixels
LAN controller	Realtek RTL8111C
Ethernet interface type	Gigabit Ethernet
PCI Express x1 (Gen 2.x) slots	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
Supported storage drive interfaces	SATA II, SATA III
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Cables included	SATA
Bundled software	- ASRock Disk Health Report - ASRock USB Key - ASRock APP Charger - ASRock XFast LAN - ASRock XFast RAM - ASRock Fast Boot (Fast Boot, Restart to UEFI) - ASRock Interactive UEFI - ASRock UEFI Guide - ASRock Instant Flash - ASRock Internet Flash - ASRock Crashless BIOS - ASRock UEFI Tech Service - ASRock Easy Driver Installer
Harmonized System (HS) code	84733020

Weight and Dimensions

Width	- mm
