ASROCK J3355B-ITX - Page 17

English
15
J3455B-ITX
J3355B-ITX

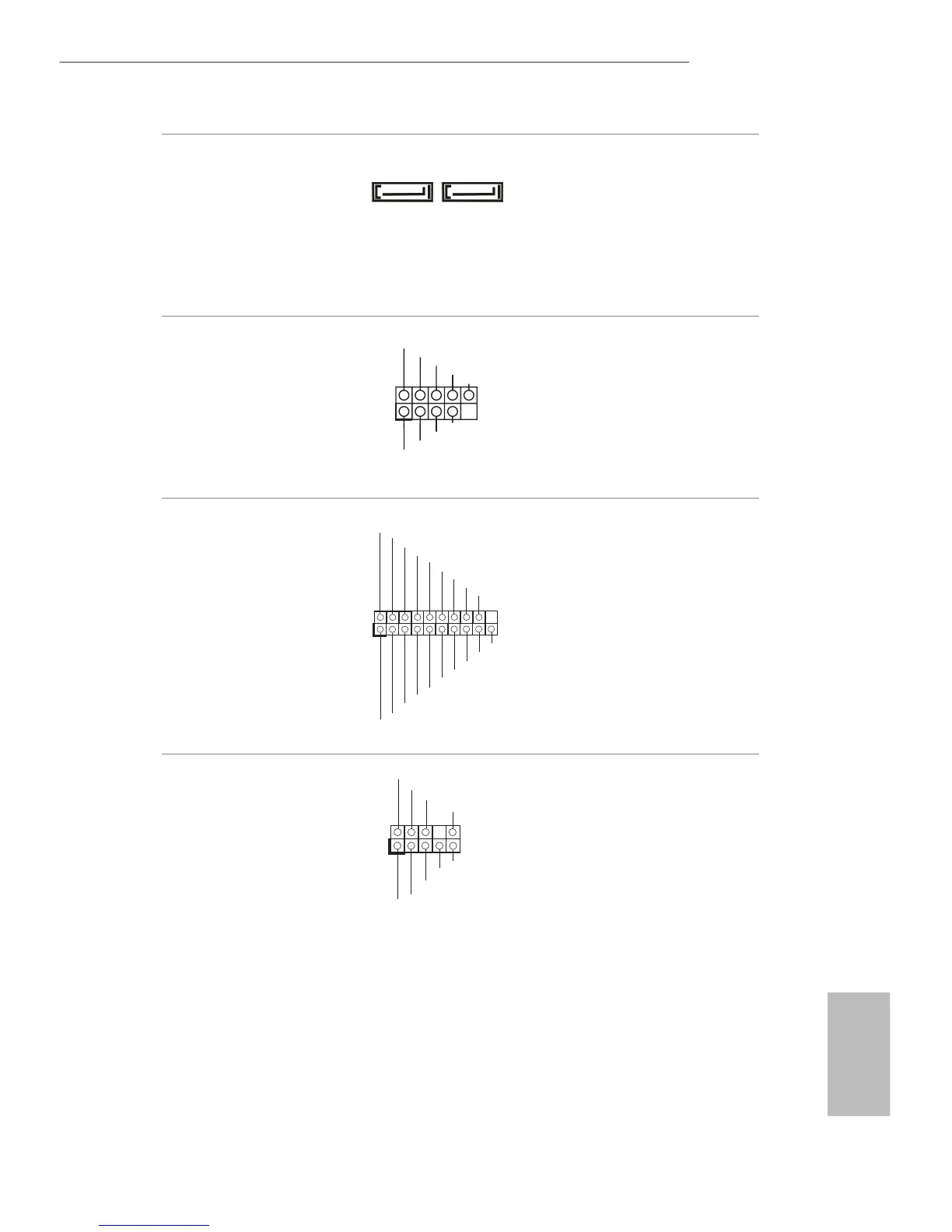

Serial ATA3 Connectors
(SATA3_1:
see p.1, No. 5)
(SATA3_2:
see p.1, No. 15)
ese two SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.
USB 2.0 Headers
(9-pin USB2_3)
(see p.1, No. 11)
(9-pin USB4_5)
(see p.1, No. 10)
Besides one USB 2.0 port
on the I/O panel, there
are two headers on this
motherboard. Each USB
2.0 header can support
two ports.
USB 3.0 Header
(19-pin USB3_1_2)
(see p.1, No. 9)
Besides three USB 3.0
ports on the I/O panel,
there is one header on this
motherboard. is USB
3.0 header can support
two ports.
Front Panel Audio Header
(9-pin HD_AUDIO1)
(see p.1, No. 16)
is header is for
connecting audio devices
to the front audio panel.
