ASROCK J3355B-ITX User Manual

5
English
J4205-ITX
J3455-ITX

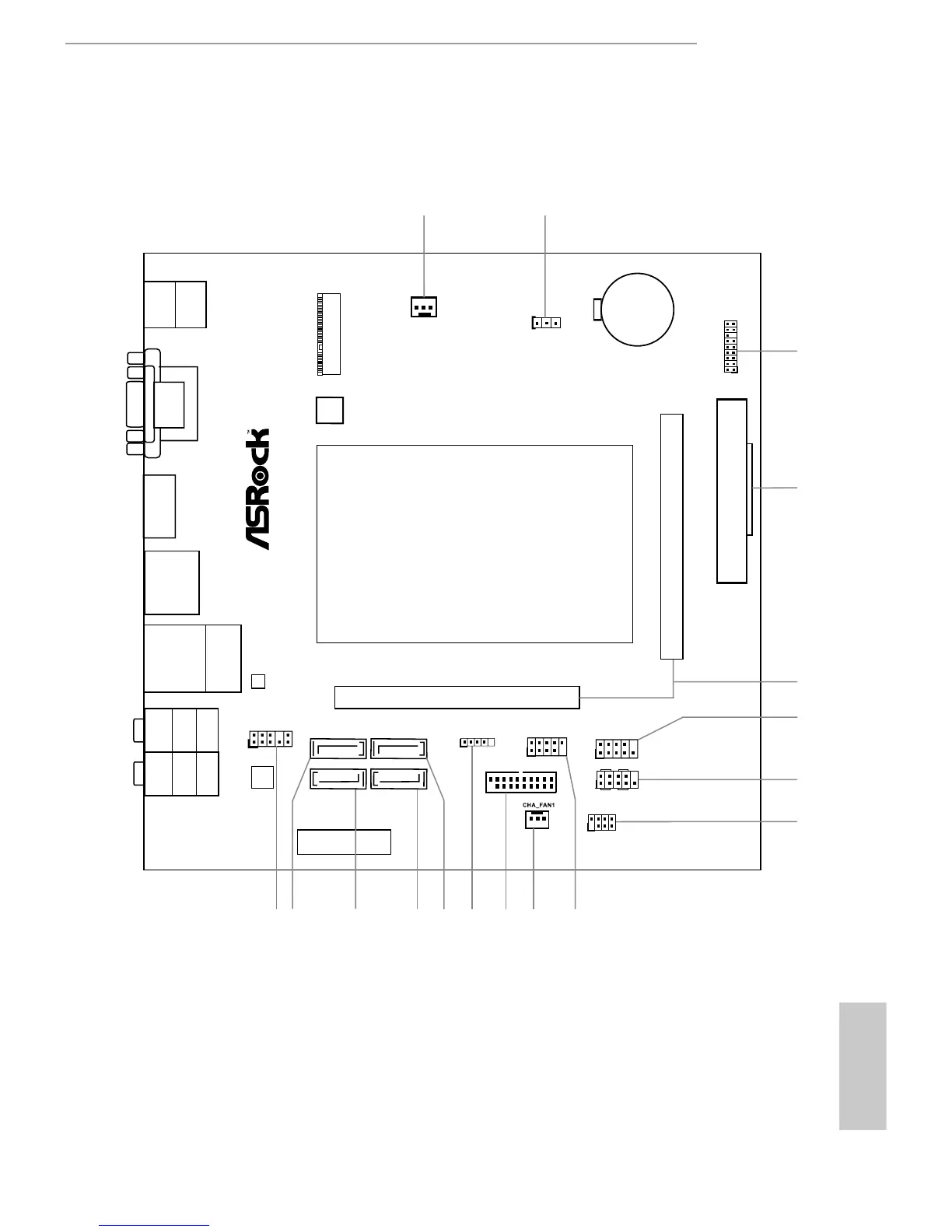

1.3 Motherboard Layout
PCIE1
ATXPWR1
AUDIO
CODEC
4
DDR3_A1
DDR3_B1
CPU_FAN1
COM1
1
RoHS
1
HD_AUDIO1
3
1
5
7
12
BIOS
ROM
Front USB 3.0
LAN
CLRMOS1
1
USB3_0_1
151617
1
USB_0_1
11
SATA3_1
SATA3
_A1
10
8
9
RJ-45 LAN
USB 2.0
T: USB4
B: USB5
PS2
Keyboard
PS2
Mouse
TPMS1
1
6
CMOS
Battery
HDLED RESET
PLED PWRBTN
PANEL1
1
SATA3_ 2
SATA3 _A2
1
USB6
SPK_CI1
1
HDMI1
VGA1
DVI1
USB 3.0
T: USB2
B: USB3
Top:
Central/Bass
Center:
REAR SPK
Top:
LINE IN
Center:
FRONT
Bottom:
Optical
SPDIF
Bottom:
MIC IN
2
14
13
M2

ASROCK J3355B-ITX Specifications

General

Processor cores	2
Processor socket	-
Processor manufacturer	Intel
Compatible processor series	Intel® Celeron®
Maximum number of SMP processors	1
Processor frequency	2.5 GHz
USB connector type	USB Type-A
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
Audio chip	Realtek ALC887
Component for	PC
Power source type	ATX
Audio output channels	7.1 channels
Supported storage drive interfaces	SATA III
Ethernet LAN	Yes
Memory slots type	SO-DIMM
Supported memory types	DDR3-SDRAM, DDR3L-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1866 MHz
Supported memory module capacities	8GB
Harmonized System (HS) code	84733020

Weight and Dimensions

Width	- mm
