ASROCK J3355B-ITX User Manual

36
English

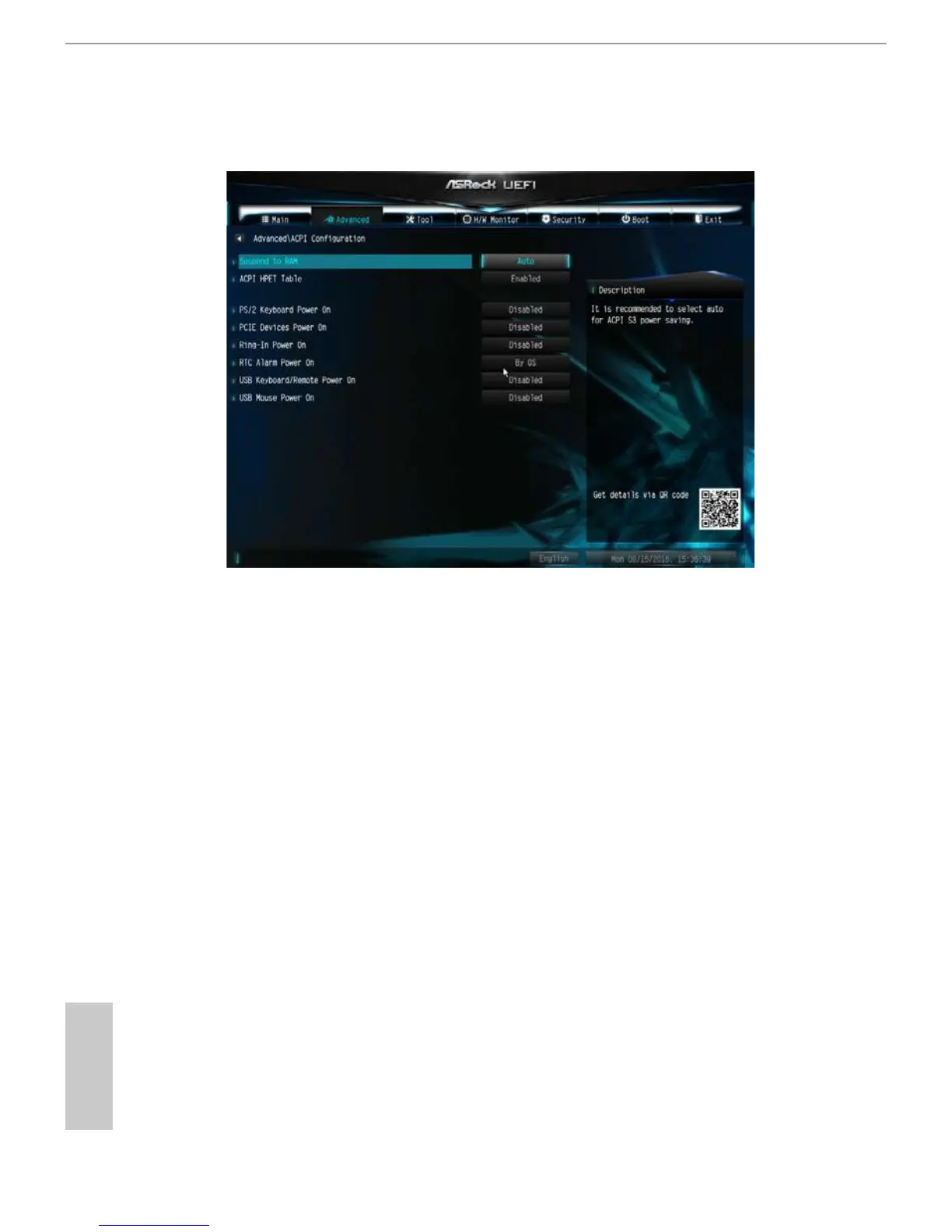

4.3.5 ACPI Conguration
Suspend to RAM
It is recommended to select auto for ACPI S3 power saving.
ACPI HPET Table
Enable the High Precision Event Timer for better performance and to pass WHQL
tests.
PS/2 Keyboard Power On
Allow the system to be waked up by a PS/2 Keyboard.
PCIE Device Power On
Allow the system to be waked up by a PCIE device and enable wake on LAN.
Ring-In Power On
Allow the system to be waked up by onboard COM port modem Ring-In signals.
RTC Alarm Power On
Allow the system to be waked up by the real time clock alarm. Set it to By OS to let
it be handled by your operating system.

ASROCK J3355B-ITX Specifications

General

Processor cores	2
Processor socket	-
Processor manufacturer	Intel
Compatible processor series	Intel® Celeron®
Maximum number of SMP processors	1
Processor frequency	2.5 GHz
USB connector type	USB Type-A
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
Audio chip	Realtek ALC887
Component for	PC
Power source type	ATX
Audio output channels	7.1 channels
Supported storage drive interfaces	SATA III
Ethernet LAN	Yes
Memory slots type	SO-DIMM
Supported memory types	DDR3-SDRAM, DDR3L-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1866 MHz
Supported memory module capacities	8GB
Harmonized System (HS) code	84733020

Weight and Dimensions

Width	- mm
