ASROCK J3355B-ITX User Manual

44
English

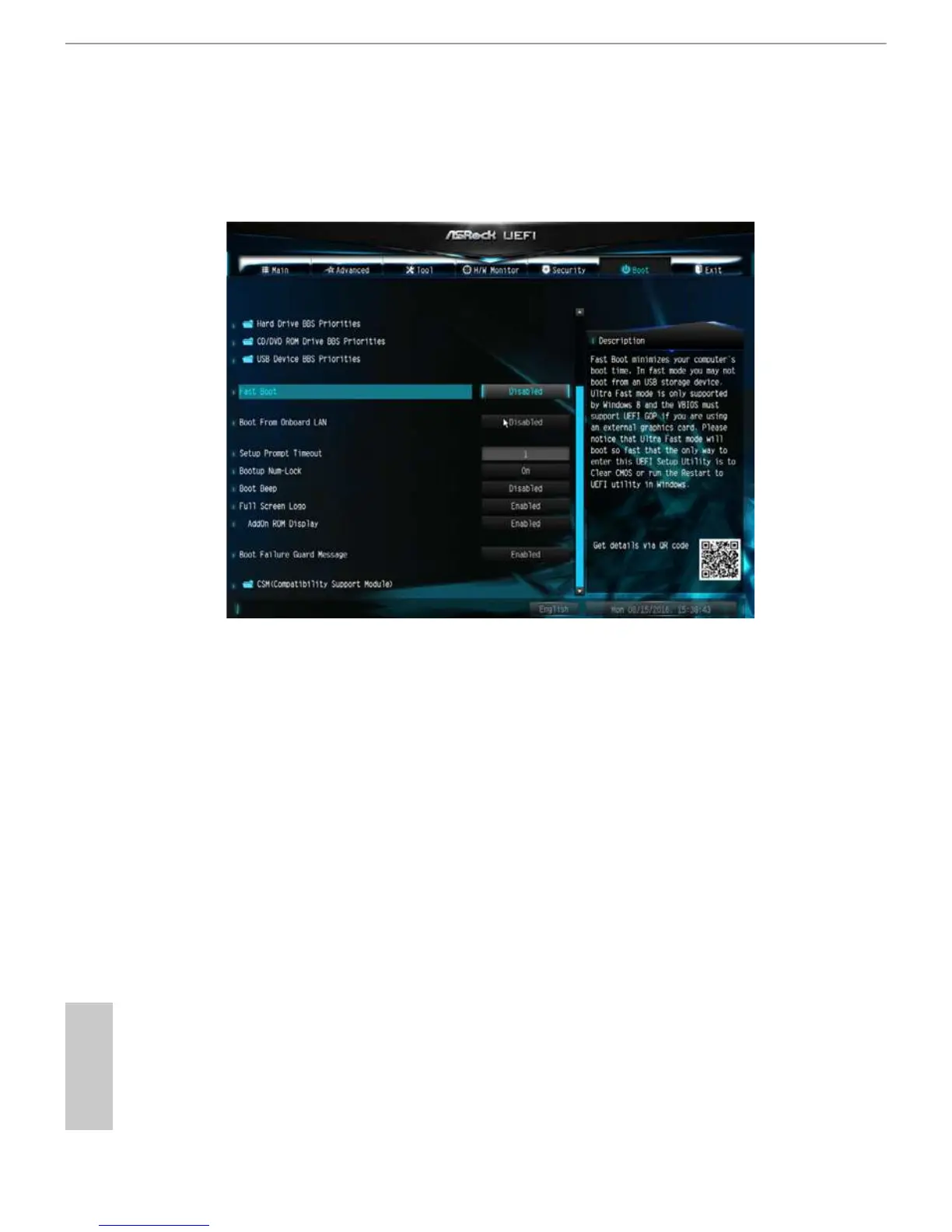

4.7 Boot Screen
is section displays the available devices on your system for you to congure the
boot settings and the boot priority.
Fast Boot
Fast Boot minimizes your computer's boot time. In fast mode you may not boot
from an USB storage device. Ultra Fast mode is only supported by Windows 8.1
and the VBIOS must support UEFI GOP if you are using an external graphics card.
Please notice that Ultra Fast mode will boot so fast that the only way to enter this
UEFI Setup Utility is to Clear CMOS or run the Restart to UEFI utility in Windows.
Boot From Onboard LAN
Allow the system to boot from the onboard LAN.
Setup Prompt Timeout
Congure the number of seconds to wait for the setup hot key.
Bootup Num-Lock
Select whether Num Lock should be turned on or o when the system boots up.
Boot Beep
Select whether the Boot Beep should be turned on or o when the system boots up. Please
note that a buzzer is needed.

ASROCK J3355B-ITX Specifications

General

Processor cores	2
Processor socket	-
Processor manufacturer	Intel
Compatible processor series	Intel® Celeron®
Maximum number of SMP processors	1
Processor frequency	2.5 GHz
USB connector type	USB Type-A
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
Audio chip	Realtek ALC887
Component for	PC
Power source type	ATX
Audio output channels	7.1 channels
Supported storage drive interfaces	SATA III
Ethernet LAN	Yes
Memory slots type	SO-DIMM
Supported memory types	DDR3-SDRAM, DDR3L-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1866 MHz
Supported memory module capacities	8GB
Harmonized System (HS) code	84733020

Weight and Dimensions

Width	- mm
