ASROCK K7S41GX2 Quick Installation Guide

22
22
2
ASRock K7S41GX2 Motherboard
EnglishEnglish
EnglishEnglish
English

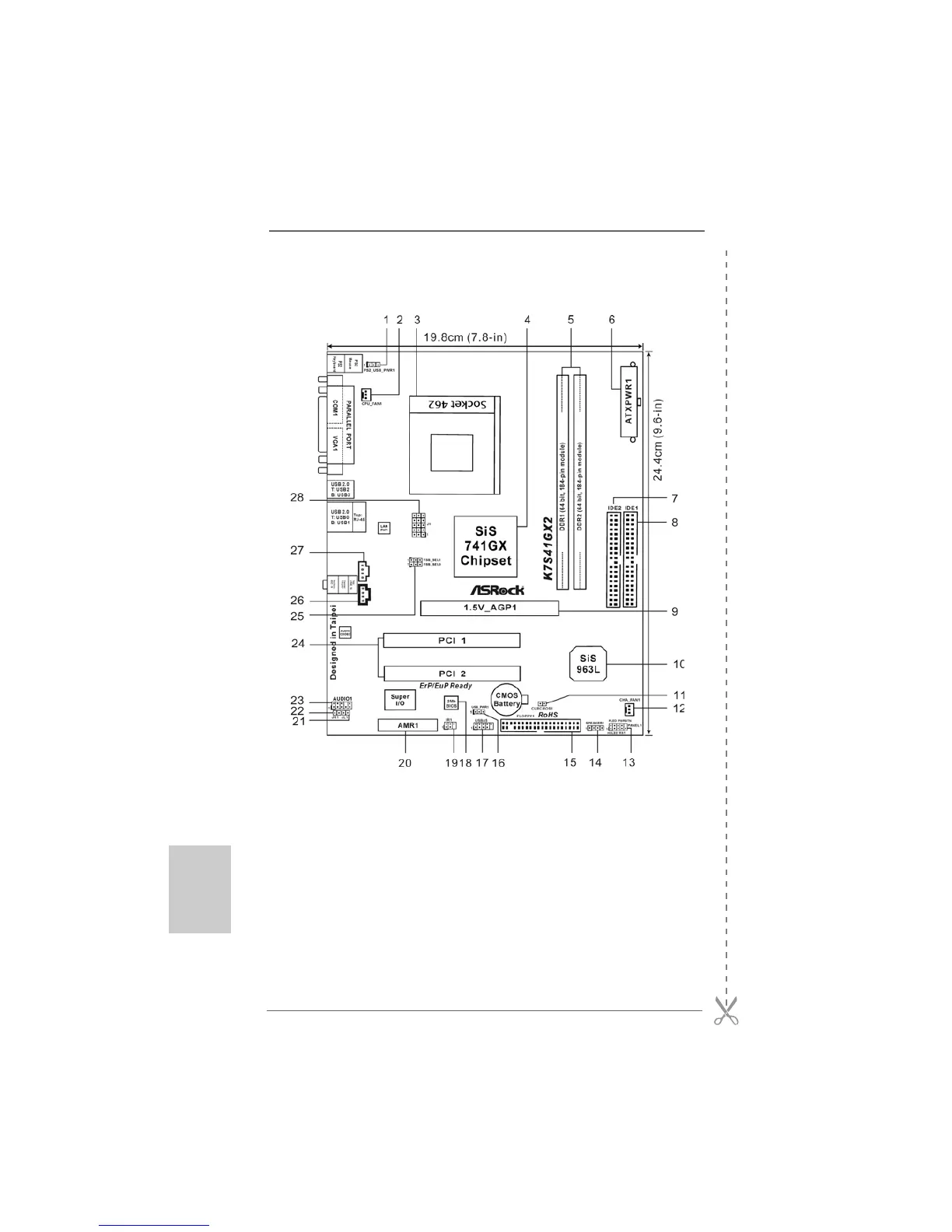

Motherboard LayoutMotherboard Layout
Motherboard LayoutMotherboard Layout
Motherboard Layout
1 PS2_USB_PWR1 Jumper 15 Floppy Connector (FLOPPY1)
2 CPU Fan Connector (CPU_FAN1) 16 USB_PWR1 Jumper
3 CPU Socket 17 USB 2.0 Connector (USB45, Blue)
4 North Bridge Controller 18 Flash Memory
5 184-pin DDR DIMM Slots (DDR 1- 2) 19 Infrared Module Connector (IR1)
6 ATX Power Connector (ATXPWR1) 20 AMR Slot (AMR1)
7 Secondary IDE Connector (IDE2, Black) 21 JL1 Jumper
8 Primary IDE Connector (IDE1, Blue) 22 JR1 Jumper
9 AGP Slot (1.5V_AGP1) 23 Front Panel Audio Connector (AUDIO1)
10 South Bridge Controller 24 PCI Slots (PCI 1- 2)
11 Clear CMOS (CLRCMOS1) 25 FSB Select Jumpers (FSB_SEL0/FSB_SEL1)
12 Chassis Fan Connector (CHA_FAN1) 26 Internal Audio Connector: CD1 (Black)
13 System Panel Connector (PANEL1) 27 Internal Audio Connector: AUX1 (White)
14 Chassis Speaker Connector (SPEAKER 1) 28 J1 Jumpers

ASROCK K7S41GX2 Specifications

General

Brand	ASROCK
Model	K7S41GX2
Category	Motherboard
Language	English
