ASROCK N3700-ITX User Manual

15
English

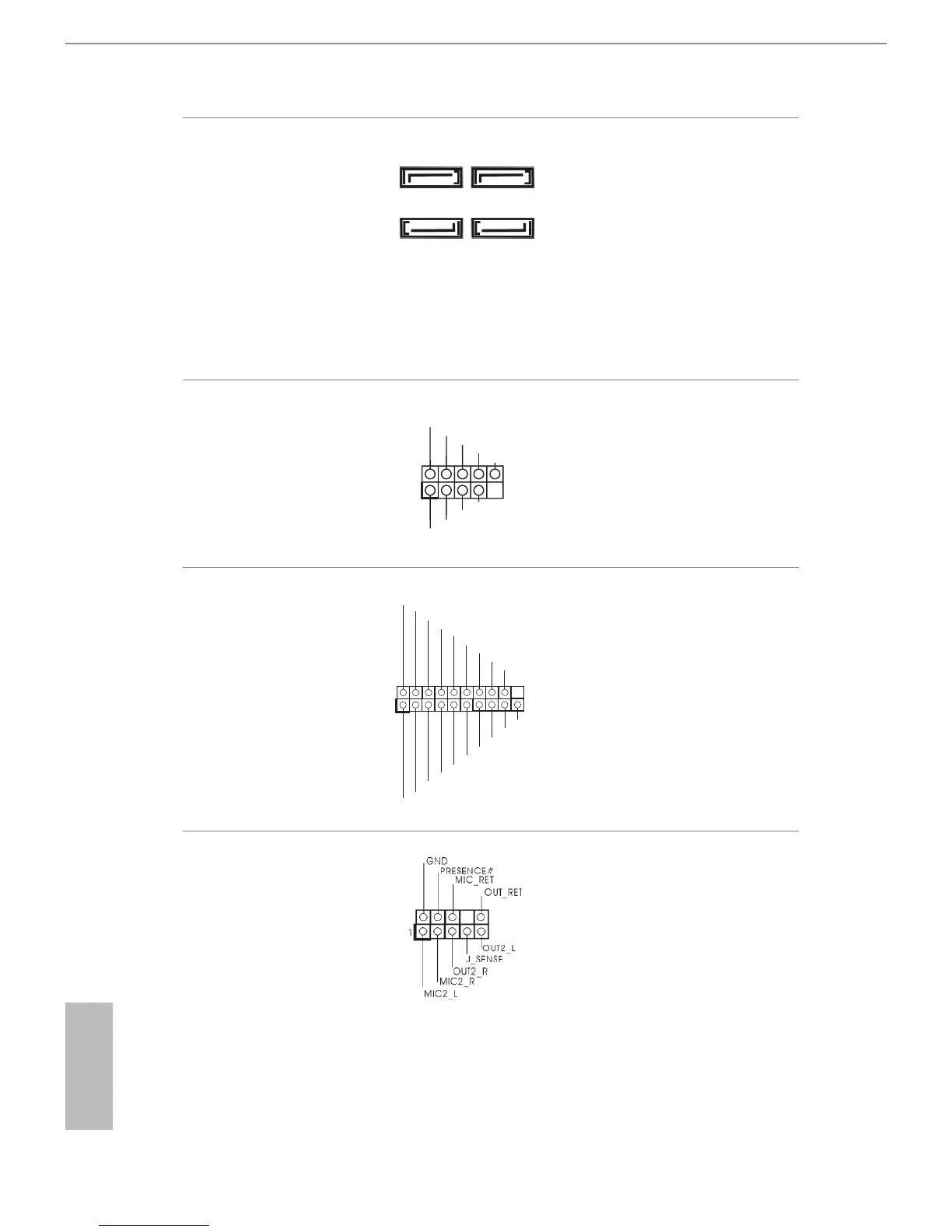

Serial ATA3 Connectors
(SATA3_1:
see p.5, No. 8)
(SATA3_2:
see p.5, No. 9)
(SATA3_A1:
see p.5, No. 15)
(SATA3_A2:
see p.5, No. 14)
ese four SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.
USB 2.0 Headers
(9-pin USB_3_4)
(see p.5, No. 7)
(9-pin USB_5_6)
(see p.5, No. 5)
Besides two USB 2.0 ports
on the I/O panel, there
are two headers on this
motherboard. Each USB
2.0 header can support
two ports.
USB 3.0 Header
(19-pin USB3_3_4)
(see p.5, No. 4)
Besides four USB 3.0
ports on the I/O panel,
there is one header on this
motherboard. is USB
3.0 header can support
two ports.
Front Panel Audio Header
(9-pin HD_AUDIO1)
(see p.5, No. 17)
is header is for
connecting audio devices
to the front audio panel.
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1
1
ID
IntA_P_D+
IntA_P_D-
GND
IntA_P_SSTX+
IntA_P_SSTX-
GND
IntA_P_SSRX+
Vbus
IntA_P_D+
IntA_P_D-
GND
IntA_P_SSTX+
IntA_P_SSTX-
GND
IntA_P_SSRX+
IntA_P_SSRX-
Vbus
IntA_P_SSRX-
SATA3_A1 SATA3_1
SATA3_A2 SATA3_2

ASROCK N3700-ITX Specifications

General

ECC	No
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	SO-DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM, DDR3L-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1600 MHz
Processor cores	4
Processor model	N3700
Processor socket	BGA 1170
Processor manufacturer	Intel
Compatible processor series	Not supported
Maximum number of SMP processors	1
Processor frequency	1.6 GHz
Number of Parallel ATA connectors	-
Supported storage drive interfaces	SATA III
Headphone outputs	5
DisplayPort version	1.1
eSATA ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
LAN controller	Realtek RTL8111GR
Ethernet interface type	Gigabit Ethernet
Audio chip	Realtek ALC892
Certification	- FCC, CE, WHQL\\r - ErP/EuP ready (ErP/EuP ready power supply is required)
Component for	PC
Power source type	ATX
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
DirectX version	11.1
Maximum resolution	3840 x 2160 pixels
Number of displays supported	3
BIOS type	UEFI AMI
BIOS memory size	64 Mbit
Cables included	SATA

Weight and Dimensions

Width	- mm
