ASROCK N3700-ITX User Manual

45
English
N3700-ITX
N3150-ITX

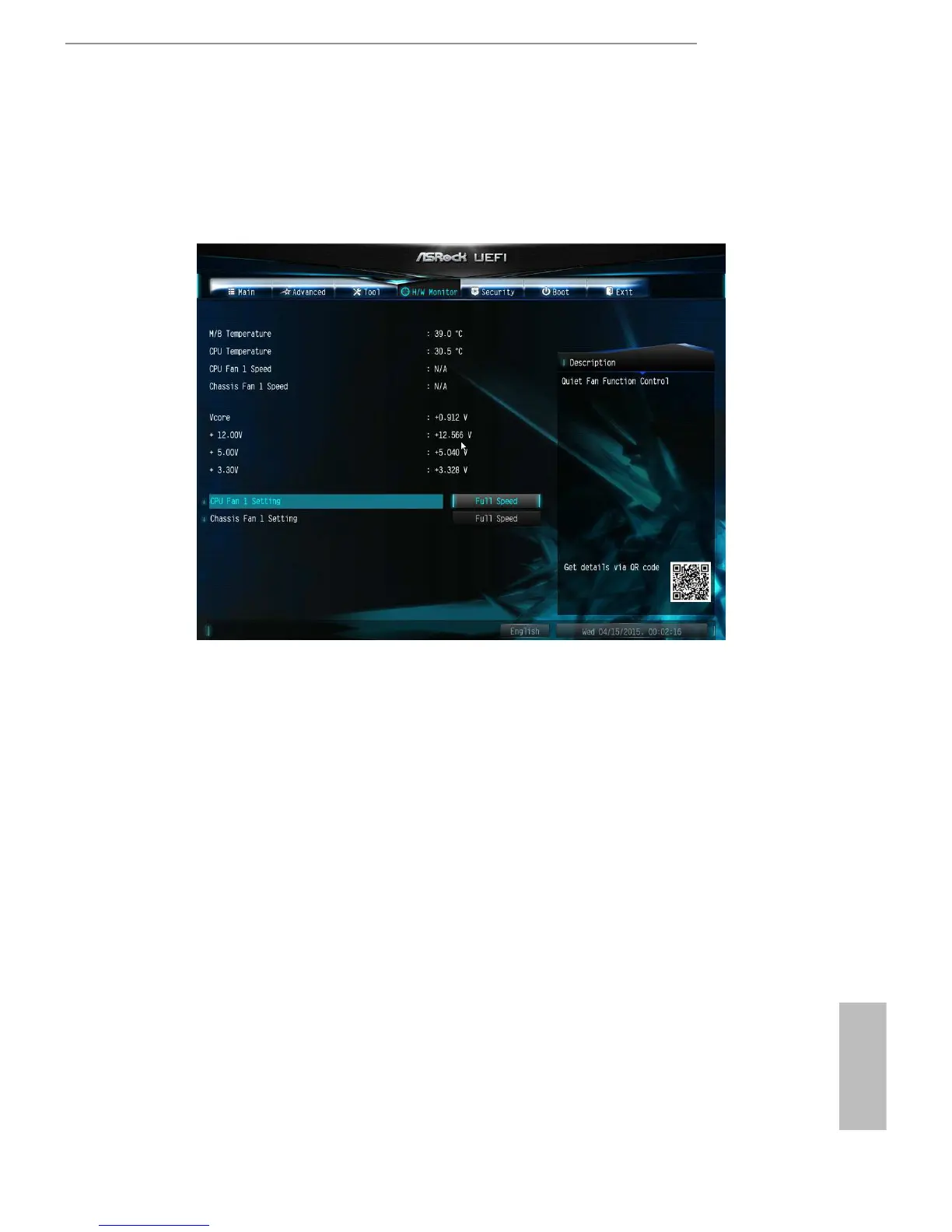

4.5 Hardware Health Event Monitoring Screen
is section allows you to monitor the status of the hardware on your system,
including the parameters of the CPU temperature, motherboard temperature, fan
speed and voltage.
CPU Fan 1 Setting
is allows you to set CPU fan 1’s speed. Conguration options: [Full On] and
[Automatic Mode]. e default value is [Full On].
Chassis Fan 1 Setting
is allows you to set chassis fan 1’s speed. Conguration options: [Full On],
[Automatic Mode] and [Manual]. e default value is [Full On].

ASROCK N3700-ITX Specifications

General

ECC	No
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	SO-DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM, DDR3L-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1600 MHz
Processor cores	4
Processor model	N3700
Processor socket	BGA 1170
Processor manufacturer	Intel
Compatible processor series	Not supported
Maximum number of SMP processors	1
Processor frequency	1.6 GHz
Number of Parallel ATA connectors	-
Supported storage drive interfaces	SATA III
Headphone outputs	5
DisplayPort version	1.1
eSATA ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
LAN controller	Realtek RTL8111GR
Ethernet interface type	Gigabit Ethernet
Audio chip	Realtek ALC892
Certification	- FCC, CE, WHQL\\r - ErP/EuP ready (ErP/EuP ready power supply is required)
Component for	PC
Power source type	ATX
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
DirectX version	11.1
Maximum resolution	3840 x 2160 pixels
Number of displays supported	3
BIOS type	UEFI AMI
BIOS memory size	64 Mbit
Cables included	SATA

Weight and Dimensions

Width	- mm
