ASROCK N68C-S UCC User Manual

w w w. a s ro ck. c o m
NVIDIA
®
GeForce 7025 / nForce 630a Chipset
N68C-S UCC
OC DNA
Save your OC settings as a profile and share with
friends. Try OC DNA now!

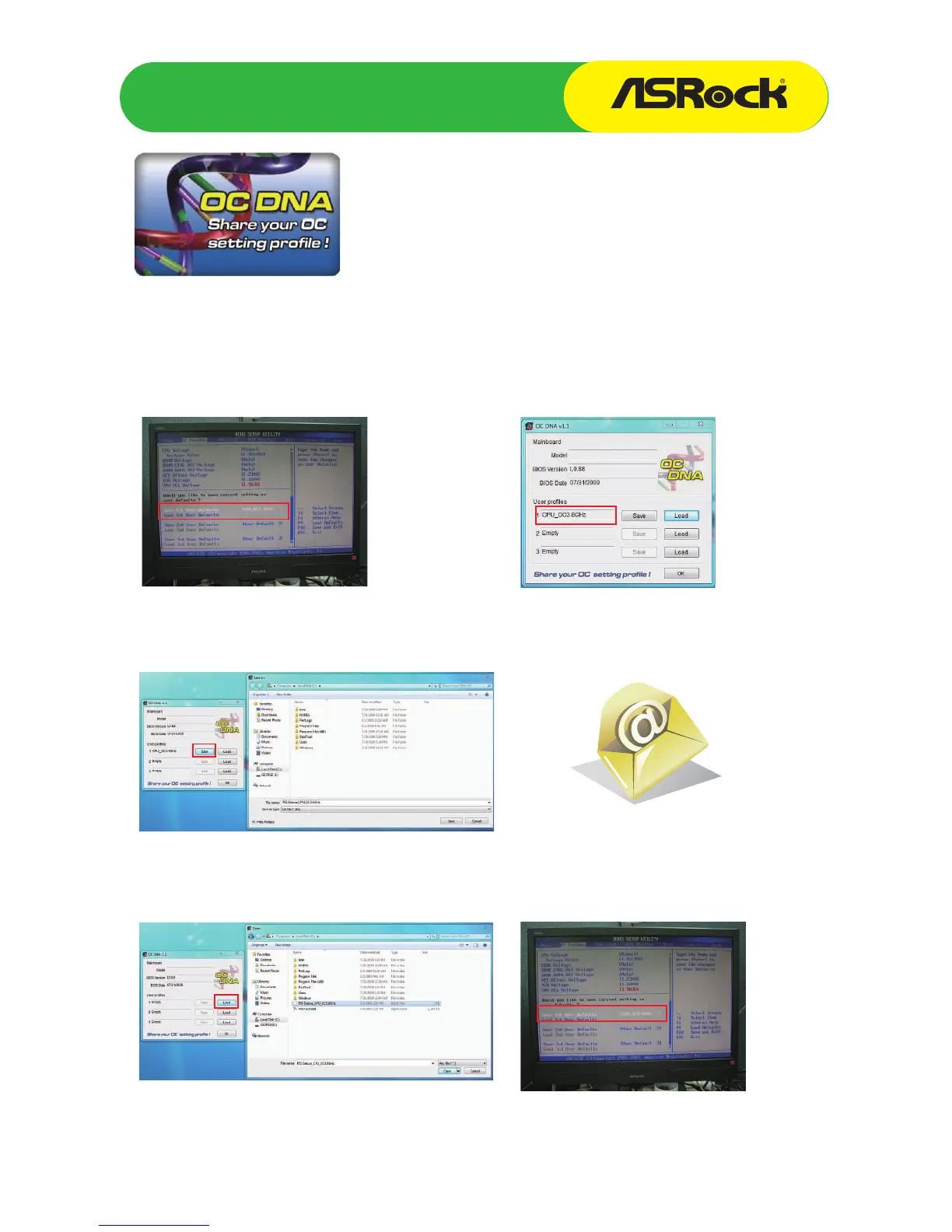

OC DNA Instruction
Step 1 Step 2
Step 3 Step 4
Save your BIOS OC settings as User Default in BIOS OC
Tweaker menu. (For example: we name this User Default setting
as “CPU_OC3.8GHz”)
Press “Save” button to save the “CPU_OC3.8GHz” OC settings as
a profile.
Execute ASRock OC DNA under OS, you will find
“CPU_OC3.8GHz” as User Profile 1.
Send the “CPU_OC3.8GHz” profile to other friends.
Step 5 Step 6
When the friend receives your “CPU_OC3.8GHz” profile, he can
press “Load” to load the “CPU_OC3.8GHz” profile in OC DNA.
After that, the friend can enter into BIOS OC Tweaker menu to
load the “CPU_OC3.8GHz” profile as his BIOS OC settings.
Now, you have successfully share your OC setting profile with your friends.
N68C-S UCC
N68C-S UCC
N68C-S UCC
*The OC DNA works only when users use the same motherboard and BIOS version.

ASROCK N68C-S UCC Specifications

General

Non-ECC	Yes
Number of memory slots	2
Maximum internal memory	8 GB
Processor manufacturer	AMD
USB 2.0 connectors	3
Number of SATA connectors	4
I/O ports	1 x ATA133 IDE
Controller interface type	SATAII
Serial ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Audio chip	VIA VT1705
Certification	FCC, CE, WHQL
Power source type	ATX
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Windows 7/7 64-bit/Vista/Vista 64-bit/XP/XP 64-bit
Maximum graphics card memory	256 MB
RAID levels	0, 1, 0+1, 5, JBOD
Networking features	Ethernet
BIOS type	AMI
ACPI version	1.1
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	208 mm
Width	244 mm
