ASROCK N68C-S Installation Guide

22
22
2
ASRock N68C-S Motherboard
EnglishEnglish
EnglishEnglish
English

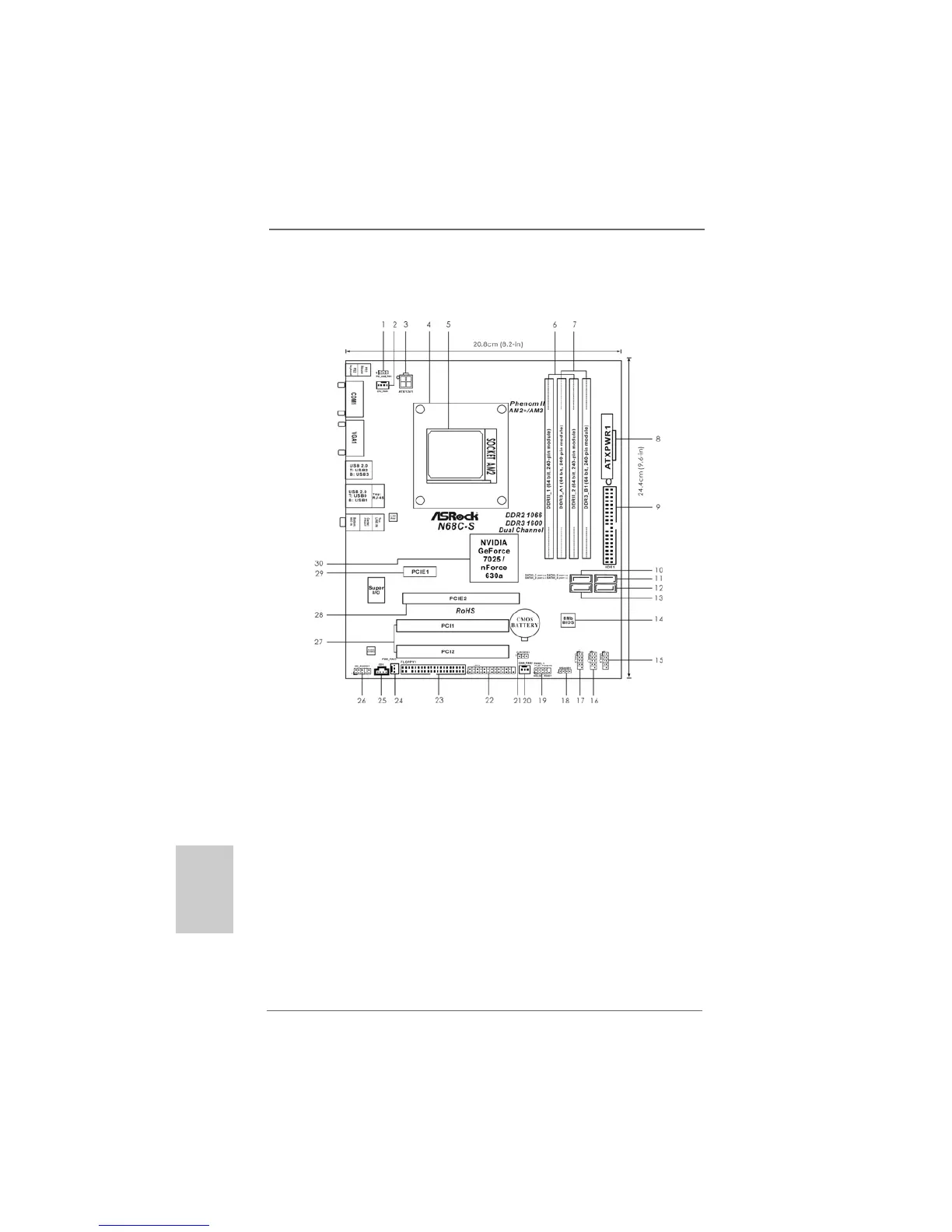

Motherboard LayoutMotherboard Layout
Motherboard LayoutMotherboard Layout
Motherboard Layout
1 PS2_USB_PW1 Jumper 16 USB 2.0 Header (USB6_7, Blue)
2 CPU Fan Connector (CPU_FAN1) 17 USB 2.0 Header (USB4_5, Blue)
3 ATX 12V Power Connector (ATX12V1) 18 Chassis Speaker Header
4 CPU Heatsink Retention Module (SPEAKER 1, Purple)
5 AM2 940-Pin CPU Socket 19 System Panel Header (PANEL1, Orange)
6 2 x 240-pin DDR2 DIMM Slots 20 Chassis Fan Connector (CHA_FAN1)
(Dual Channel: DDRII_1, DDRII_2; Yellow) 21 Clear CMOS Jumper (CLRCMOS1)
7 2 x 240-pin DDR3 DIMM Slots 22 Print Port Header (LPT1, Purple)
(Dual Channel: DDR3_A1, DDR3_B1; Blue) 23 Floppy Connector (FLOPPY1)
8 ATX Power Connector (ATXPWR1) 24 Power Fan Connector (PWR_FAN1)
9 Primary IDE Connector (IDE1, Blue) 25 Internal Audio Connector: CD1 (Black)
10 Primary SATAII Connector (SATAII_1 (PORT 0.0)) 26 Front Panel Audio Header
11 Third SATAII Connector (SATAII_3 (PORT 1.0)) (HD_AUDIO1, Lime)
12 Fourth SATAII Connector (SATAII_4 (PORT 1.1)) 27 PCI Slots (PCI1- 2)
13 Secondary SATAII Connector 28 PCI Express x16 Slot (PCIE2)
(SATAII_2 (PORT 0.1)) 29 PCI Express x1 Slot (PCIE1)
14 SPI Flash Memory (8Mb) 30 NVIDIA GeForce 7025 / nForce 630a
15 USB 2.0 Header (USB8_9, Blue)

ASROCK N68C-S Specifications

General

Non-ECC	Yes
Number of memory slots	4
Maximum internal memory	8 GB
Processor socket	Socket AM3
Processor manufacturer	AMD
USB 2.0 connectors	3
Number of Parallel ATA connectors	1
PS/2 ports quantity	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Certification	FCC, CE, WHQL
Power source type	ATX
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Windows 7, Vista, XP
Graphics card	GeForce 7025
Maximum graphics card memory	256 MB
RAID levels	0, 1, 0+1
Networking features	10/100 Mbps
ACPI version	1.1
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	208 mm
Width	244 mm
