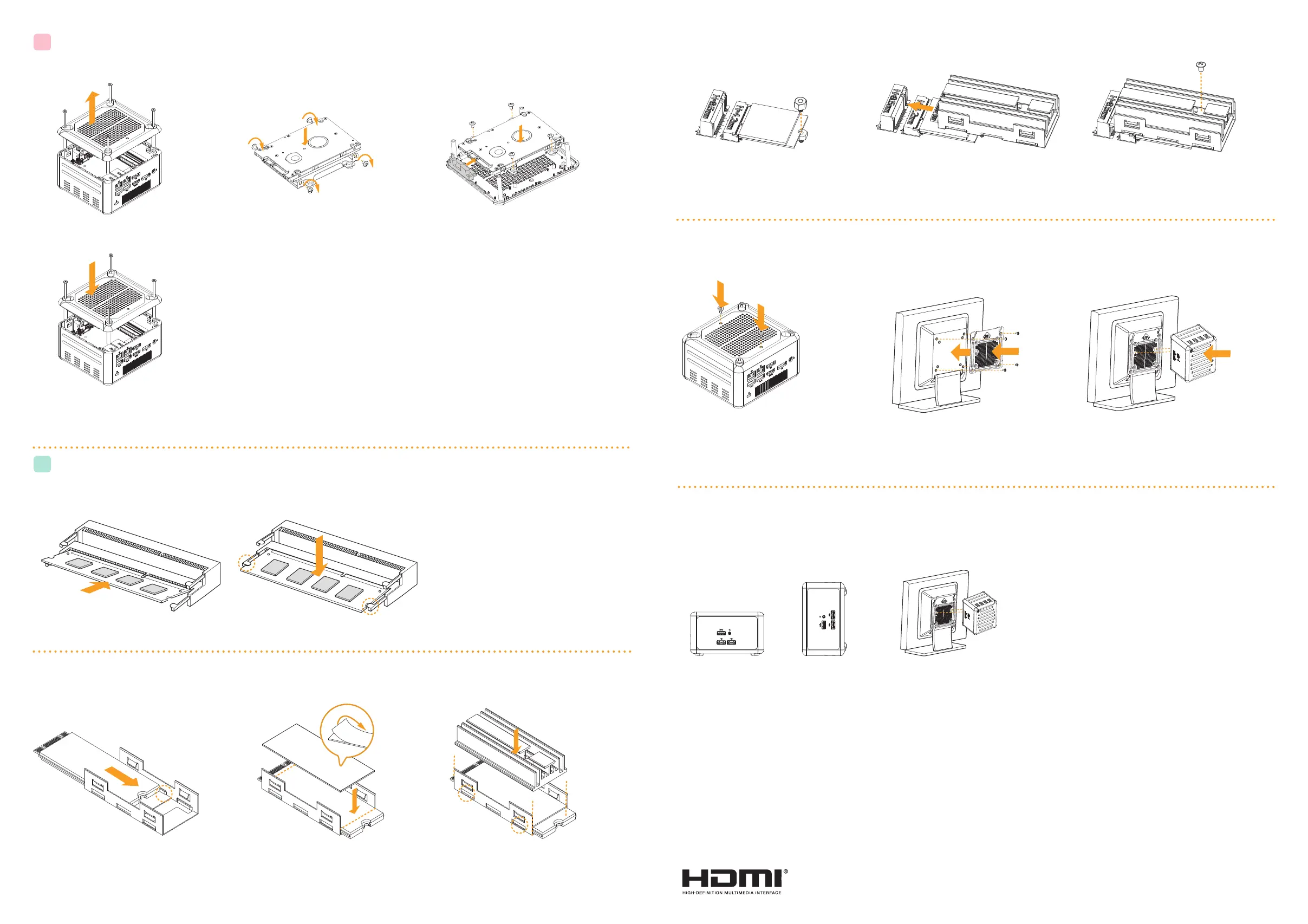

2.5-inch Hard Drive: How to Install the Hard Drive
C
SO-DIMM Slots: How to Install the Memory Modules
(DDR4 (1.2V))
D
1. Remove the four screws on the bottom case.
en li up and remove the bottom panel.
2. Attach the HDD to the hard drive
mounting bracket and secure it using
the four screws.
3. Attach the HDD assembly to the bottom panel
and secure it using the four screws. Connect
the SATA Data and Power Cable to the HDD.
4. en reinstall the bottom panel.
1. Carefully insert the SO-DIMM memory modules
into the slot at a 30-degree angle.
2. Push down until the modules snap into place.
Note:
- e NUC BOX requires DDR4 SO-DIMM (1.2V).
- For dual channel conguration, you always need to
install identical (the same brand, speed, size and
chip-type) DDR4 SO-DIMM pairs.
*For NUC BOX series, it is not recommended to install 2.5” HDD. If you install the 2.5” HDD, please keep the NUC BOX in a vertical position to ensure
better cooling performance.
如何安裝 M.2散熱片 / So installieren Sie den M.2-Kühlkörper / Comment installer le dissipateur thermique M.2 / Come installare il dissipatore M.2 / Cómo instalar el disipador M.2 / Инструкции
по установке радиатора М.2 / Como instalar o M.2 Heatsink / How to Install the M.2 Heatsink / M.2 방열판 설치 방법 / M.2 ヒートシンクの取り付け方法
How to Install the M.2 Heatsink
1. Gently insert the M.2 module, along the
guiding tabs, into the heatsink bracket.
2. Remove the membranes from both sides of
the thermal pad. en paste the thermal pad
onto the M.2 module.
3. Align the heatsink to the edge of the bracket and
press down the heatsink into the bracket until it
clips into place.
e terms HDMI® and HDMI High-Denition Multimedia Interface, and the HDMI logo are trademarks
or registered trademarks of HDMI Licensing LLC in the United States and other countries.
NUC BOX 系列擺放 / Positionen der NUC BOX / Positions de la série NUC BOX / Posizioni della NUC BOX / Posiciones de la NUC BOX / Положения серии NUC BOX / Posições de NUC BOX /
NUC BOX 시리즈의 위치 / NUC BOX シリーズの位置
如何安裝 VESA 支架/ So installieren Sie die VESA-Halterung / Comment installer le support VESA / Come installare il supporto VESA / Cómo instalar el soporte VESA /
Установка кронштейна VESA / Como Instalar a Braçadeira VESA / VESA 브래킷을 설치하는 방법 / VESA ブラケットの取り付け方法
How to Install the VESA Bracket
1. Attach the two screws to the base of the
NUC BOX.
2. Attach the VESA Bracket to the rear of
a compatible display using the four screws.
*Choose mounting holes depending on the
mounting hole pattern of your LCD screen
(75 mm × 75 mm or 100 mm × 100 mm).
3. Mount the NUC BOX by sliding
it into place.
Vertical Position Wall-mountedHorizontal Position
Positions of the NUC BOX
*Please note that keeping the NUC BOX series in a vertical position will ensure better cooling performance.
e NUC BOX can be placed in vertical or horizontal position.
How to install a M.2 M-key module with a M.2 E-Key module
1. Remove the default screw securing the
M.2 E-Key (Wi-Fi) module, and replace
it with the hexagon stando.
2. Carefully insert the M.2 M-key Module
with heatstink into the slot.
3. Tighten the screw to secure the M.2 module
and the heatsink to the motherboard.
