ASROCK PHANTOM GAMING B650E PG-ITX WiFi User Manual

English
46

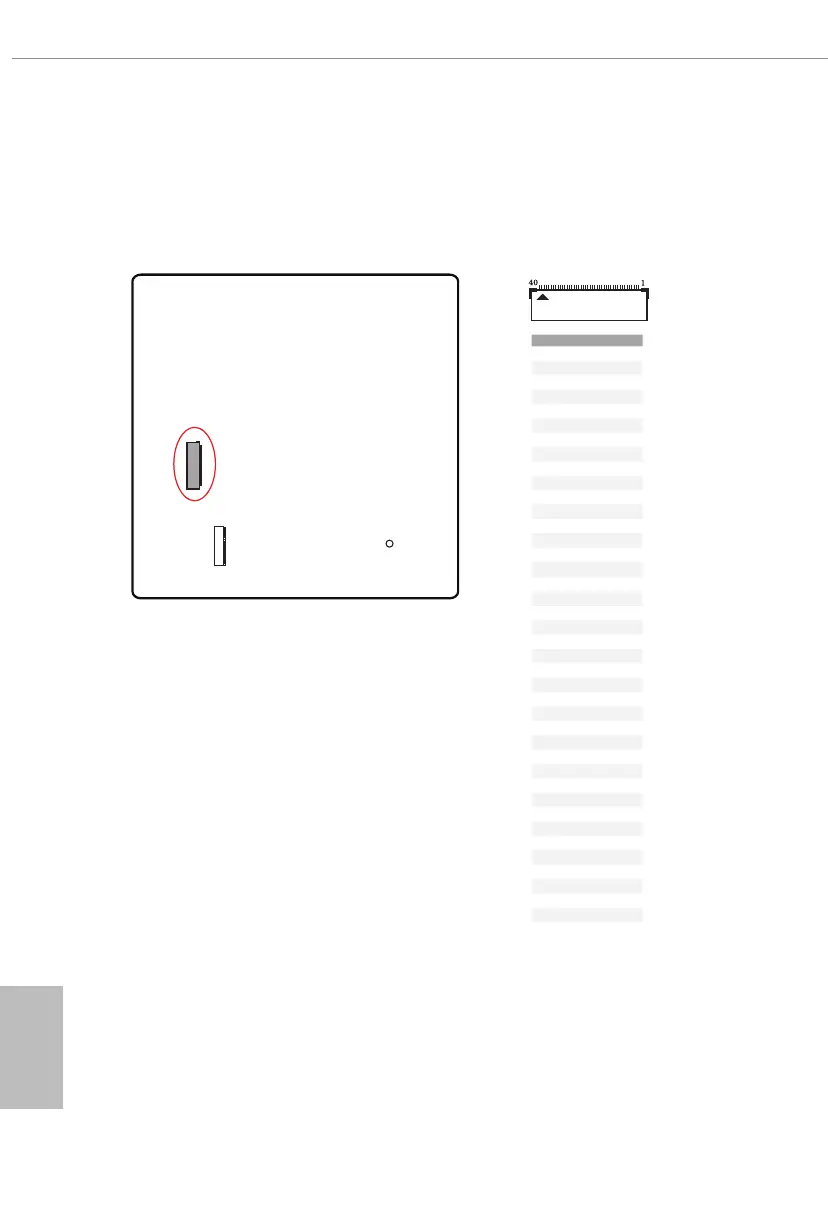

eDP Signal Connector
(40-pin EDP1) (see p.7, No. 18)
is connector on the bottom side of the motherboard is for an LCD monitor that
supports an internal embedded DisplayPort (eDP).
*Please refer to page 53 for further instructions on how to adjust the brightness.
PIN SIGNAL
1
N/A
2
LCD_BLT_VCC
3
LCD_BLT_VCC
4
LCD_BLT_VCC
5
LCD_BLT_VCC
6
N/A
7
N/A
8
eDP_VARY_BL
9
eDP_BLON
10
BKT_GND
11
BKT_GND
12
BKT_GND
13
BKT_GND
14
eDP_HPD_CON
15
PNL_GND
16
PNL_GND
17
PNL_GND
18
PNL_GND
19
N/A
20
+LVDD
21
+LVDD
22
+LVDD
23
+LVDD
24
GND
25
eDP_AUX#_CON
26
eDP_AUX_CON
27
GND
28
eDP_TX0_CON
29
eDP_TX#0_CON
30
GND
31
eDP_TX1_CON
32
eDP_TX#1_CON
33
GND
34
N/A
35
N/A
36
GND
37
N/A
38
N/A
39
GND
40
N/A

ASROCK PHANTOM GAMING B650E PG-ITX WiFi Specifications

General

Chipset	AMD B650E
Form Factor	Mini-ITX
Memory Slots	2 x DIMM
Max Memory	64GB
PCIe Slots	1 x PCIe 5.0 x16
Bluetooth	Bluetooth 5.2
Ethernet	2.5 Gigabit LAN
CPU Socket Type	AM5
Memory Speed	DDR5 6400+(OC)
Storage Interface	4 x SATA3
Wireless	Wi-Fi 6E
USB Ports	1 x USB 3.2 Gen2x2 Type-C
Video Outputs	1 x HDMI, 1 x DisplayPort
