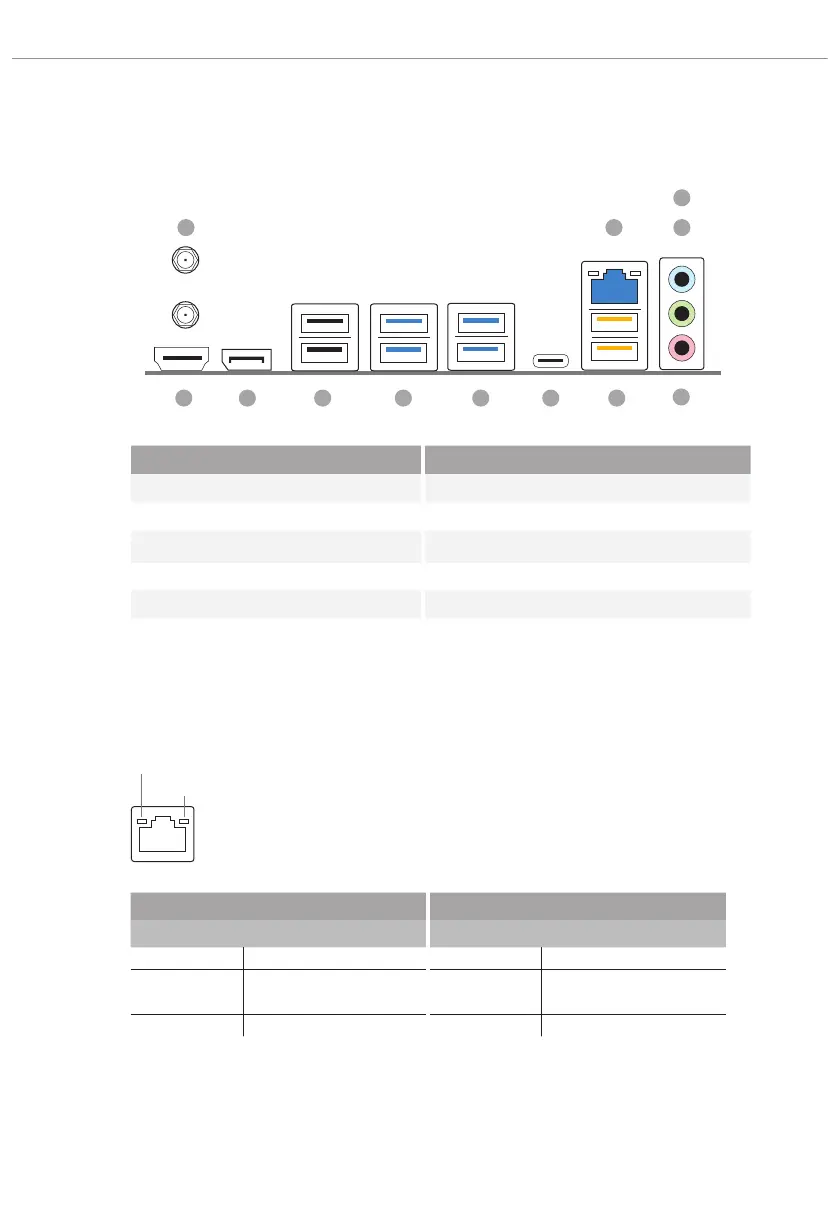

1.4 I/O Panel
No. Description No. Description
1 Antenna Ports 7 USB 3.2 Gen1 Type-C Port (USB32_TC1)
2 2.5G LAN RJ-45 Port* 8 USB 3.2 Gen2 Ports (USB32_34)
3 Line In (Light Blue)** 9 USB 3.2 Gen1 Ports (USB32_12)
4 Front Speaker (Lime)** 10 USB 2.0 Ports (USB_12)
5 Microphone (Pink)** 11 DisplayPort 1.4
6 USB 3.2 Gen1 Ports (USB32_56)*** 12 HDMI Port
ACT/LINK LED
SPEED LED
LAN Port
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange
100Mbps/1Gbps
connection
On Link Green 2.5Gbps connection
11 1012 89 7 6
