2.16 M.2 SSD Card Installation Guide (M2_3 and M2_4)
e M.2 is a small size and versatile card edge connector that aims to replace mPCIe and
mSATA. e Hyper M.2 Sockets (M2_3 and M2_4, Key M) support type 2260/2280 PCIe
Gen4x4 (64 Gb/s) mode.
Installing the M.2 SSD Card

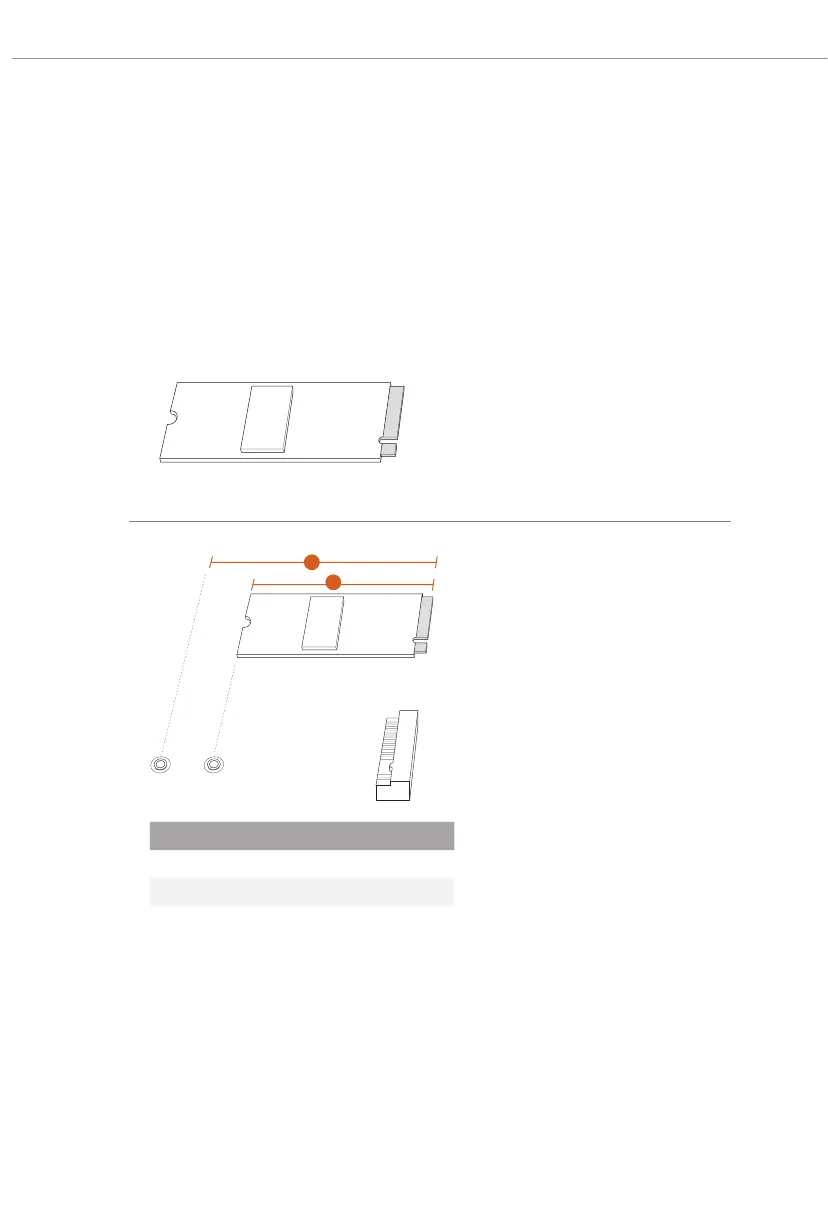

Step 1
Prepare a M.2 SSD card.
Step 2
Depending on the PCB type and
length of your M.2 SSD card, nd
the corresponding nut location to be
used.
No. 1 2
Nut Location A B
PCB Length 6cm 8cm
Module Type Type2260 Type 2280
1
2
AB
