ASROCK PHANTOM GAMING Z790 RIPTIDE WiFi User Manual

52

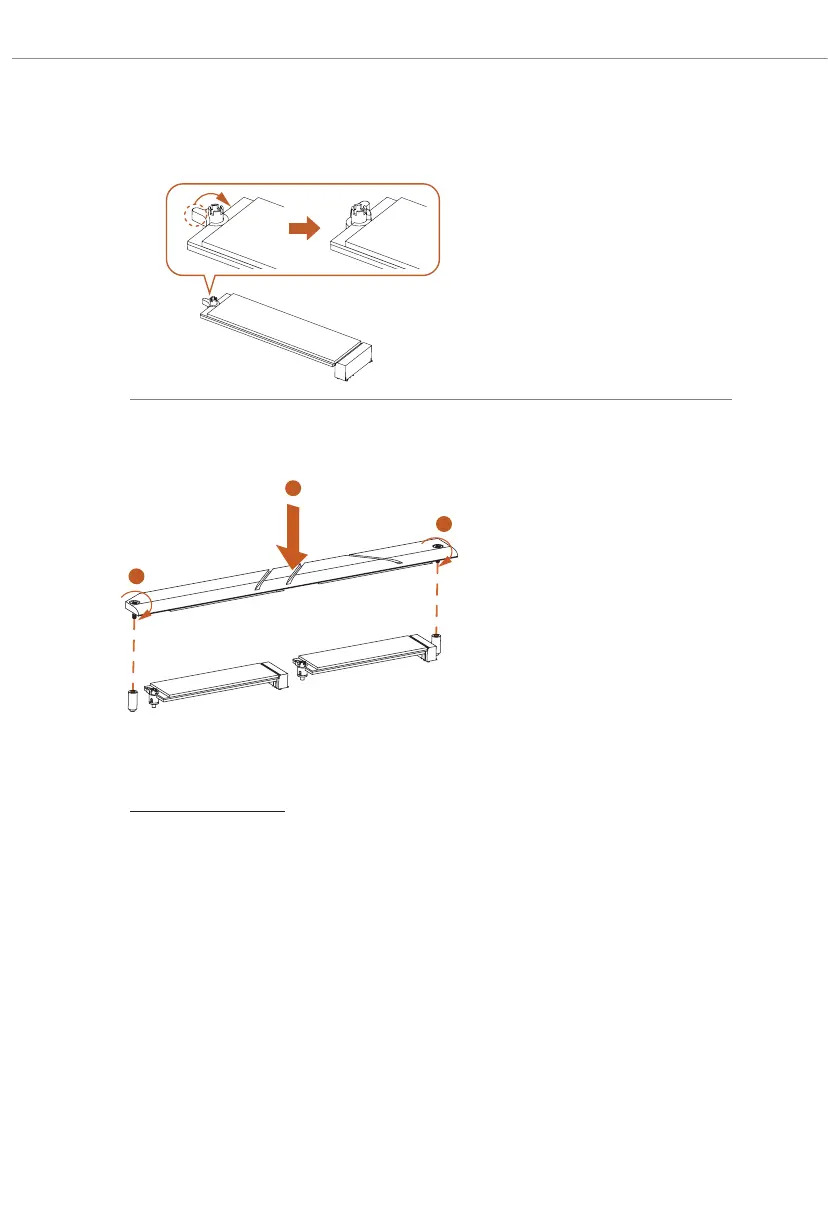

Step 6
Ensure that the notch at the end of
the M.2 SSD card aligns with the nut.
en secure the M.2 SSD card by
turning the nut lock clockwise to its
locked position.
Skip Step 7 if your M.2 SSD card is
Type 2260.
Step 7
Tighten the screw with a screwdriver
to secure the M.2 heatsink into place.
Please do not overtighten the screw
as this might damage the M.2
heatsink.
1
2
2
For the latest updates of M.2 SSD card support list, please visit our website for details:
http://www.asrock.com
