English
Q1900DC-ITX
3

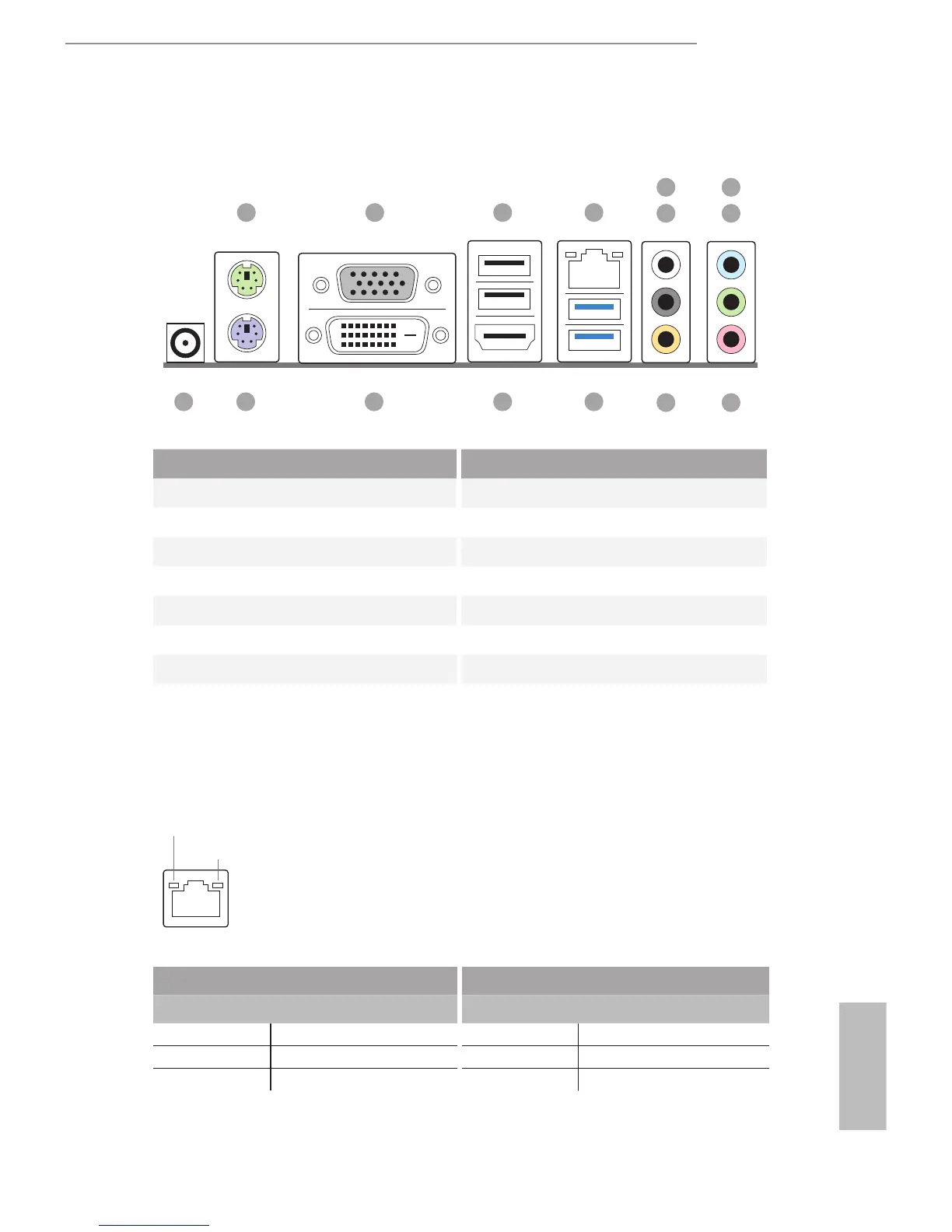

I/O Panel
No. Description No. Description
1 PS/2 Mouse Port 9 Microphone (Pink)
2 D-Sub Port 10 Central / Bass (Orange)
3 USB 2.0 Ports (USB_34) 11 USB 3.0 Ports (USB3_34)
4 LAN RJ-45 Port* 12 HDMI Port
5 Side Speaker (Gray) 13 DVI-D Port
6 Rear Speaker (Black) 14 PS/2 Keyboard Port
7 Line In (Light Blue) 15 DC Jack***
8 Front Speaker (Lime)**
1 3 4
111214
2
13
910
6
5
8
7
15
* ere are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
