I/O Panel

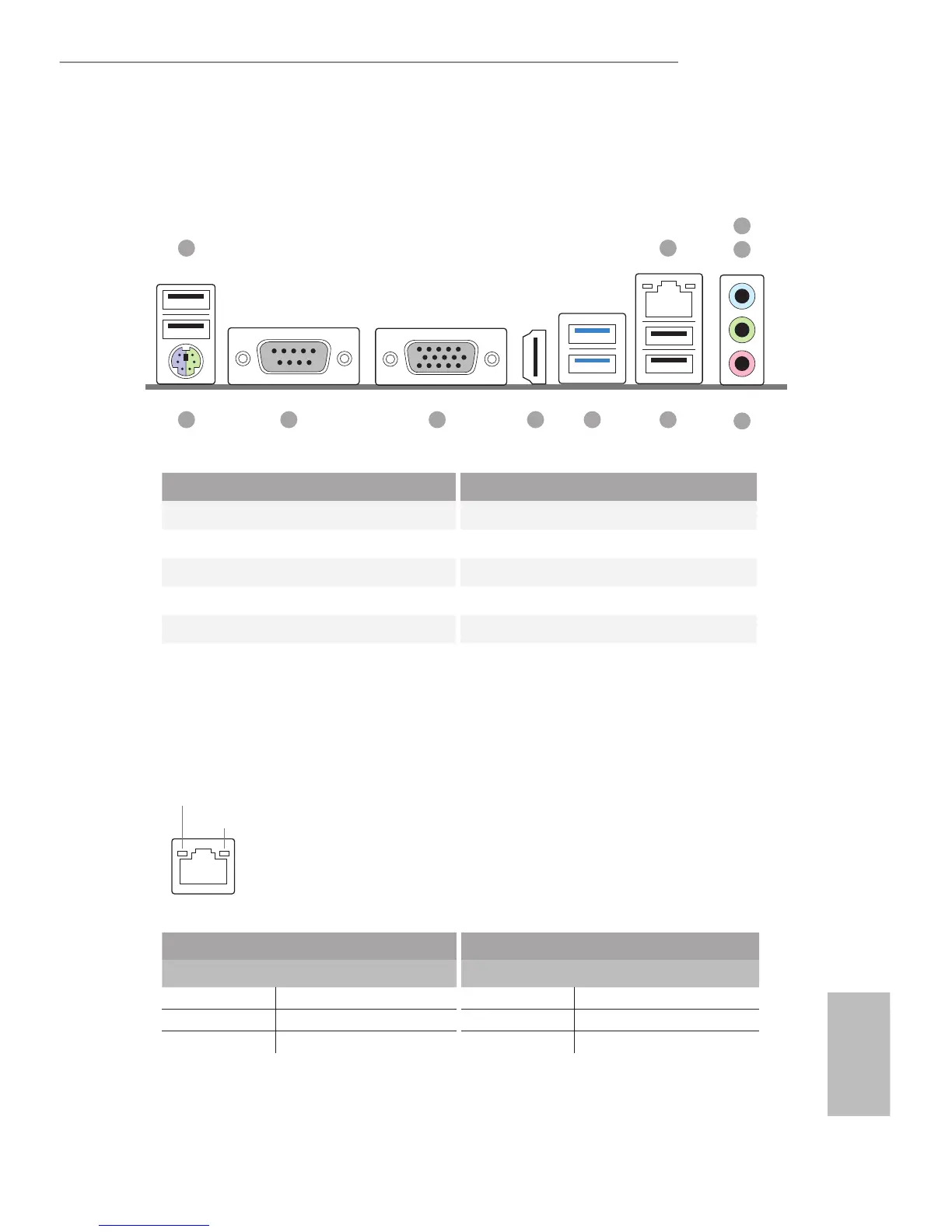

No. Description No. Description
1 USB 2.0 Ports (USB01) 7 USB 3.0 Ports (USB3_0_1)
2 LAN RJ-45 Port* 8 HDMI Port
3 Line In (Light Blue)** 9 D-Sub Port
4 Front Speaker (Lime)** 10 COM Port
5 Microphone (Pink)** 11 PS/2 Mouse/Keyboard Port
6 USB 2.0 Ports (USB_23)
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
1 2
6711 8910
4
5
3
