Z690 PG Riptide

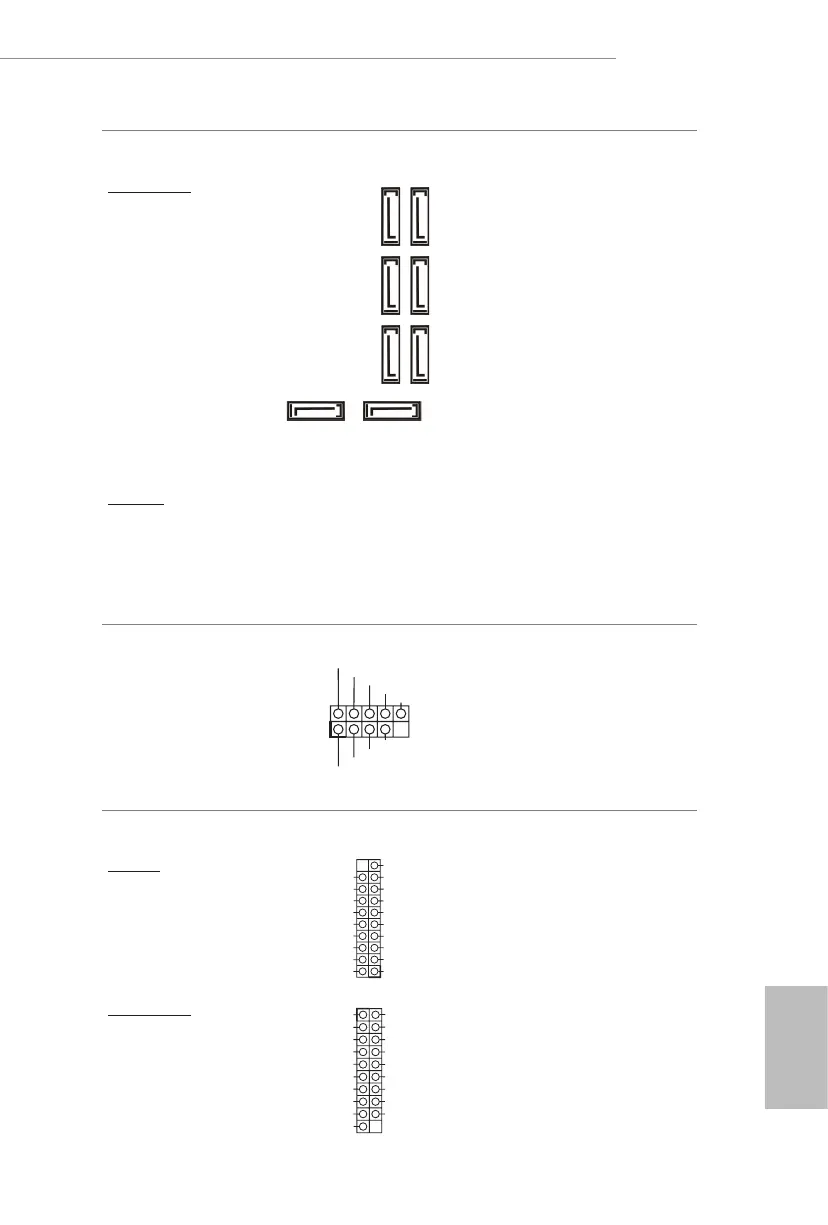

Serial ATA3 Connectors
Right Angle:
(SATA3_0:
see p.7, No. 17) (Upper)
(SATA3_1:
see p.7, No. 17) (Lower)
(SATA3_2:
see p.7, No. 16) (Upper)
(SATA3_3:
see p.7, No. 16) (Lower)
(SATA3_4:
see p.7, No. 15) (Upper)
(SATA3_5:
see p.7, No. 15) (Lower)
Vertical:
(SATA3_6:
see p.7, No. 21)
(SATA3_7:
see p.7, No. 22)
ese eight SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.
* If M2_3 is occupied by
a SATA-type M.2 device,
SATA3_7 will be disabled.
USB 2.0 Headers
(9-pin USB_3_4)
(see p.7, No. 26)
(9-pin USB_5_6)
(see p.7, No. 25)
ere are two headers
on this motherboard.
Each USB 2.0 header can
support two ports.
USB 3.2 Gen1 Headers
Vertical:
(19-pin USB3_5_6)
(see p.7, No. 11)
Right Angle:
(19-pin USB3_3_4)
(see p.7, No. 14)
ere are two headers on
this motherboard. Each
USB 3.2 Gen1 header can
support two ports.
