ASROCK Z690M PG Riptide/D5 Manual

English
3
Z690M PG Riptide/D5

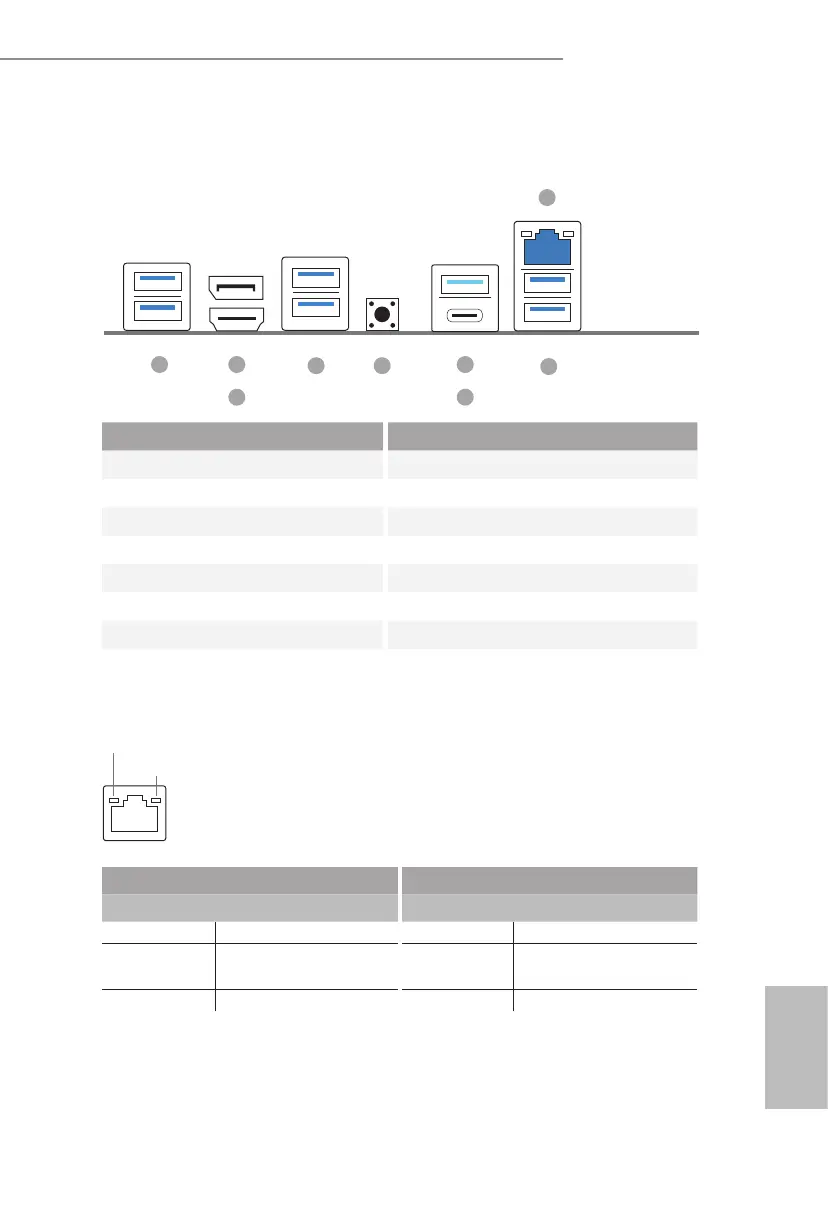

I/O Panel
No. Description No. Description
1 2.5G LAN RJ-45 Port* 7 USB 3.2 Gen2 Type-C Port
2 Line In (Light Blue)** (USB32_TC_1)
3 Front Speaker (Lime)** 8 BIOS Flashback Button
4 Microphone (Pink)** 9 USB 3.2 Gen1 Ports (USB3_2_3)***
5 USB 3.2 Gen1 Ports (USB3_4_5) 10 DisplayPort 1.4
6 USB 3.2 Gen2 Type-A Port 11 HDMI Port
(USB32_TA_1)*** 12 USB 3.2 Gen1 Ports (USB3_0_1)
*ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange
100Mbps/1Gbps
connection
On Link Green 2.5Gbps connection
5
1
12 10
11
9 8
6
7
ACT/LINK LED
SPEED LED
LAN Port

ASROCK Z690M PG Riptide/D5 Specifications

General

Processor socket	LGA 1700
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Maximum internal memory	128 GB
RAID levels	0, 1, 5, 10
Supported storage drive types	HDD & SSD
Number of storage drives supported	6
Supported storage drive interfaces	M.2, SATA III
Number of M.2 (M) slots	2
PCI Express x16 (Gen 5.x) slots	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Parallel processing technology support	-
USB connector type	USB Type-A, USB Type-C
DisplayPort version	1.4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Wi-Fi	No
LAN controller	Killer E3100G
Ethernet interface type	2.5 Gigabit Ethernet
Audio chip	Realtek ALC897
Certification	- FCC, CE - ErP/EuP ready
Component for	PC
Motherboard chipset	Intel Z690
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 10 x64, Windows 11 x64
BIOS type	UEFI AMI
ACPI version	6.0
BIOS memory size	128 Mbit
System Management BIOS (SMBIOS) version	2.7
Harmonized System (HS) code	84733020
Weight	1000 g

Weight and Dimensions

Width	244 mm
Height	60 mm
