ASROCK Z75 Pro3 - Motherboard Layout

13

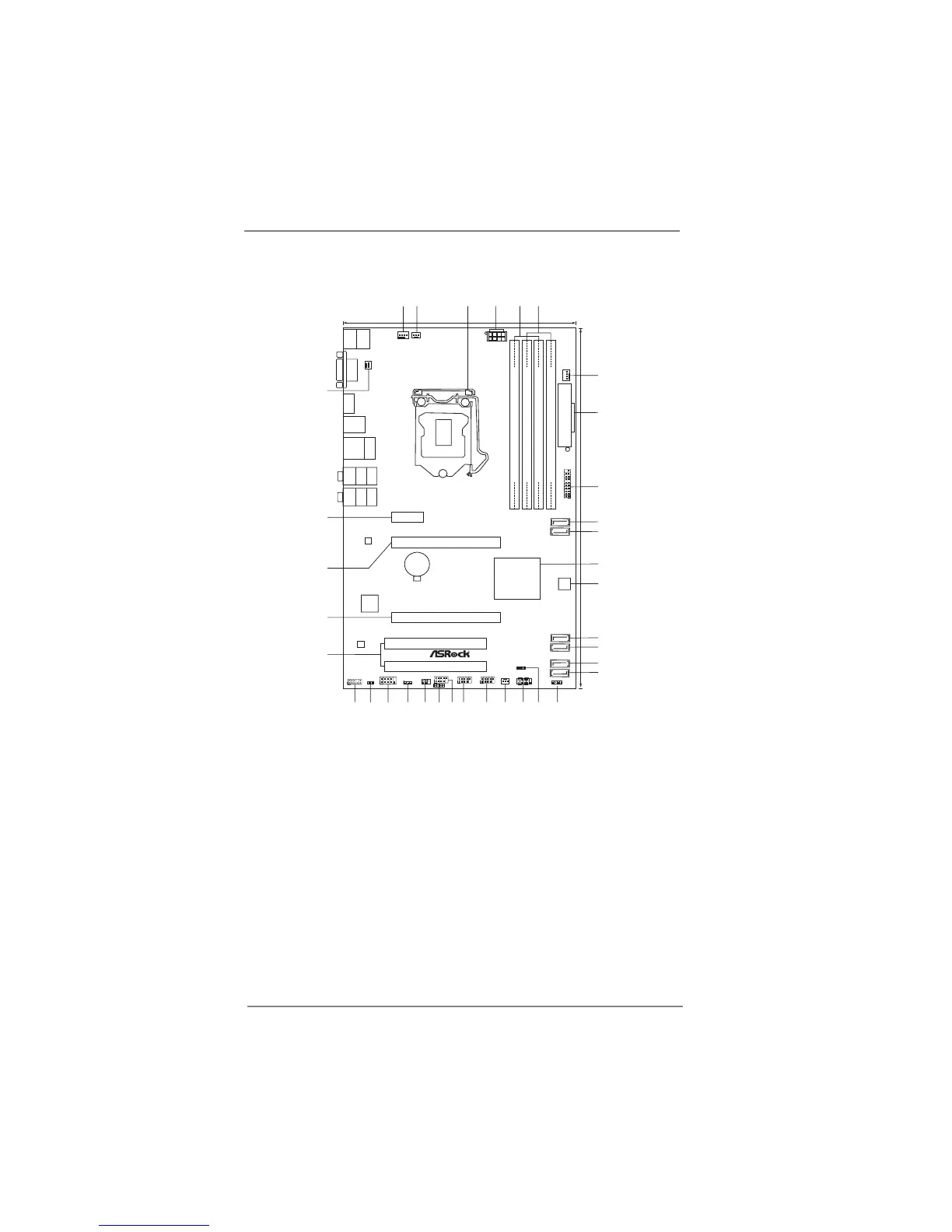

1.3 Motherboard Layout
1 CPU Fan Connector (CPU_FAN1)
2 CPU Fan Connector (CPU_FAN2)
3 1155-Pin CPU Socket
4 ATX 12V Power Connector (ATX12V1)
5 2 x 240-pin DDR3 DIMM Slots
(DDR3_A1, DDR3_B1, Black)
6 2 x 240-pin DDR3 DIMM Slots
(DDR3_A2, DDR3_B2, Black)
7 Chassis Fan Connector (CHA_FAN1)
8 ATX Power Connector (ATXPWR1)
9 USB 3.0 Header (USB3_0_1, Black)
10 SATA3 Connectors (SATA3_1, Gray)
11 SATA3 Connectors (SATA3_0, Gray)
12 Intel Z75 Chipset
13 SPI Flash Memory (64Mb)
14 SATA2 Connectors (SATA2_2, Black)
15 SATA2 Connectors (SATA2_3, Black)
16 SATA2 Connectors (SATA2_4, Black)
17 SATA2 Connectors (SATA2_5, Black)
18 Chassis Speaker Header (SPEAKER1, Black)
19 Power LED Header (PLED1)
20 System Panel Header (PANEL1, Black)
21 Chassis Fan Connector (CHA_FAN2)
22 USB 2.0 Header (USB4_5, Black)
23 USB 2.0 Header (USB6_7, Black)
24 USB 2.0 Header (USB8_9, Black)
25 Consumer Infrared Module Header
(CIR1, Gray)
26 Infrared Module Header (IR1)
27 Clear CMOS Jumper (CLRCMOS1)
28 COM Port Header (COM1)
29 HDMI_SPDIF Header
(HDMI_SPDIF1, Black)
30 Front Panel Audio Header
(HD_AUDIO1, Black)
31 PCI Slots (PCI1-2, Black)
32 PCI Express 2.0 x16 Slot (PCIE3, Black)
33 PCI Express 3.0 x16 Slot (PCIE2, Black)
34 PCI Express 2.0 x1 Slot (PCIE1, Black)
35 Power Fan Connector (PWR_FAN1)
Intel
Z75
SATA2_2
SATA2_3
CHA_FAN2
64Mb
BIOS
DDR3_A2 (64 bit, 240-pin module)
DDR3_A1 (64 bit, 240-pin module)
DDR3_B2 (64 bit, 240-pin module)
DDR3_B1 (64 bit, 240-pin module)
ATX12V1
CPU_FAN1
CMOS
Battery
Super
I/O
USB 2.0
T: U SB 0
B: USB1
PS2
Keyboard
ATXPWR1
1
USB3_0_1
CPU_FAN2
AUDIO
CODEC
LAN
PHY
1
HD_AUDIO1
1
HDMI_SPDIF1
COM1
1
CLRCMOS1
1
IR1
1
USB8_9
1
CIR1
1
USB6_7
1
HDLED RESET
PLED PWRBTN
PANEL1
1
PLED1
1
1
SPEAKER1
PCIE1
PCIE2
PCIE3
PCI1
CHA_FAN1
PWR_FAN1
VGA1
HDMI1
USB 3.0
T:USB2
B: USB3
Top:
RJ-45
USB 2.0
T: USB2
B: USB3
19.3cm (7.6 in)
30.5cm (12.0 in)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
18
19
15
16
17
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
DDR3 2800+
RoHS
Front USB 3.0
Z75 Pro3
XFast USB
XFast LAN
PCI Express 3.0
ErP/EuP Ready
X ast RAMF
PCI2
SATA2_4
SATA2_5
SATA3_1
SATA3_0
Top:
SIDE SPK
Center:
REAR SPK
Bottom:
CTR BASS
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
USB4_5
1
