4.2 Main Screen

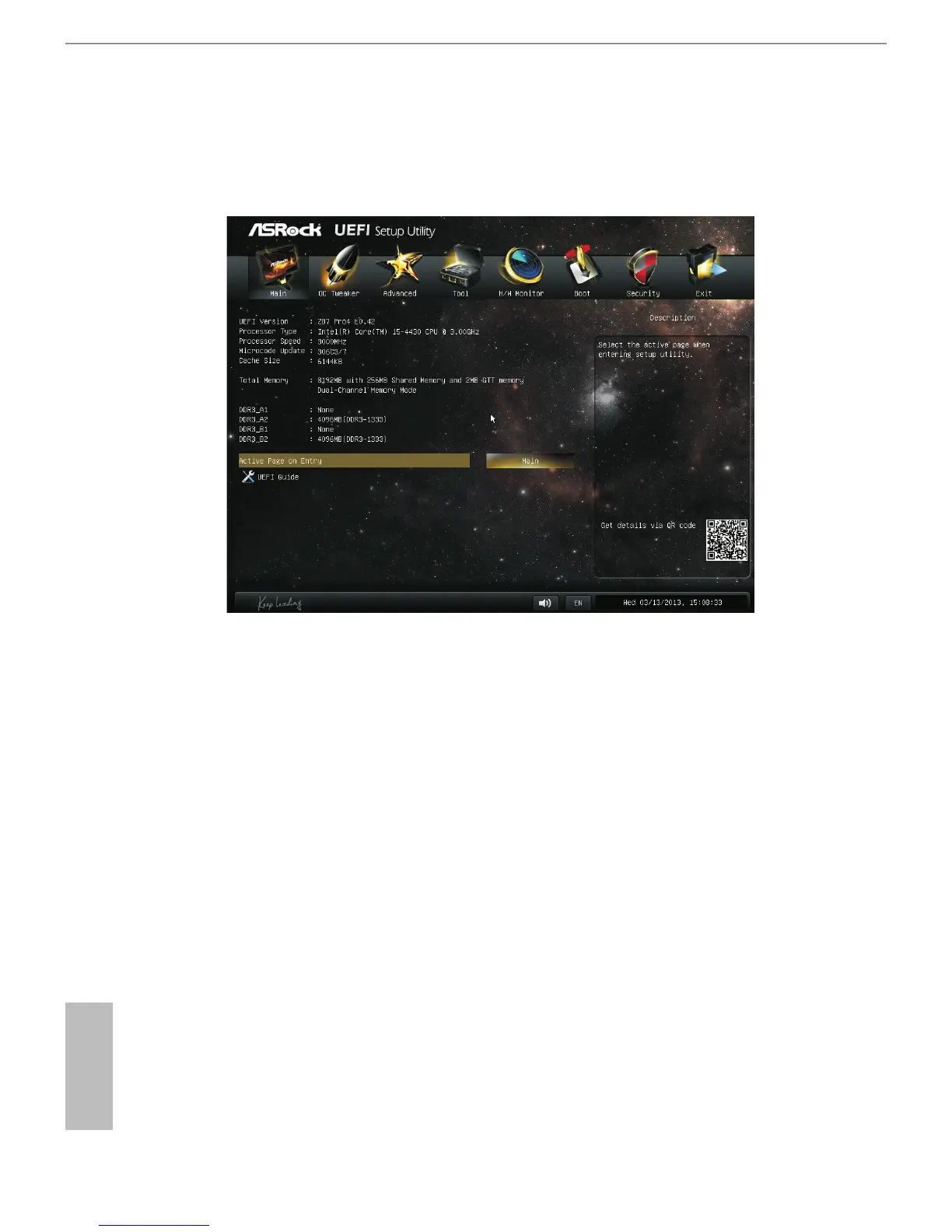

When you enter the UEFI SETUP UTILITY, the Main screen will appear and
display the system overview.
Active Page on Entry
Select the default page when entering the UEFI setup utility.
UEFI Guide
UEFI Guide is a quick tutorial for ASRock's UEFI setup Utility. You may abort the
tutorial by pressing "esc".

ASROCK Z87 Pro4 Specifications

General

ECC	No
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1066, 1200, 1300, 1333, 1500, 1600, 1666, 1800, 1866, 1900, 2000, 2100, 2133, 2200, 2250, 2400, 2450, 2600, 2666, 2800 MHz
Processor socket	LGA 1150 (Socket H3)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Maximum number of SMP processors	1
USB 2.0 connectors	2
Number of SATA III connectors	6
Number of Parallel ATA connectors	0
USB 3.2 Gen 1 (3.1 Gen 1) connectors	3
Headphone outputs	5
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC892
Cooling type	Passive
Certification	FCC, CE, WHQL, ErP/EuP
Component for	PC
Motherboard chipset	Intel® Z87
PC health monitoring	CPU, FAN, Temperature
Audio output channels	7.1 channels
Motherboard form factor	ATX
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA, SATA II, SATA III
Graphics card	HD Graphics
Maximum resolution	1920 x 1200 pixels
Maximum graphics card memory	1792 MB
Parallel processing technology support	2-Way CrossFireX, Quad-GPU CrossFireX
PCI Express slots version	2.0, 3.0
PCI Express configurations	1x4, 1x16
Cables included	SATA
Ethernet interface type	Gigabit Ethernet
BIOS type	EFI AMI
ACPI version	1.1
BIOS memory size	64 Mbit
