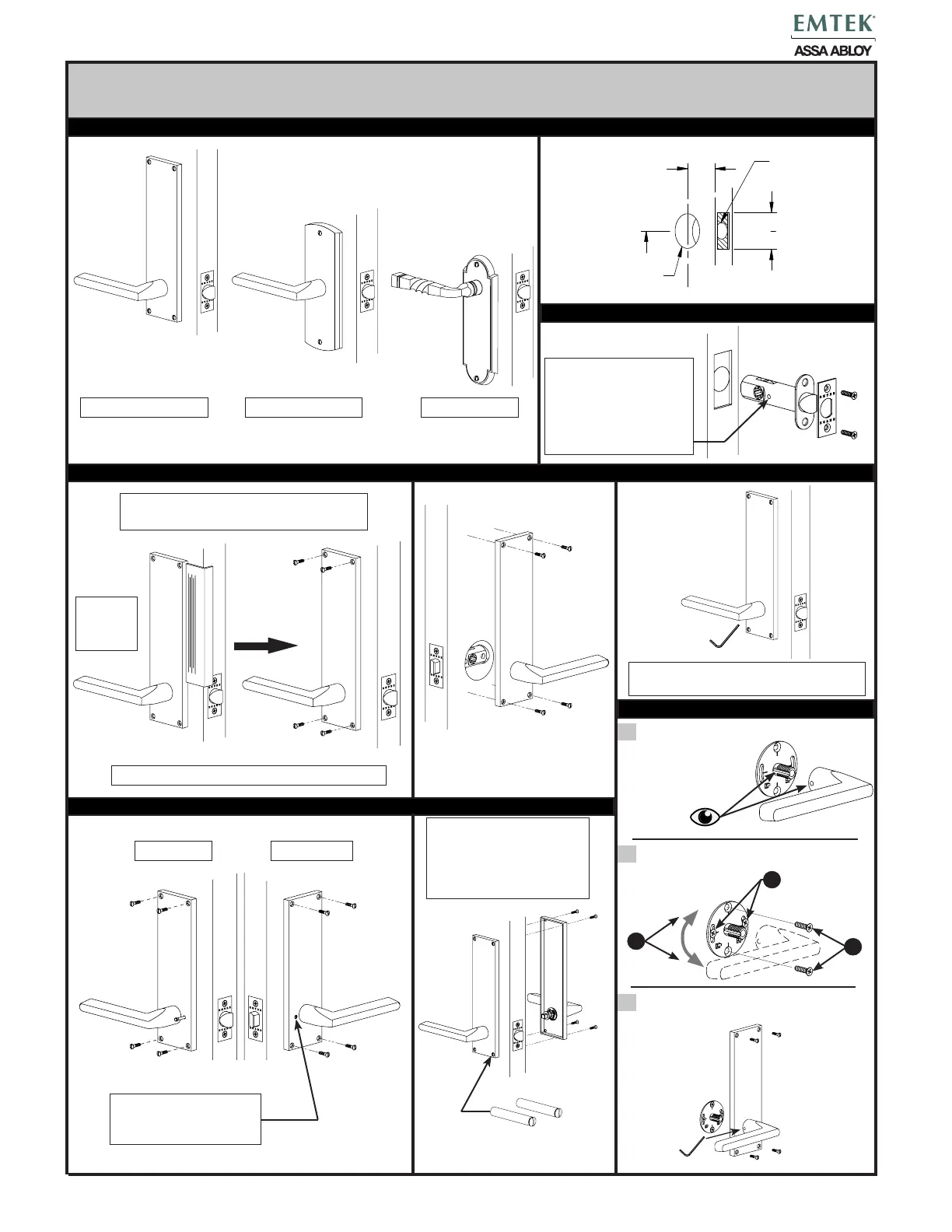

Installation Guide - Non-Keyed plates: Lever
IMPORTANT!: Lever location on the sideplate (Top, middle, bottom) varies depending on style.
Determine proper orientation BEFORE drilling holes.
IN4-NKEYPLTSLVR REV. 19A 11-22-19
2. Door Prep 1. Determine lever location & plate orientation
4. Mount Inside Trim Plate
Edge
Guide
Provided
Plates and lever vary depending on style
6. Tighten Lever
Optional Thru Bolts Privacy Function
3. Install latch
BOTTOM
OutsideInside
MIDDLE TOP
Prior to drilling holes, align side plate
using Edge Guide (provided).
For Privacy function:
Threaded hole for the
privacy pin must face
the interior side of the
door.
2
1
4
"
2-3/8"
or
2-3/4"
1" Dia.
Edge Bores
2-1/8" Dia.
Bores
5. Mount Outside Trim Plate
Thru bolts (provided)
may be used on hollow
doors instead of wood
screws (also provided).
Make sure the release
hole lines up with the
privacy pin.
After lock has been installed tighten
set screw with Allen Wrench.
Align Mounting
plate (sideplate not
shown for clarity)
1
2
3
Install Mounting Plate & Adjust for level
Install Sideplate
Dummy plate
2
3
1
