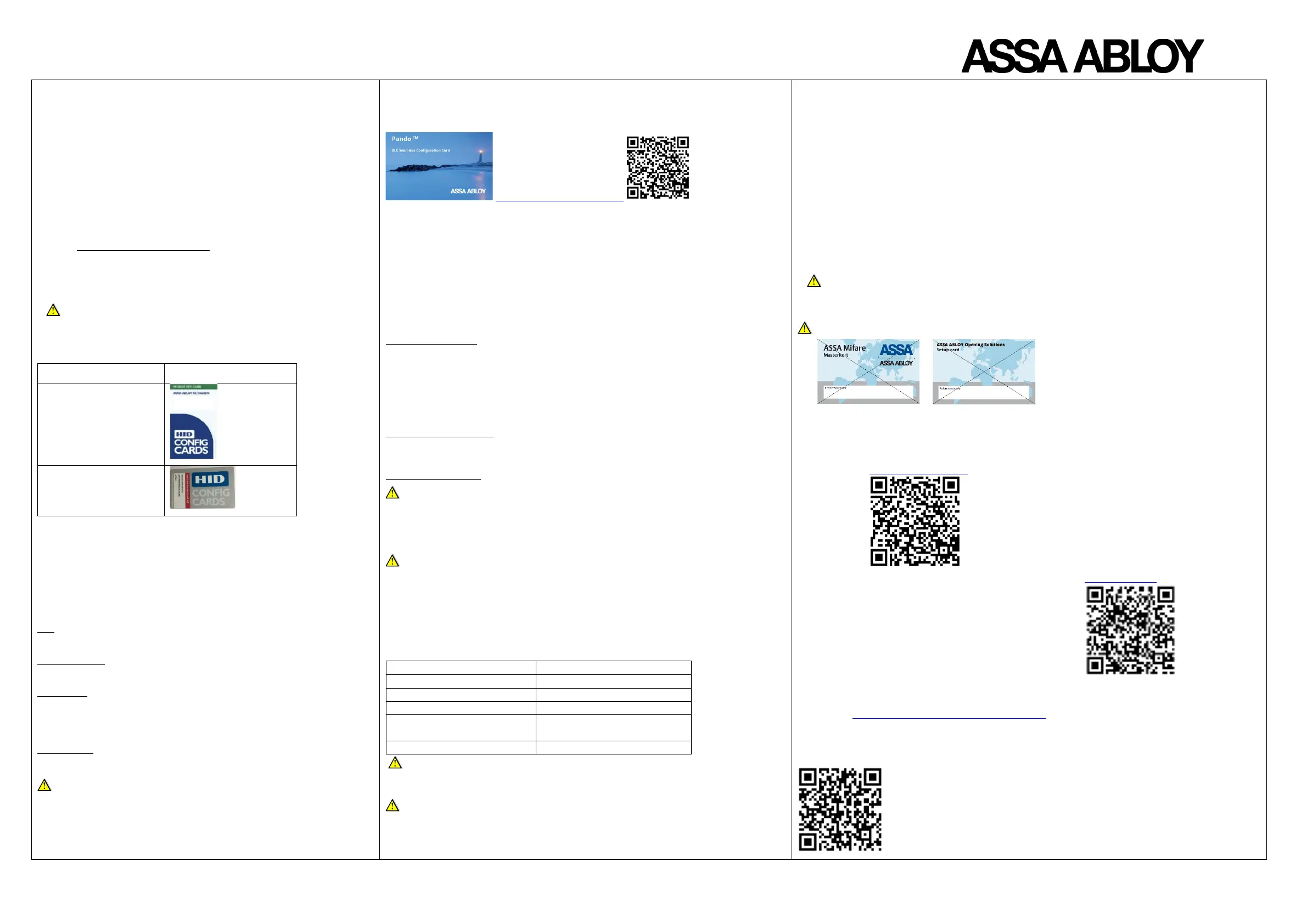

Pando™ Secure Go reader
IS559885940D
Configuration of system keys
(Only the first time a reader is taken into use)
Read the whole instruction before you start with the configuration.
1) Power off and on the reader with the lid open
2) ** Orange indication flashes for 20 seconds
(During orange flashing, configuration cards can be used)
3) Green indicator flashes for 90 seconds
4) Show the Key setup card to the reader before it stops flashing
green
5) Keep the card on the reader for at least 15-20 seconds
The reader will beep with two beeps per second (2Hz)
6) When the reader indicates with a "chirp" the programming of
the keys is complete
** If the reader does not end up in setup mode, point 2 above.
Shadow the reader with your hand at the DIP switch and restart the
reader again.
S559886J085
S559886085
NOTE! If a mobile phone presented for a Pando Secure Go does not have
encryption keys that match those in the reader, it will not send any data.
Mobile phone modes
There are four different modes from the mobile phone that you can
customize for the reader to accept.
Tap: Which means that you touch the BLE reader with the phone in the
same way as a card
* Twist and Go: You turn the phone from side to side to activate the BLE
reader closest to you.
* Seamless: The phone activates the readers closest to you without
having to touch the mobile phone itself, some phones require to be unlocked
for the BLE feature to be activated.
In this mode, DIP function 1 can be
recommended if there are several BLE readers close to each other.
Notification: Enable the BLE reader via smart watch. The mobile phone
must be within reach of both clock and readers.
*
Functions ”Twist and Go” & ”Seamless” must also be enabled in the
Mobile Access application.
Enable and disable features and adjust readers accepted reading distance
For each function / mobile phone mode, you can set whether the function should be
active or not and adjust the distance you want between the mobile phone and the
reader. This is done by using the configuration card.
QR Configuration Card Info.
During the first 20 seconds after power on, you can adjust the function and distance
of the reader. After displaying a configuration card within the first 20 seconds, you
have 30 seconds to display the card again or switch to a another configuration card.
For example, to adjust the "Seamless" reading distance, select the configuration card
labeled
"
BLE Seamless Configuration Card".
Restart the reader and view the card for the reader. Each time the card is displayed to
the reader the reader will beep 1-6 times and the distance changes. The different
functions have different numbers of step
.
1 beep = function off
2 beeps = shortest accepted reading distance, 6 beeps = longest accepted reading distance.
See the configuration card manual for detailed information of each card function and
values. The QR code on the back of the card is a link to the configuration card information
sheet.
Try with a mobile phone that belongs to the system if the correct distance and function has
been achieved for each function
.
The configuration cards are not system-bound and can be used on different systems.
The configuration cards for the different reading methods and reading distances are
ordered separately. All types of configuration cards are included.
Part No: S559688990
When the BLE reader is configured, the distance from the current Pando BLE reader to
the next Pando BLE reader must be taken into account to get the desired function and
the correct door activated by the mobile phone. Select function and distance
according to the current conditions.
Keep in mind that the range of the bluetooth signal may be significantly reduced
when using mobile phone cases. If not the sufficient length is achieved remove the
case.
The Bluetooth range may also vary between different mobile phone manufacturers
and models.
Default values in the reader upon delivery
(Variations between different mobile phone brands may occur)
Notification (Via smart
watch)
The "Notification" features via smart watch does not work without the phone being
within reach of both clock and readers.
Message in App "No reader in range" or
"Twist and Go not supported by reader". See the configuration card manual, scan the
QR code with the mobile.
Configuration of sector reading
1. Power off and on the reader with the lid open
2. ** Orange indicator flash in 20 seconds
3. Green indicator flashes, flash for 90 seconds.
4. Before the green LED stops flashing, show the Setup card to the reader
5. The reader indicates that the programming is finished with a “chirp” and the green
indication is unlit.
6. The reader is now programmed with the encryption keys for the site.
Note! If a card presented to a Pando Secure reader doesn’t have encryption keys corresponding
with the reader the reader will not indicate that anything is wrong and the reader will not send any
data.
** If the reader does not end up in setup mode, point 2 above. Shadow the reader with your
hand at the DIP switch and restart the reader again.
The setup cards below cannot be used for the Pando Secure Go readers
------------------------------------------------------------------------------------------------------------------------------------------------
Information for users with mobile phones as cards, for readers in the Pando GO family
QR Mobil User Guide
QR this manual
Technical documentation and support
We reserve the right to correct printing errors and update the information after printing.
At the website (https://technicalsupport.assaabloyopeningsolutions.se/
) technical support can you find detailed manuals available
for the ARX access control system. If you cannot find answers to your questions in the manuals, we refer to the technical support in
your country.
QR to technical support
