Associated Electrics RC10 B74.2D TEAM KIT - Page 12

12

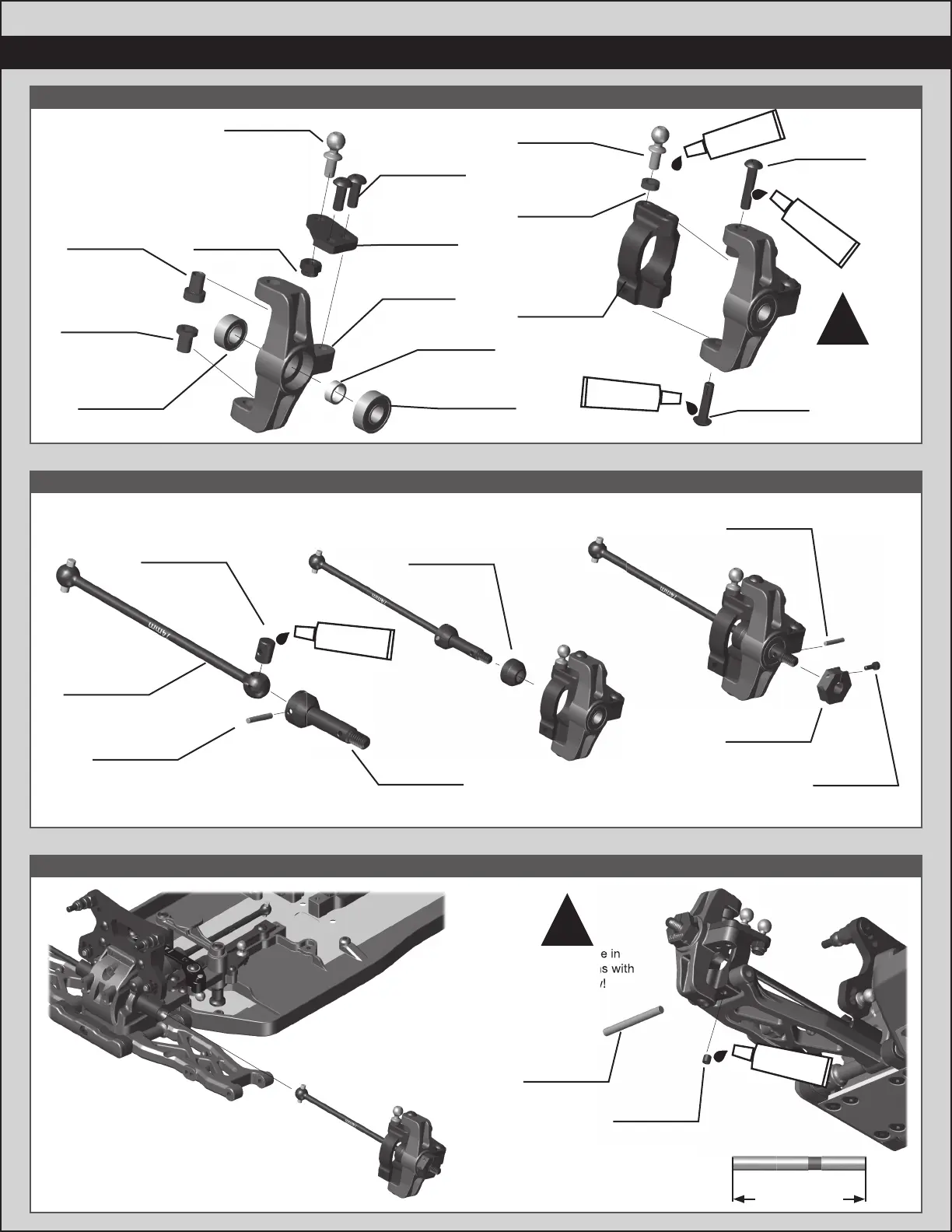

:: :: Bag 7 -Bag 7 - Step 1 Step 1
:: :: Bag 7 -Bag 7 - Step 2 Step 2
:: :: Bag 7 -Bag 7 - Step 3 Step 3
Note, the groove in
the hinge pin aligns with
the set screw!
!
3x30mm
Note, the groove in
the hinge pin aligns with
the set screw!
Thick
Thin
Note, the long screw goes
on the same side as the
thick hat bushing!
!
x2x2
92176
Caster block,
9 degree
91047
6mm
ballstud
91048
8mm
ballstud
91676
Caster hat
bushing,
thick
91676
Caster hat
bushing,
thin
91560
5x10x4mm
bearing
92193
CVA bone,
74mm
91436
Pin
91438
CVA barrel
92263
CVA retainer,
front
91436
Pin
91609
FT clamping
wheel hex,
5.0mm
91609
Wheel hex
screw
31383
2mm
spacer
31532
M3x8mm
BHCS
92272
Steering
block arm
92171
Steering
block
92189
Axle crush
tube, front
91567
5x12x4mm
bearing
92191
CVA axle,
front
25215
M3 locknut
25187
M3x14mm
BHCS
89202
M3x12mm
BHCS
#1596
thread lock
#1596
thread lock
#6588
black grease
#1596
thread lock
Build x2
(1 left side, 1 right side)
Build x2
(1 left side, 1 right side)
92187
3x30mm
hinge pin,
grooved
25225
M3x3mm
set screw
#1596
thread lock
