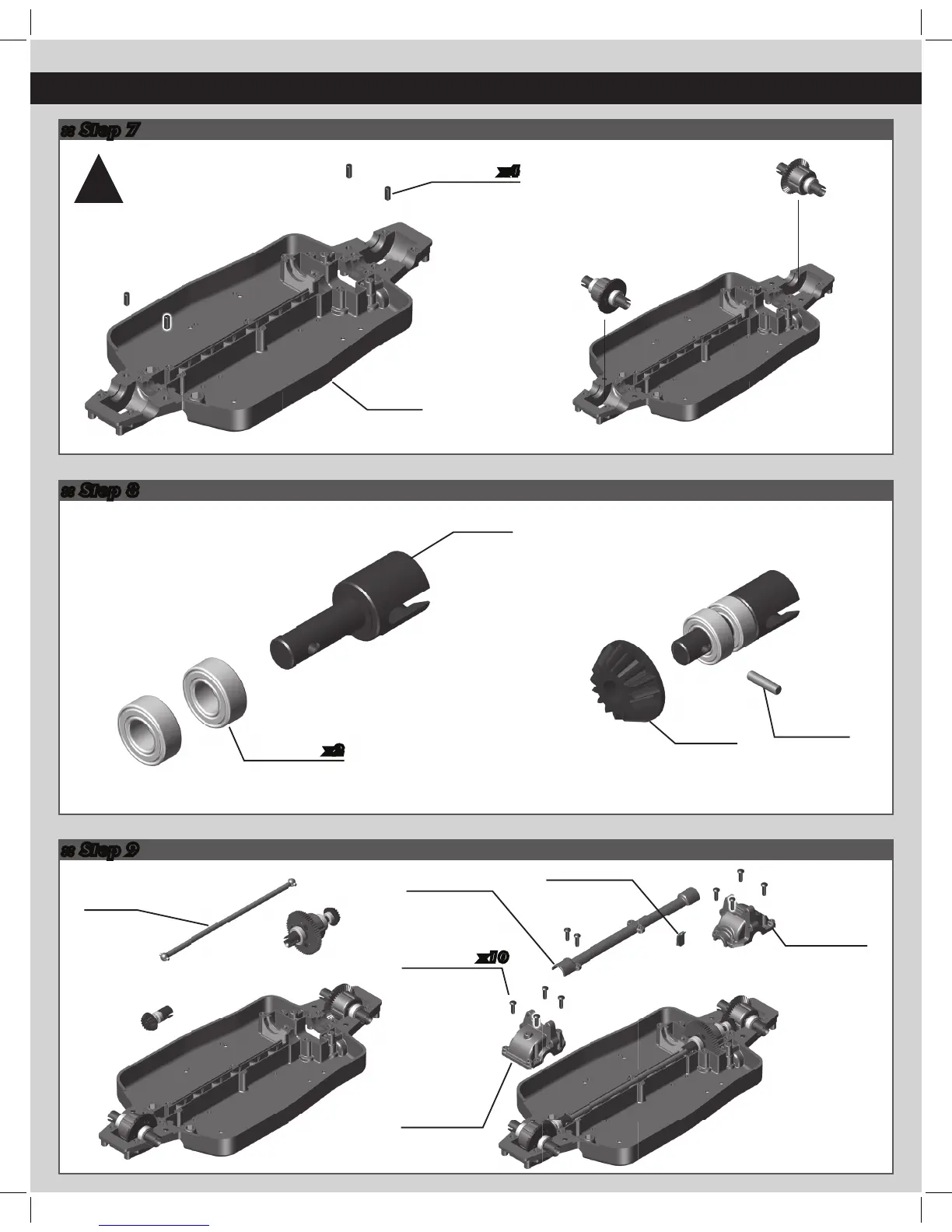

Associated Electrics Reflex 14B - Assembly: Chassis and Drive Shafts; Step 7: Chassis and Set Screw Mounting; Step 8: Center Diff Outdrive and Pinion Gear; Step 9: Drive Shaft and Gear Box Cover Assembly

8
:: Step 9
:: Step 8
:: Step 7
21524
Center
diff
outdrive
x10
x4
x2
21546
M2.6x8mm
BHST
21504
Gear box
cap, front
21504
Drive shaft
cover
21504
Drive shaft
cap
21504
Gear box
cap, rear
4670
3x8mm
set screw
21500
Chassis
21512
4x8x3mm
bearing
21516
Pin
1.5 x 6mm
21520
Drive
shaft
21526
Pinion
gear
(15T)
Top of set screw head
should be flush with
the top of the chassis
!
