24. MAINTENANCE INSTRUCTIONS
Worn clamps and jaws should be replaced. Worn parts can lead to poor connections and present a safety hazard. See parts list for part
number of jaw and clamp kits. Any Maintenance or repair of this unit that involves disassembly of the cabinet should be done only by a
qualified service facility. Incorrect reassembly may result in a risk of electric shock when the unit is subsequently used.
PRODUCT WARRANTY
Associated Equipment Corp. warrants only to the original End User/Purchaser that under normal use, care and service, the Equipment (except as
otherwise provided herein) shall be free from defects in material and workmanship for the Warranty Period of 2 (TWO) YEARS PARTS AND
LABOR, 5 (FIVE) YEARS TRANSFORMER AND RECTIFIER (PARTS ONLY AFTER 2ND YEAR). All Warranty Periods are from the date of
original invoice/purchase (dated sales receipt required). The Associated Equipment Warranty is NOT extended to products, which in Associated
Equipment’s sole judgement, have been misused, abused or modified from their original state.
ASSOCIATED EQUIPMENT’S OBLIGATIONS UNDER THIS WARRANTY ARE LIMITED SOLELY TO THE REPAIR OR, AT SELLER'S OPTION,
REPLACEMENT OF EQUIPMENT OR PARTS WHICH TO SELLER'S SATISFACTION ARE DETERMINED TO BE DEFECTIVE AND WHICH
ARE NECESSARY, IN SELLER'S JUDGEMENT, TO RETURN THE EQUIPMENT TO GOOD OPERATING CONDITION. NO OTHER
WARRANTIES EXPRESS OR IMPLIED OR STATUTORY, INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY AND ALL SUCH WARRANTIES ARE HEREBY
EXPRESSLY DISCLAIMED.
SERVICE CENTERS: For a complete listing of authorized service centers, contact Customer Service or consult the online listing
at www.associatedequip.com. While most products may be serviced by Associated Equipment's authorized service centers, some
products may only be serviced by the factory; contact Customer Service or see the online list.
MERCHANDISE RETURN ADDRESS 5043 FARLIN AVE. ST. LOUIS, MO 63115 ATTN: REPAIR DEPARTMENT

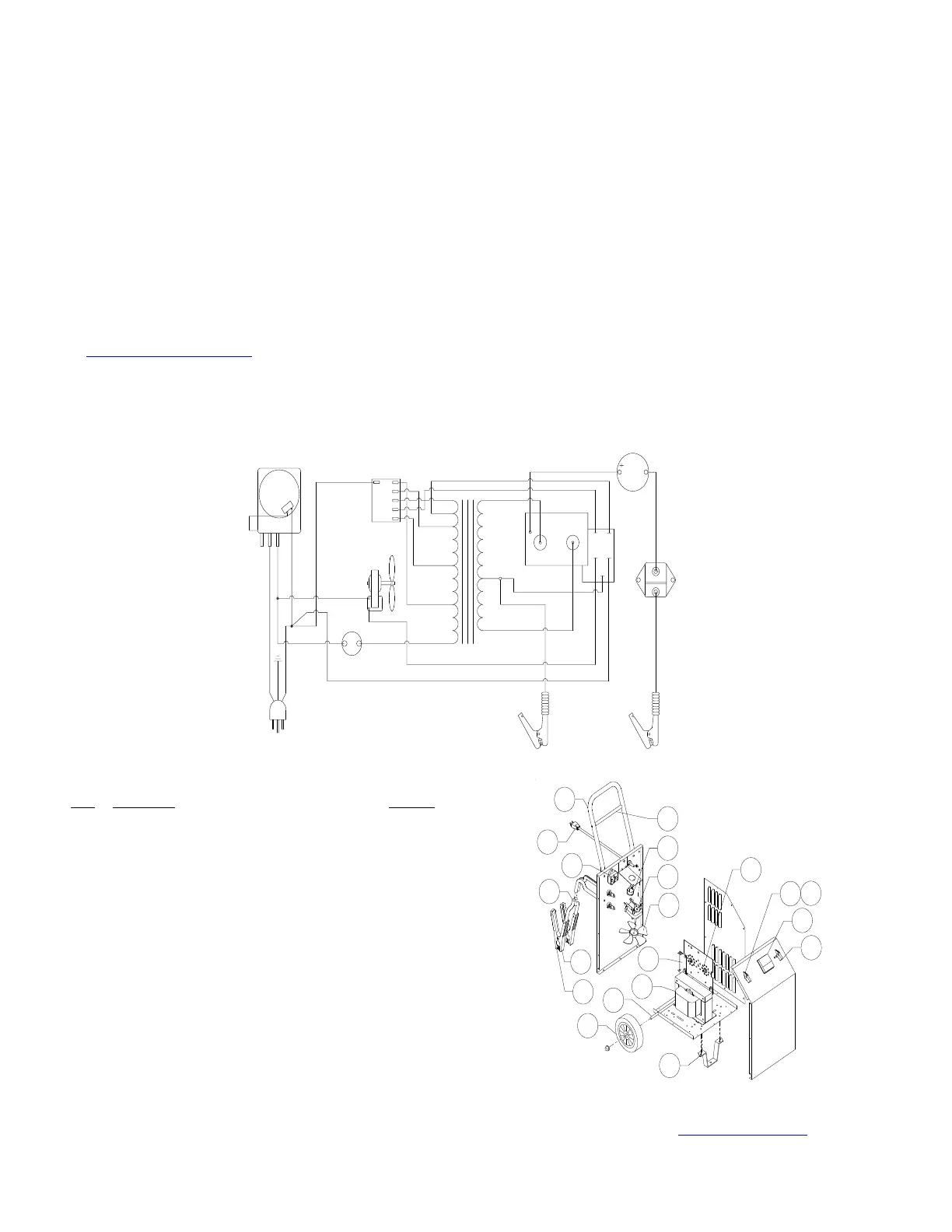

WIRING DIAGRAM
MODEL 6006AGM PARTS LIST
Item Description Part No.
1 Front leg ....................................................................605671
2 Wheels w/nuts ...........................................................605672
3 Axle w/nuts ................................................................610052
4 Transformer ...............................................................610862
5 Rectifier .....................................................................610850
6 Fan Blade ..................................................................610189
7 Fan Motor ..................................................................610190
8 Timer ..........................................................................611245
9 Ammeter ....................................................................605204
10 DC Circuit Breaker ...................................................610536
11 DC Cable set .............................................................611084
12 Handle .......................................................................605213
13 AC Cord .....................................................................611248
14 Switch w/knob ...........................................................611083
15 Clamps (1pair, includes jaws) ....................................... 6202
16 Jaw Kit (repairs 1 clamp) ..........................................610970
17 Pointer Knob ..............................................................603147
18 AC Circuit Breaker ....................................................610397
19 Circuit Board, AGM ...................................................611476
20 Clamp Bar..................................................................610517
