Associated RC10 - Page 15

15

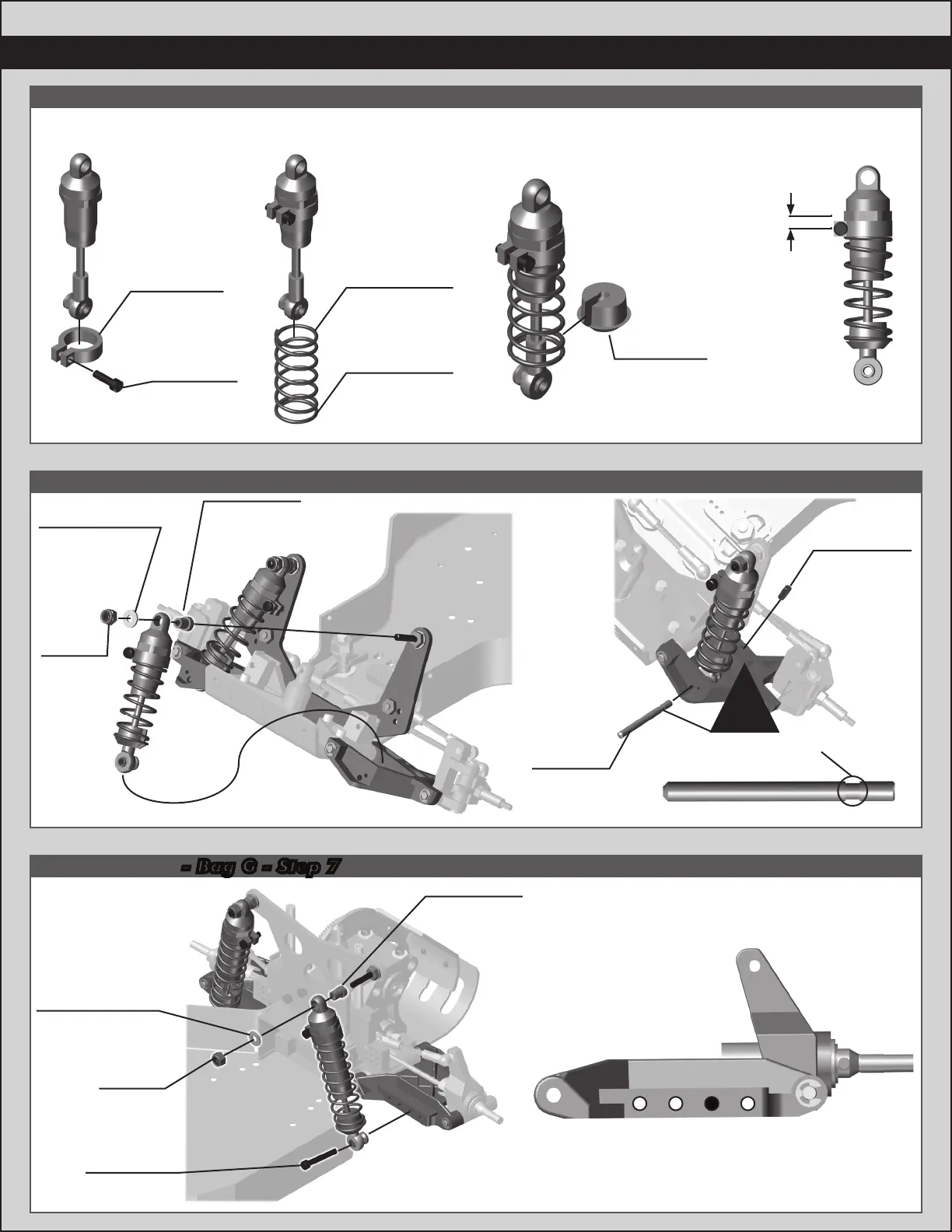

:: :: Shocks Build Shocks Build - Bag G - Bag G - Step 6- Step 6
Lower
shock pin
#4 aluminum
washer
RC10 shock
bushing,
Clear
4-40
locknut
:: :: Shocks Build Shocks Build - Bag G - Step 7
RC10 shock
bushing,
Clear
4-40 x 3/4
SHCS
4-40
locknut
:: :: Shocks Build Shocks Build - Bag G - Bag G - Step 5- Step 5
4-40 x 3/8
SHCS
RC10 shock
collar,
Clear
Front shock
spring, silver
(3.85lb)
Rear shock
spring, silver
(2.10lb)
RC10
spring cup,
Clear
4-40 x 1/8
set screw
Make sure the set
screw engages the
groove on the shock pin!
!
Build left and right sides!
Build left and right sides!
Build left and right sides!
Front:
6.5mm
Rear:
0mm
#4 aluminum
washer
Build two front and two rear!
